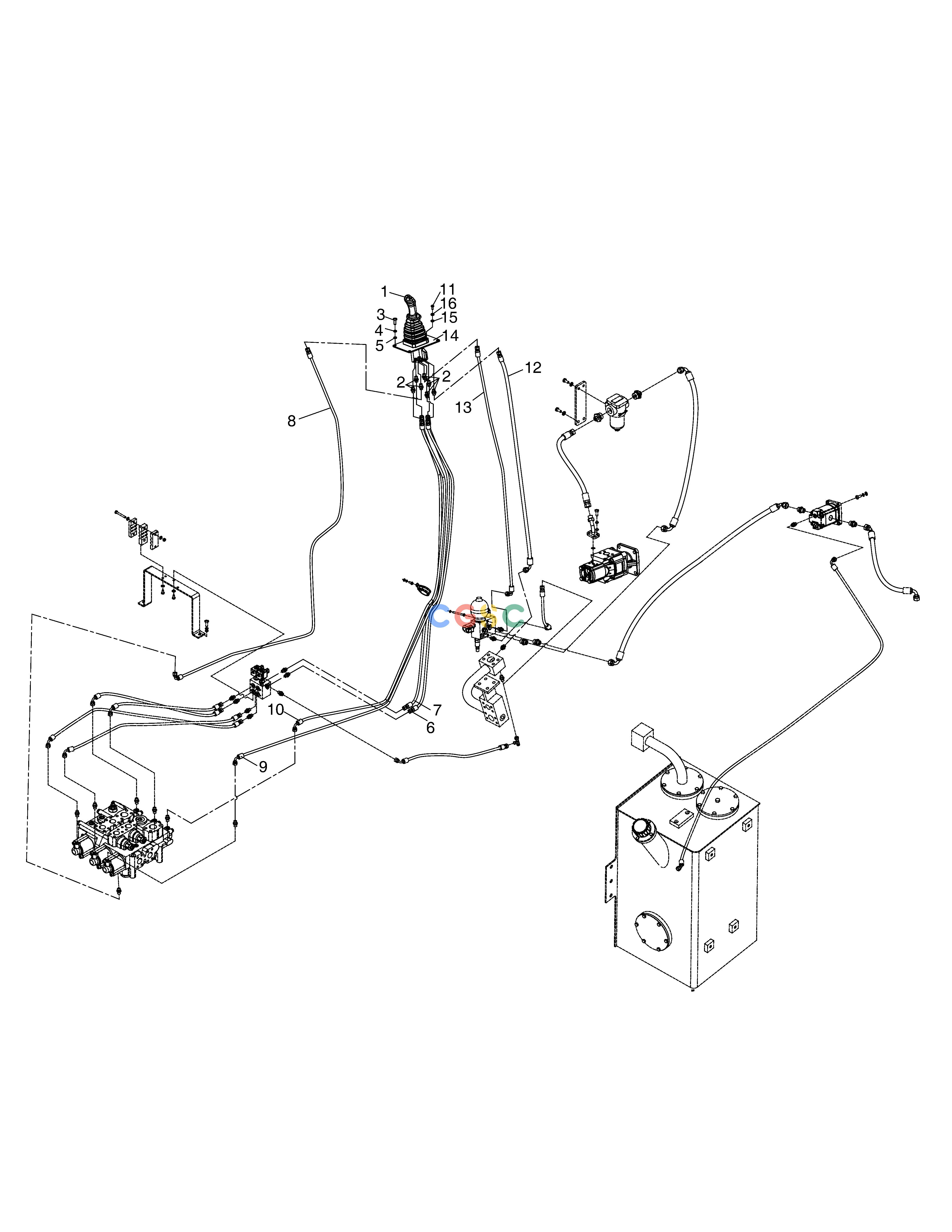

斗山零件查询PILOT PIPING ASSY(1)-3SP-cabin SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
727 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11769
|
[-] |
PIPING
|
|
| -. |
420212-11769A
|
[-] |
PIPING,PILOT
|
|
| 1. |
410120-00044
|
[1] |
VALVE,PILOT
|
|
| 10. |
420107-00042
|
[1] |
HOSE
|
|
| 11. |
S0504653
|
[4] |
. BOLT
|
|
| 12. |
420107-00341
|
[1] |
HOSE,OIL
|
|
| 13. |
420107-00343
|
[1] |
HOSE
|
|
| 14. |
250122-00314A
|
[1] |
PLATE,SUPPORT
|
|
| 15. |
S5010303
|
[4] |
WASHER
|
|
| 16. |
S5102303
|
[4] |
. WASHER
|
|
| 2. |
430201-00556
|
[7] |
ADAPTER
|
|
| 3. |
S0512063
|
[4] |
WASHER
|
|
| 4. |
S5102603
|
[4] |
. WASHER
|
|
| 5. |
S5010603
|
[4] |
WASHER
|
|
| 6. |
420105-01134
|
[1] |
HOSE
|
|
| 7. |
420105-01135
|
[1] |
HOSE
|
|
| 8. |
420107-00340
|
[1] |
HOSE,OIL
|
|
| 9. |
420107-00041
|
[1] |
HOSE
|
|
