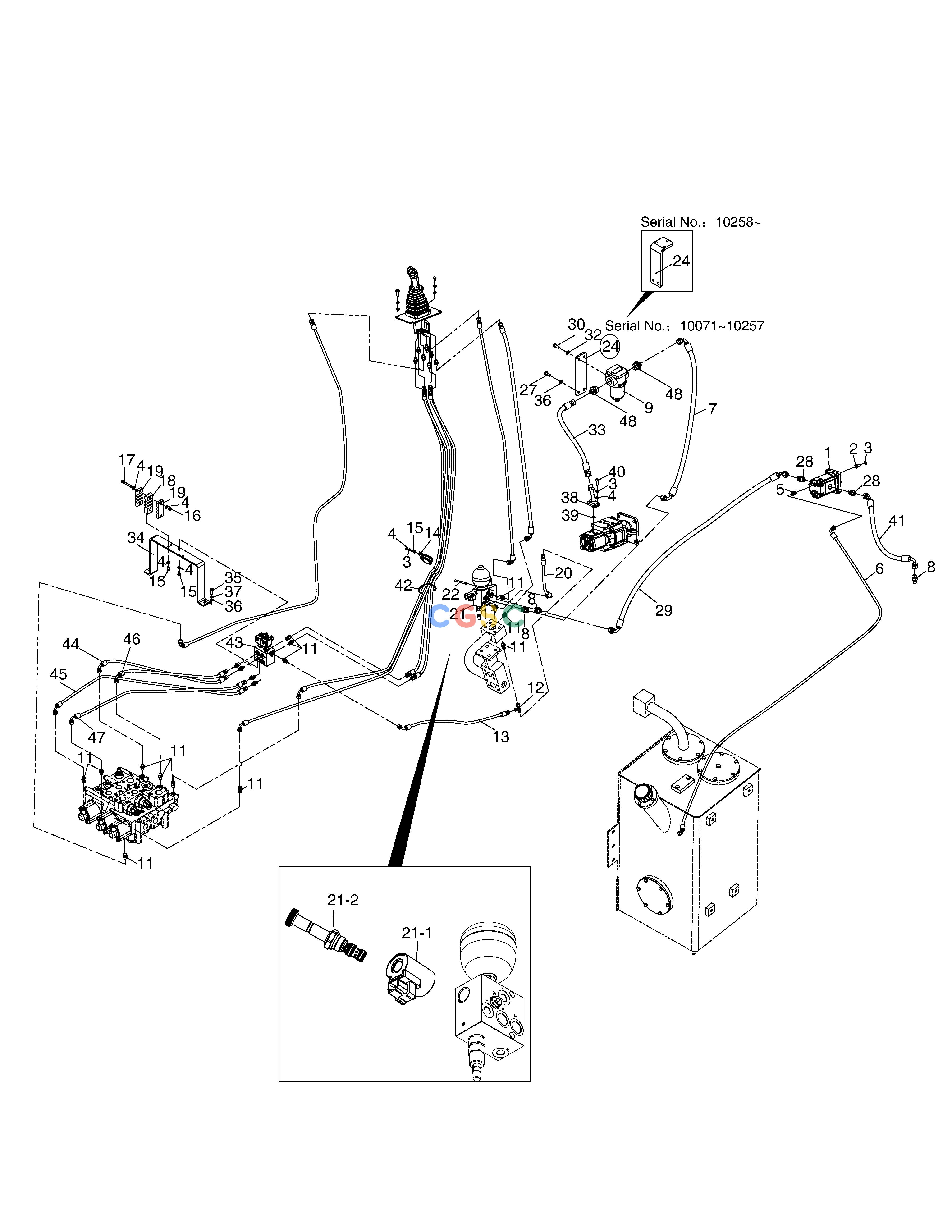

斗山零件查询PILOT PIPING ASSY(2)-3SP-cabin SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
535 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11768A
|
[-] |
|
|
| 1. |
400702-00074
|
[1] |
MOTOR,FAN
|
|
| 11. |
430201-00167
|
[18] |
ADAPTER
|
|
| 12. |
430225-00216
|
[1] |
TEE
|
|
| 13. |
420105-01133
|
[1] |
HOSE
|
|
| 14. |
124-00209D4
|
[1] |
CLIP
|
|
| 15. |
S0508653
|
[3] |
BOLT
|
|
| 16. |
S4012533
|
[2] |
NUT
|
|
| 17. |
S0556653
|
[2] |
BOLT M8X1.25X65
|
|
| 18. |
120202-00003A
|
[1] |
CLAMP,HOSE
|
|
| 19. |
120202-00002
|
[2] |
CLAMP,HOSE
|
|
| 2. |
S0509263
|
[4] |
BOLT
|
|
| 20. |
420107-00245B
|
[1] |
HOSE
|
|
| 21. |
410116-00494E
|
[1] |
VALVE
|
|
| 21. |
410116-00494C
|
[1] |
VALVE
|
410116-00494E
|
| 21-1. |
300715-00138
|
[1] |
. COIL
|
|
| 21-2. |
850424-00102
|
[1] |
. MAGNET
|
|
| 22. |
S2206166
|
[2] |
BOLT
|
|
| 24. |
110436-00256
|
[1] |
BRACKET
|
|
| 24. |
110436-00142A
|
[1] |
BRACKET
|
|
| 27. |
S0515453
|
[2] |
BOLT
|
|
| 28. |
430201-00557
|
[2] |
ADAPTER
|
|
| 29. |
420107-00240
|
[1] |
HOSE
|
|
| 3. |
S5102503
|
[9] |
. WASHER
|
|
| 30. |
S0512063
|
[2] |
WASHER
|
|
| 32. |
S5010603
|
[2] |
WASHER
|
|
| 33. |
420107-00238B
|
[1] |
HOSE
|
|
| 34. |
110436-00213A
|
[1] |
BRACKET
|
|
| 34. |
110436-00213
|
[1] |
BRACKET
|
110436-00213A
|
| 35. |
S0515053
|
[2] |
BOLT M12X1.75X25
|
|
| 36. |
S5010703
|
[4] |
WASHER;PLAIN
|
|
| 37. |
S5102703
|
[2] |
WASHER
|
|
| 38. |
420207-01795B
|
[1] |
PIPE
|
|
| 39. |
DS2851046
|
[1] |
RING,O
|
|
| 4. |
S5010503
|
[11] |
WASHER
|
|
| 40. |
S0509053
|
[4] |
. BOLT
|
|
| 41. |
420107-00242B
|
[1] |
HOSE
|
|
| 42. |
2124-1622D2
|
[2] |
CLIP
|
|
| 43. |
410120-00056
|
[1] |
VALVE,PILOT SUPPLY
|
|
| 44. |
420105-01129
|
[1] |
HOSE
|
|
| 45. |
420105-01130
|
[1] |
HOSE
|
|
| 46. |
420105-01132
|
[1] |
HOSE
|
|
| 47. |
420105-01131
|
[1] |
HOSE
|
|
| 48. |
430201-00180
|
[2] |
ADAPTER
|
|
| 5. |
430201-00556
|
[1] |
ADAPTER
|
|
| 6. |
420107-00241B
|
[1] |
HOSE
|
|
| 7. |
420107-00239A
|
[1] |
HOSE
|
|
| 8. |
430201-00558
|
[3] |
ADAPTER
|
|
| 9. |
400407-00003B
|
[1] |
FILTER,PILOT(HY)
|
|
| 9. |
400407-00013
|
[1] |
FILTER,PILOT(CSP)
|
|
