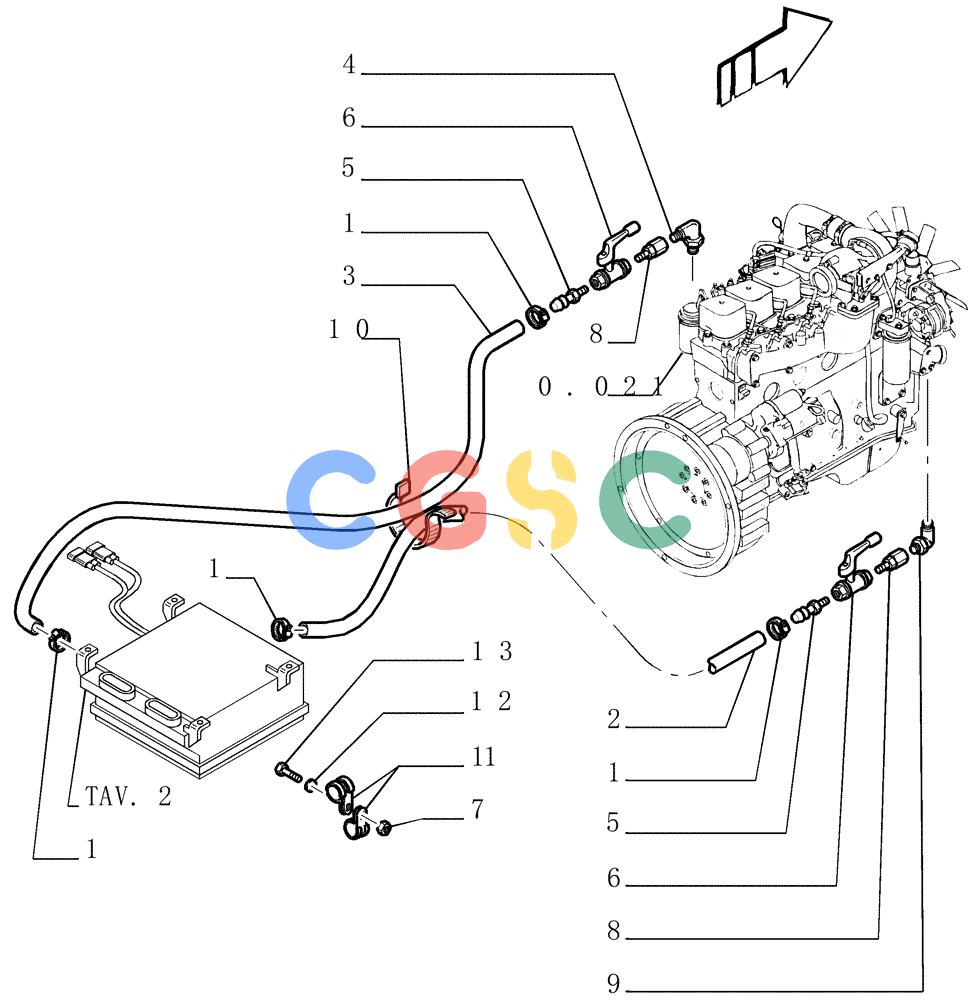

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (5.655[03]) - HEATER - PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
957 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083842 | [4] | HOSE CLAMP,M16-27 | LEC Superseded by part number: 18088392 |
| 2. | 76028405 | [1] | HOSE,18.00 mm ID x 1515.00 mm | LEC Superseded by part number: 78100219 |
| 3. | 76049807 | [1] | HOSE,18.00 mm ID x 2450.00 mm | LEC Superseded by part number: 78100219 |
| 4. | 70922324 | [1] | ELBOW | CMI Superseded by part number: 277165 |
| 5. | 76033090 | [2] | HYD CONNECTOR | LEC |
| 6. | 79044182 | [2] | DRAINCOCK/TAP SUPPLY | LEC |
| 7. | 16100821 | [1] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 8. | 79098222 | [2] | HYD CONNECTOR | LEC |
| 9. | 70919472 | [1] | HYD CONNECTOR | LEC Superseded by part number: 242680 |
| 10. | 4982514 | [3] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 11. | 10450990 | [2] | CLAMP,26mm, Coat, 9mm Bolt Hole, P Type | LEC26 Superseded by part number: 86637977 |
| 12. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 13. | 16043431 | [1] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
