纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (5.655[02]) - HEATER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
646 次

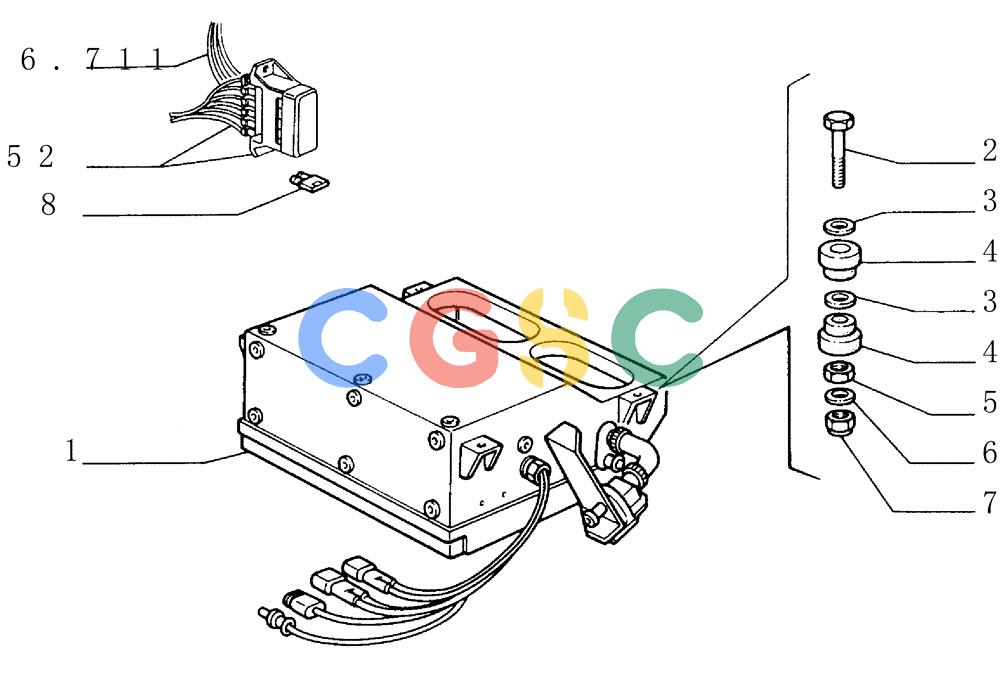

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76027745 | [1] | HEATER | LEC- ASSY SEE TAV.4 |
| 2. | 16040731 | [4] | BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9, Full Thd | LEC8X50 Superseded by part number: 87015731 |
| 3. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 4. | 79089658 | [8] | PAD | BHB |
| 5. | 79106519 | [4] | NUT | LEC |
| 6. | 12645031 | [4] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 7. | 16104121 | [4] | NUT,M8 x 1.25, Cl 10 | LEC Superseded by part number: 17152821 |
| 8. | 9804895 | [1] | FUSE,20A, Micro, Yellow | NH |
