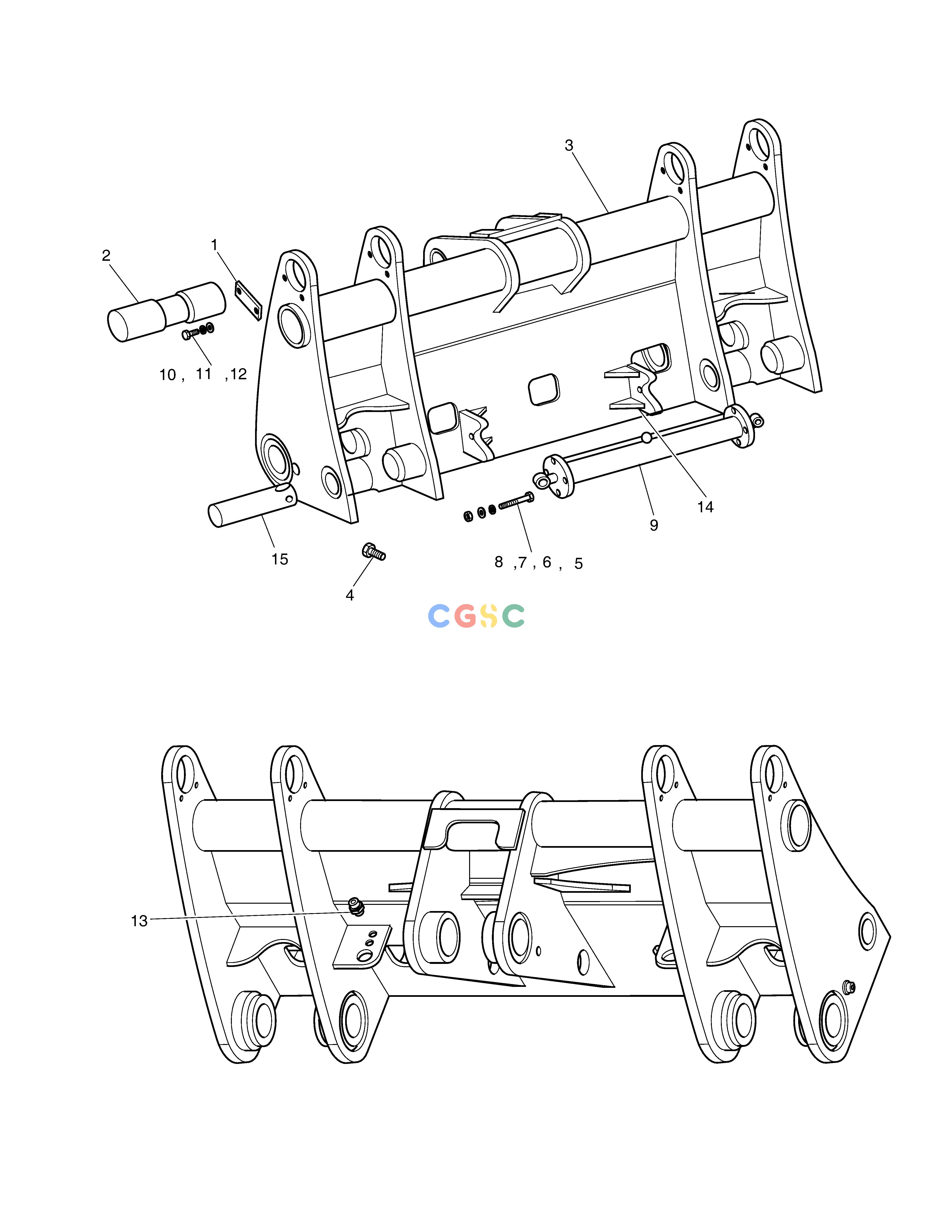

斗山零件查询QUICK COUPLER SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
369 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
270201-00004
|
[1] |
COUPLER,QUICK
|
|
| 1. |
250201-03362
|
[2] |
PLATE
|
|
| 10. |
S5102606
|
[4] |
WASHER,SPRING
|
|
| 11. |
S5010616
|
[4] |
WASHER
|
|
| 12. |
S0558166
|
[4] |
BOLT
|
|
| 13. |
430216-00413
|
[2] |
JOINT
|
|
| 14. |
430216-00414
|
[2] |
JOINT
|
|
| 15. |
120501-03255
|
[2] |
PIN
|
|
| 2. |
130712-01739
|
[2] |
SHAFT
|
|
| 3. |
110406-03512
|
[1] |
BRACKET
|
|
| 4. |
S0569866
|
[2] |
BOLT M20X2.5X50
|
|
| 5. |
S5102705
|
[6] |
WASHER,SPRING
|
|
| 6. |
S4012762
|
[6] |
NUT M12X1.25
|
|
| 7. |
S5010713
|
[6] |
WASHER;PLAIN
|
|
| 8. |
S0560866
|
[6] |
BOLT
|
|
| 9. |
400323-00394
|
[1] |
CYLINDER
|
|
