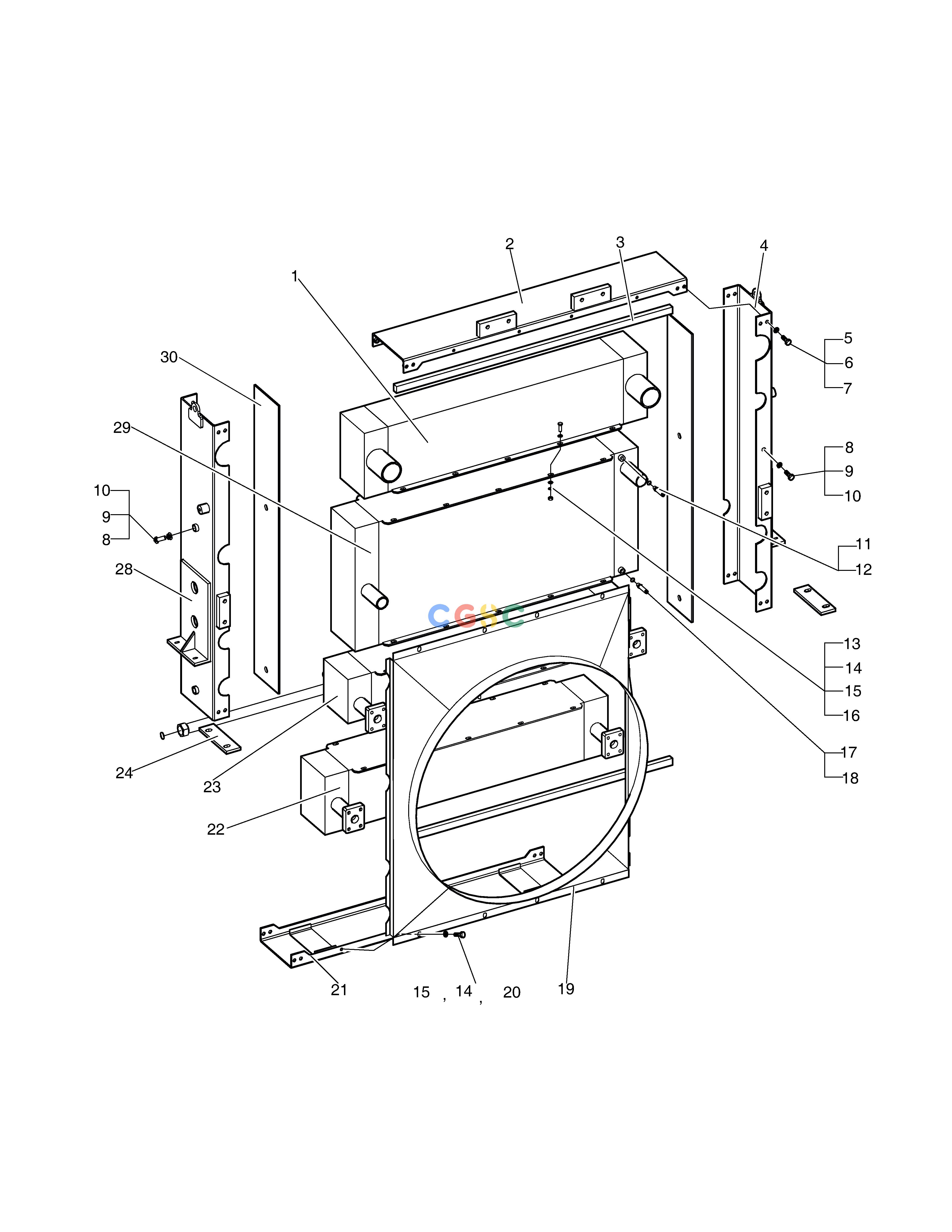

斗山零件查询RADIATOR-TROPICAL SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
813 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440211-00444B
|
[1] |
RADIATOR GROUP
|
440211-00444C
|
| 1. |
440301-00035
|
[1] |
CHARGE,AIR COOLER
|
|
| 10. |
120808-00628
|
[6] |
WASHER 12
|
|
| 11. |
300101-00276
|
[1] |
CELL ASSY;PERMEABILITY
|
|
| 12. |
120808-00708
|
[1] |
WASHER,SEAL 10
|
|
| 13. |
120106-00466
|
[30] |
BOLT
|
|
| 14. |
S5102506
|
[38] |
WASHER,SPRING
|
|
| 15. |
120808-00629
|
[68] |
WASHER 8
|
|
| 16. |
120312-00414
|
[30] |
NUT
|
|
| 17. |
300101-00277
|
[1] |
CELL ASSY;PERMEABILITY
|
|
| 18. |
120808-00709
|
[1] |
WASHER,SEAL 12
|
|
| 19. |
110921-02284
|
[1] |
GUARD,FAN
|
|
| 2. |
110508-13505
|
[1] |
COVER ASSY;TOP
|
|
| 20. |
120106-00467
|
[8] |
BOLT
|
|
| 21. |
110508-13506
|
[1] |
COVER ASSY;LOWER
|
|
| 22. |
130901-00041
|
[1] |
COOLER,TORQUE CONVERTER
|
|
| 23. |
400206-00447A
|
[1] |
COOLER ASSY,OIL
|
|
| 24. |
180308-00429
|
[2] |
RUBBER
|
|
| 28. |
250111-00344
|
[1] |
PLATE ASSY,SIDE;LEFT
|
|
| 29. |
440211-00494
|
[1] |
RADIATOR;WATER
|
|
| 3. |
180309-00186
|
[2] |
SPONGE
|
|
| 30. |
180308-00428
|
[2] |
RUBBER
|
|
| 4. |
250111-00343
|
[1] |
PLATE ASSY,SIDE;RIGHT
|
|
| 5. |
120106-00132
|
[16] |
BOLT;A612731
|
|
| 6. |
120808-00624
|
[16] |
WASHER;SPRING
|
|
| 7. |
120808-00627
|
[16] |
WASHER 10
|
|
| 8. |
120106-00465
|
[6] |
BOLT
|
|
| 9. |
120808-00625
|
[6] |
WASHER;SPRING
|
|
