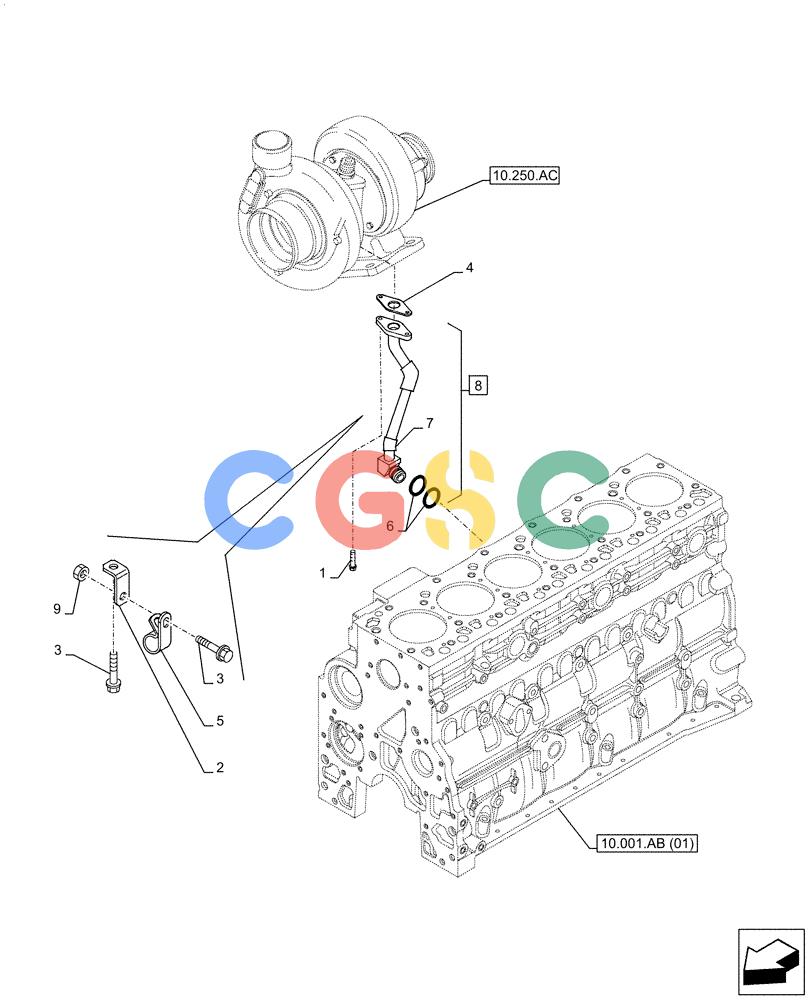

神钢零件查询(F4HFE6137 B003) - ENGINE 5801925169 47748446 TC 5.80 TIER 4B (1/12-) (10.250.AE) - TURBOCHARGER, RETURN, LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
254 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899079 | [2] | SCREW,Hex Flg, M8 x 1.25 x 25 | TOR |
| 2. | 2852390 | [1] | BRACKET | TOR Superseded by part number: 98459285 |
| 2. | 98459285 | [1] | BRACKET | TOR Superseded by part number: 2852390 |
| 3. | 2852100 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 16mm | TOR Superseded by part number: 16586225 |
| 3. | 16586225 | [2] | BOLT,M8 x 16mm | TOR |
| 4. | 4891288 | [1] | GASKET,0.8mm Thk | TOR |
| 5. | 4896893 | [1] | CLAMP,20mm W | TOR |
| 6. | 17281881 | [2] | O-RING,0.674" ID x 0.88" OD x 0.103" | TOR Superseded by part number: 5135738 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPipe, Incl in 8 |
| 9. | 2852389 | [1] | FLANGE NUT | TOR Superseded by part number: 17044725 |
| 9. | 17044725 | [1] | NUT,Hex, M8 | TOR Superseded by part number: 2852389 |
