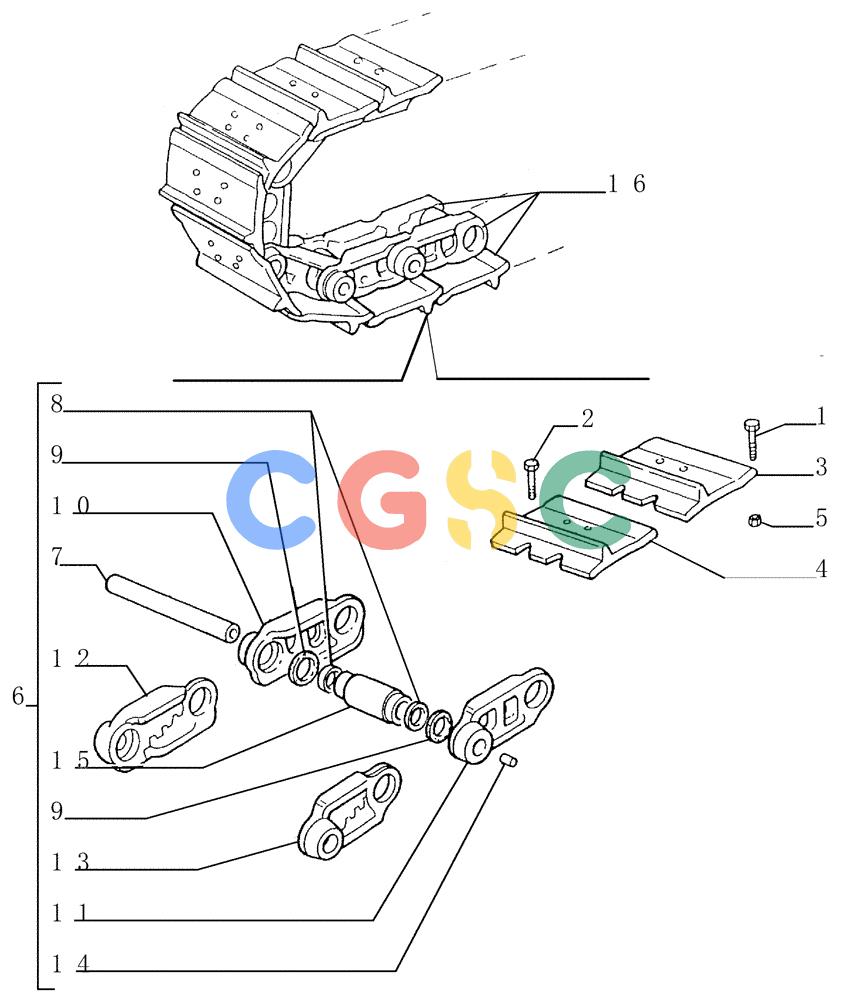

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.348[01]) - SALT TRACK CHAIN - SHOES (ASIMM.53) - OPTIONAL CODE 76038264 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
743 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76030015 | [168] | FLANGE BOLT,Hex, M18 x 1.5 x 55mm, Cl 12.9 | LEC Superseded by part number: 79039443 |
| 2. | 76030016 | [4] | FLANGE BOLT,Hex, M18 x 1.5 x 95mm, Cl 12.9 | LEC Superseded by part number: 79039444 |
| 3. | 76033277 | [42] | TRACK SHOE | LEC- RIGHT |
| 3. | 76033278 | [42] | TRACK SHOE | LEC- LEFT |
| 4. | 76033281 | [1] | TRACK SHOE | LEC- RIGHT SPLIT |
| 4. | 76033282 | [1] | TRACK SHOE | LEC- LEFT SPLIT |
| 5. | 76030017 | [168] | SQUARE NUT | LEC Superseded by part number: 79039445 |
| 6. | 76028761 | [2] | TRACK ASSY | LEC- ASSY |
| 7. | 79039482 | [43] | PIN | LEC |
| 8. | 79039493 | [86] | SPACER,37.25mm ID x 41.7mm OD x 9.3mm L | LEC |
| 9. | 79082288 | [86] | SEAL | LEC |
| 10. | 79039432 | [42] | TRACK LINK | LEC- RIGHT |
| 11. | 79039433 | [42] | TRACK LINK | LEC- LEFT |
| 12. | 79082285 | [1] | CONNECTING LINK | LEC- RIGHT SPLIT |
| 12. | 79083794 | [1] | CONNECTING LINK | LEC- RIGHT SPLIT IN ALTERNATIVE Superseded by part number: 79082285 |
| 13. | 79083803 | [1] | CONNECTING LINK | LEC- LEFT SPLIT IN ALTERNATIVE Superseded by part number: 79082286 |
| 13. | 79082286 | [1] | CONNECTING LINK | LEC- LEFT SPLIT |
| 14. | 79082287 | [43] | PLUG | LEC |
| 15. | 79039483 | [43] | BUSHING | LEC |
| 16. | 76041127 | [1] | TRACK ASSY | LEC- RIGHT WITH SHOES Superseded by part number: 76033281, 76033277, 76030016, 76028761 |
| 16. | 76041128 | [1] | TRACK ASSY | LEC- LEFT WITH SHOES Superseded by part number: 76033282, 76030016, 76033278, 76028761 |
