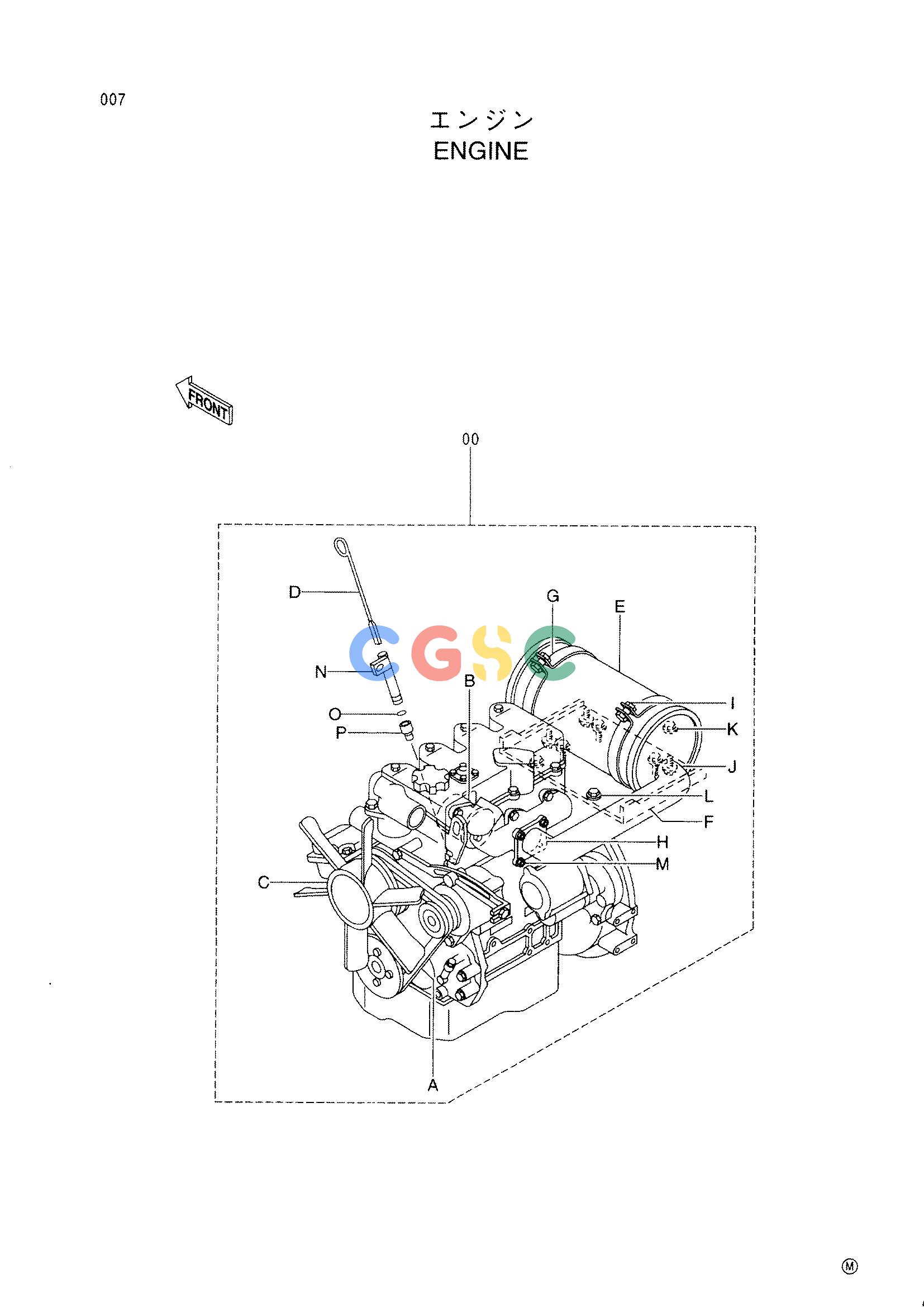

日立零件查询（CC150CW）ENGINE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
628 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425624 | [1] | ENGINE | |
| 00A. | 425710 | [1] | BELT;FAN | |
| 00B. | 948404 | [1] | FILTER;OIL | |
| 00C. | 425711 | [1] | FAN | |
| 00D. | 425712 | [1] | GAUGE | |
| 00E. | 425716 | [1] | MUFFLER | |
| 00F. | 425717 | [1] | BRACKET | |
| 00G. | 425525 | [2] | BAND | |
| 00H. | 425718 | [1] | GASKET | |
| 00I. | 425526 | [2] | BOLT;FLANGE | |
| 00J. | 425527 | [4] | BOLT;FLANGE | |
| 00K. | 425528 | [4] | NUT;FLANGE | |
| 00L. | 425719 | [4] | BOLT;FLANGE | |
| 00M. | 425529 | [4] | NUT;FLANGE | |
| 00N. | 425713 | [1] | GUIDE | |
| 00O. | 425714 | [1] | O-RING | |
| 00P. | 425715 | [1] | NIPPLE | |
