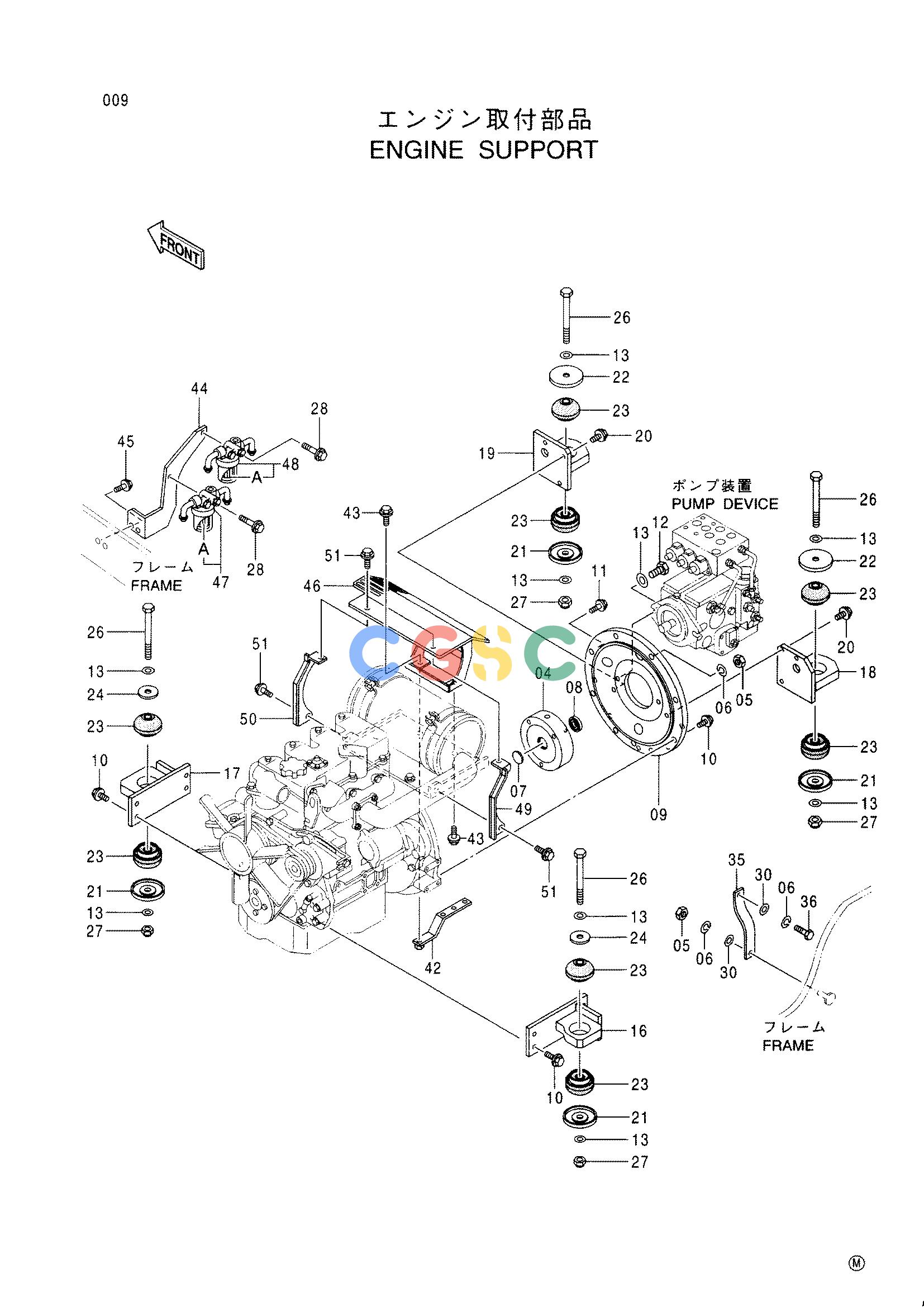

日立零件查询（CC150CW）ENGINE SUPPORT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
161 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 04. | 425523 | [1] | COUPLING | |
| 05. | 570006 | [3] | NUT | |
| 06. | 947887 | [4] | WASHER;SPRING | |
| 07. | 425546 | [1] | PLUG | |
| 08. | 425483 | [1] | SEAL;OIL | |
| 09. | 425563 | [1] | COVER;PUMP | |
| 10. | 500029 | [13] | BOLT;SEMS | |
| 11. | 500161 | [1] | BOLT;SEMS | |
| 12. | 500193 | [2] | BOLT | |
| 13. | 424195 | [10] | WASHER | |
| 16. | 425776 | [1] | BRACKET | |
| 17. | 425774 | [1] | BRACKET | |
| 18. | 425777 | [1] | BRACKET | |
| 19. | 425778 | [1] | BRACKET | |
| 20. | 500028 | [6] | BOLT;SEMS | |
| 21. | 425535 | [4] | STOPPER | |
| 22. | 425489 | [2] | STOPPER | |
| 23. | 425508 | [8] | RUBBER | |
| 24. | 436029 | [2] | PLATE | |
| 26. | 500267 | [4] | BOLT | |
| 27. | 438210 | [4] | NUT;U | |
| 28. | 439832 | [2] | BOLT;SEMS | |
| 30. | 947324 | [2] | WASHER;PLANE | |
| 35. | 425496 | [1] | AERTH;CODE | |
| 36. | 500043 | [1] | BOLT | |
| 42. | 425815 | [1] | BRACKET | |
| 43. | 947623 | [2] | BOLT;SEMS | |
| 44. | 425795 | [1] | BRACKET | |
| 45. | 500028 | [2] | BOLT;SEMS | |
| 46. | 425796 | [1] | COVER | |
| 47. | 425517 | [1] | FILTER | |
| 47A. | 425441 | [1] | ELEMENT;FILTER | |
| 48. | 425512 | [1] | FILTER;FUEL | |
| 48A. | 425440 | [1] | ELEMENT;FILTER | |
| 49. | 425817 | [1] | BRACKET | |
| 50. | 425816 | [1] | BRACKET | |
| 51. | 747621 | [4] | BOLT;SEMS | |
