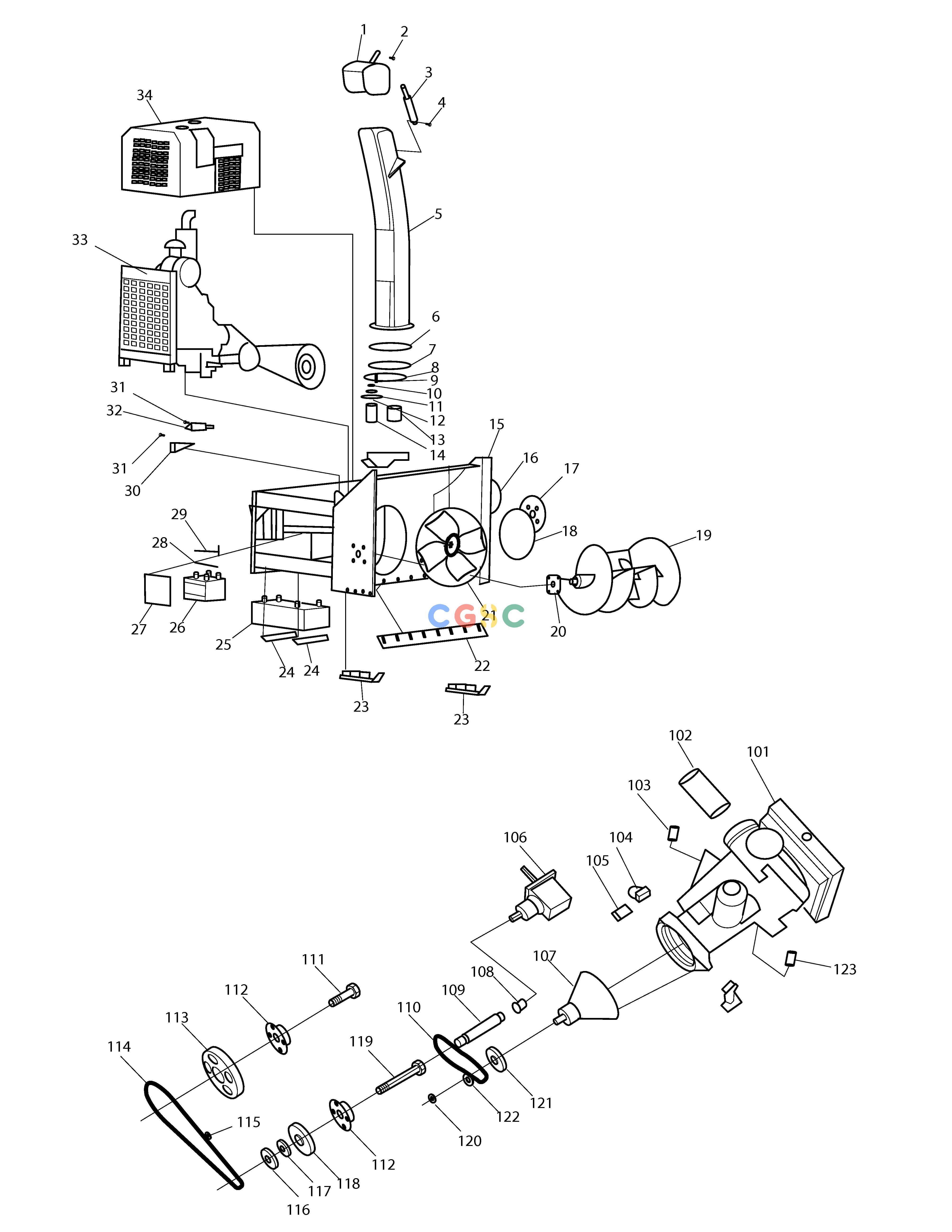

斗山零件查询SNOW BLOWER-SELF POWERED&SINGLE SHAFT SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230101-00266
|
[1] |
SNOW BLOWER
|
|
| 1. |
110508-20611
|
[1] |
COVER,TOP
|
|
| 10. |
250201-03305
|
[1] |
PLATE
|
|
| 101. |
150109-01395
|
[1] |
ENGINE
|
|
| 102. |
110406-03451
|
[2] |
BRACKET
|
|
| 103. |
180301-00035
|
[4] |
ABSORBER
|
|
| 104. |
110913-00329
|
[1] |
CASE,GEAR BOX
|
|
| 105. |
130105-00046
|
[1] |
CLUTCH
|
|
| 106. |
131002-00779
|
[1] |
BUSHING
|
|
| 107. |
101592-00007
|
[1] |
FORK,JOINT
|
|
| 108. |
130301-00583
|
[4] |
CHAIN
|
|
| 109. |
140105-00812
|
[1] |
BEARING,CONNECTING
|
|
| 11. |
200108-00247
|
[1] |
SPROCKET
|
|
| 110. |
250201-03309
|
[2] |
PLATE
|
|
| 111. |
401106-00407
|
[2] |
SEAL,OIL
|
|
| 112. |
140105-00813
|
[2] |
BEARING
|
|
| 113. |
110909-00065
|
[2] |
CAGE,BEARING
|
|
| 114. |
401106-00408
|
[2] |
SEAL,OIL
|
|
| 115. |
200108-00248
|
[1] |
SPROCKET
|
|
| 116. |
130301-00584
|
[1] |
CHAIN
|
|
| 117. |
130206-00020
|
[2] |
TENSIONER
|
|
| 118. |
130712-01705
|
[1] |
SHAFT
|
|
| 119. |
200108-00249
|
[8] |
SPROCKET
|
|
| 12. |
400701-00008
|
[1] |
PLATE,MOTOR
|
|
| 120. |
200108-00250
|
[1] |
SPROCKET
|
|
| 121. |
140105-00814
|
[1] |
BEARING,CONNECTING
|
|
| 122. |
250201-03310
|
[1] |
PLATE
|
|
| 123. |
200108-00251
|
[1] |
SPROCKET
|
|
| 13. |
410105-01115
|
[1] |
VALVE,CONTROL
|
|
| 14. |
300506-00400
|
[1] |
MOTOR
|
|
| 15. |
110913-00328
|
[1] |
CASE;SNOW
|
|
| 16. |
250201-03306
|
[2] |
PLATE,COVER
|
|
| 17. |
140201-00077
|
[1] |
CASE,BEARING
|
|
| 18. |
250201-03307
|
[1] |
PLATE,COVER
|
|
| 19. |
850224-00143
|
[3] |
REAMER
|
|
| 2. |
140105-00810
|
[1] |
BEARING,CONNECTING
|
|
| 20. |
130712-01704
|
[1] |
SHAFT
|
|
| 21. |
101503-00035
|
[1] |
BELL
|
|
| 22. |
130113-00043
|
[1] |
PLATE,FRICTION
|
|
| 23. |
101534-00425
|
[2] |
LEG
|
|
| 24. |
110958-03033
|
[2] |
SUPPORT,ANGLE
|
|
| 25. |
450103-00590
|
[1] |
TANK,FUEL
|
|
| 26. |
301207-00008
|
[2] |
RELAY,BATTERY
|
|
| 27. |
250201-03308
|
[1] |
PLATE
|
|
| 28. |
180204-00134
|
[1] |
RUBBER,SUPPORT
|
|
| 29. |
250203-00055
|
[1] |
CATCHER,PRESSURE
|
|
| 3. |
400319-00534
|
[1] |
CYLINDER ASSY,HYDRAULIC
|
|
| 30. |
250117-00139
|
[1] |
PLATE,FIXED
|
|
| 31. |
120501-03206
|
[2] |
PIN
|
|
| 32. |
400323-00389
|
[1] |
CYLINDER
|
|
| 33. |
400819-00026
|
[1] |
UNIT,POWER
|
|
| 34. |
110506-00268
|
[1] |
COVER,ENGINE
|
|
| 4. |
140105-00811
|
[1] |
BEARING,CONNECTING
|
|
| 5. |
420202-00404
|
[1] |
PIPE,CONNECTION
|
|
| 6. |
200108-00246
|
[1] |
SPROCKET
|
|
| 7. |
130301-00582
|
[1] |
CHAIN
|
|
| 8. |
930202-00017
|
[1] |
PARTITION
|
|
| 9. |
102203-00096
|
[1] |
SHIELD
|
|
