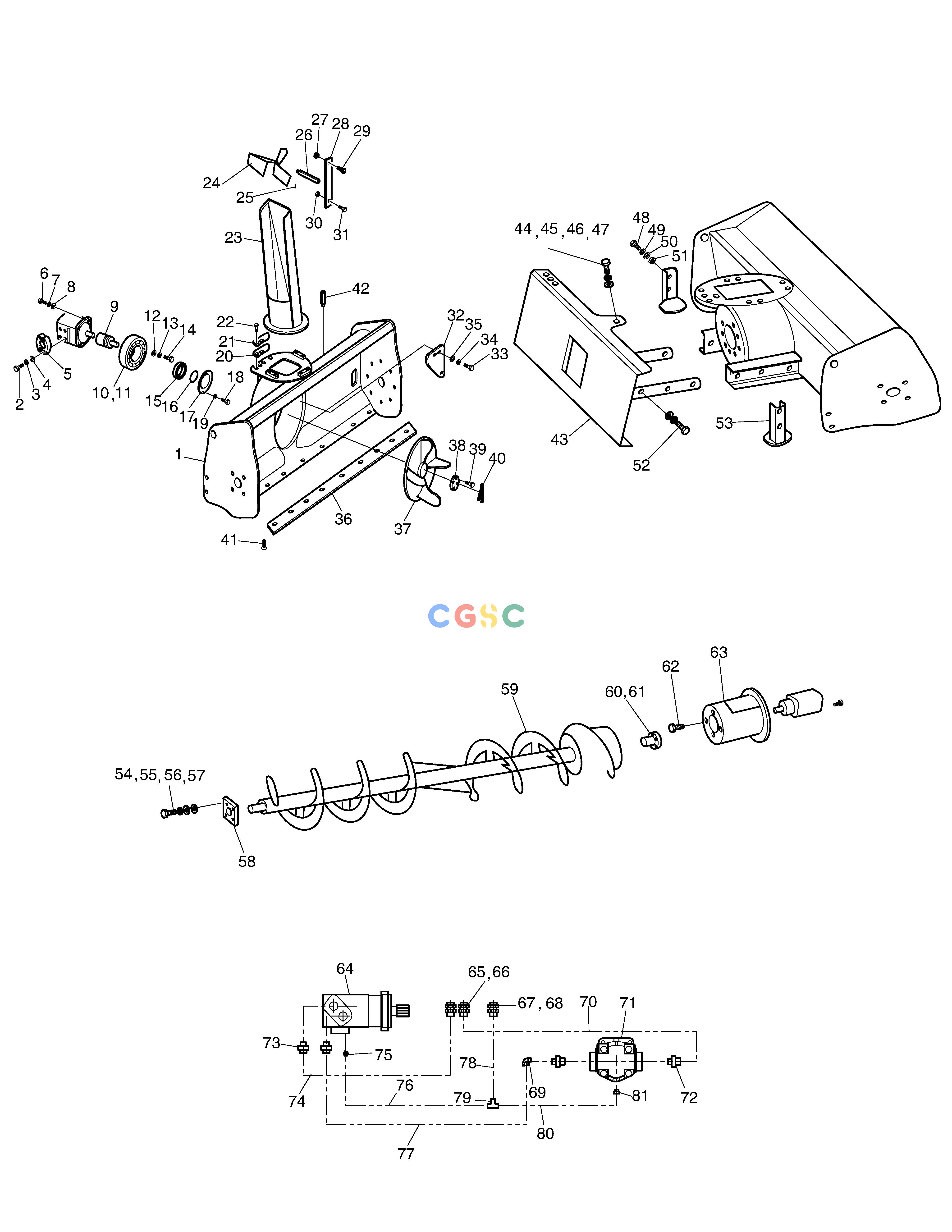

斗山零件查询SNOW BLOWER-SINGLE SHAFT & MACHINE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
599 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230101-00262A
|
[1] |
SNOW BLOWER;SSB PIN-ON
|
|
| 1. |
110405-00040
|
[1] |
BRACKET,CABINET
|
|
| 10. |
110909-00075
|
[1] |
CAGE,BEARING
|
|
| 11. |
110964-00028
|
[1] |
BOWL
|
|
| 12. |
S0521653
|
[6] |
BOLT
|
|
| 13. |
2114-1816A
|
[6] |
WASHER
|
|
| 14. |
S5010913
|
[6] |
WASHER
|
|
| 15. |
140105-00915
|
[1] |
BEARING
|
|
| 16. |
401106-00500
|
[1] |
SEAL,OIL
|
|
| 17. |
150106-00247
|
[1] |
COVER,HEAD
|
|
| 18. |
S0555966
|
[4] |
BOLT
|
|
| 19. |
S5102506
|
[4] |
WASHER,SPRING
|
|
| 2. |
120106-00831
|
[8] |
BOLT,HEX
|
|
| 20. |
100201-02283
|
[4] |
BLOCK;PADDING
|
|
| 21. |
100201-02284
|
[4] |
BLOCK;CLAMPING
|
|
| 22. |
120106-00832
|
[8] |
BOLT,HEX
|
|
| 23. |
420202-00412
|
[1] |
PIPE,CONNECTION
|
|
| 24. |
100101-00094
|
[1] |
ADJUST
|
|
| 25. |
120501-03266
|
[1] |
PIN;SAFETY
|
|
| 26. |
120501-03265
|
[1] |
PIN
|
|
| 27. |
120501-03266
|
[1] |
PIN;SAFETY
|
|
| 28. |
100201-02843
|
[1] |
BLOCK,STOPPER
|
|
| 29. |
120501-03712
|
[1] |
PIN;A
|
|
| 3. |
S5102606
|
[16] |
WASHER,SPRING
|
|
| 30. |
120312-00618
|
[1] |
NUT
|
|
| 31. |
120106-00833
|
[1] |
BOLT,HEX
|
|
| 32. |
110901-00143
|
[1] |
BAFFLE
|
|
| 33. |
120106-00834
|
[3] |
BOLT,HEX
|
|
| 34. |
S5102303
|
[3] |
. WASHER
|
|
| 35. |
S5000313
|
[3] |
WASHER
|
|
| 36. |
160101-00825
|
[1] |
BASE
|
|
| 37. |
400901-00080
|
[1] |
VANE;SNOW BLOWER
|
|
| 38. |
110901-00179
|
[1] |
BAFFLE
|
|
| 39. |
120312-00619
|
[1] |
NUT
|
|
| 4. |
S5010616
|
[16] |
WASHER
|
|
| 40. |
110971-00037
|
[1] |
COTTER
|
|
| 41. |
S0511853
|
[9] |
BOLT
|
|
| 42. |
120501-03697
|
[1] |
PIN;C
|
|
| 43. |
120204-00085
|
[1] |
HITCH,QUICK
|
|
| 44. |
S0569866
|
[2] |
BOLT M20X2.5X50
|
|
| 45. |
2114-1961D3
|
[8] |
WASHER;SPRING M20
|
|
| 46. |
S5011813
|
[8] |
WASHER;PLAIN M39
|
|
| 47. |
S4013136
|
[8] |
NUT
|
|
| 48. |
S0560466
|
[4] |
BOLT
|
|
| 49. |
S5102705
|
[4] |
WASHER,SPRING
|
|
| 5. |
430215-01091
|
[2] |
FLANGE
|
|
| 50. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 51. |
S4012762
|
[4] |
NUT M12X1.25
|
|
| 52. |
S0569966
|
[6] |
BOLT M20X2.5X55
|
|
| 53. |
101534-00514
|
[2] |
LEG
|
|
| 54. |
S0560766
|
[4] |
BOLT M12X1.75X50
|
|
| 55. |
S5102705
|
[20] |
WASHER,SPRING
|
|
| 56. |
S5010713
|
[16] |
WASHER;PLAIN
|
|
| 57. |
S4012762
|
[12] |
NUT M12X1.25
|
|
| 58. |
140105-00822
|
[1] |
BEARING
|
|
| 59. |
900131-00380
|
[1] |
ROLLER
|
|
| 6. |
S0560666
|
[4] |
BOLT
|
|
| 60. |
110931-01310
|
[1] |
HOUSING,SPLINE
|
|
| 61. |
S0514853
|
[4] |
BOLT
|
|
| 62. |
S0560566
|
[12] |
BOLT
|
|
| 63. |
160101-00826
|
[1] |
BASE
|
|
| 64. |
300506-00412
|
[1] |
MOTOR
|
|
| 65. |
430201-01397
|
[2] |
ADAPTER
|
|
| 66. |
420108-01630
|
[2] |
HOSE
|
|
| 67. |
430201-01396
|
[1] |
ADAPTER
|
|
| 68. |
420108-01281
|
[1] |
HOSE
|
|
| 69. |
430201-01395
|
[1] |
ADAPTER
|
|
| 7. |
S5102705
|
[5] |
WASHER,SPRING
|
|
| 70. |
420108-01280
|
[1] |
HOSE
|
|
| 71. |
300506-00429
|
[1] |
MOTOR;SNOW BLOWER
|
|
| 72. |
430201-01394
|
[2] |
ADAPTER
|
|
| 73. |
430201-01392
|
[2] |
ADAPTER
|
|
| 74. |
420108-01274
|
[1] |
HOSE
|
|
| 75. |
430201-01708
|
[1] |
ADAPTER
|
|
| 76. |
420108-01275
|
[1] |
HOSE
|
|
| 77. |
420108-01278
|
[1] |
HOSE
|
|
| 78. |
420108-01276
|
[1] |
HOSE
|
|
| 79. |
420108-01277
|
[1] |
HOSE
|
|
| 8. |
S5010713
|
[5] |
WASHER;PLAIN
|
|
| 80. |
420108-01279
|
[1] |
HOSE
|
|
| 81. |
430201-01393
|
[1] |
ADAPTER
|
|
| 9. |
130509-00020
|
[1] |
SPLINE,BALL
|
|
