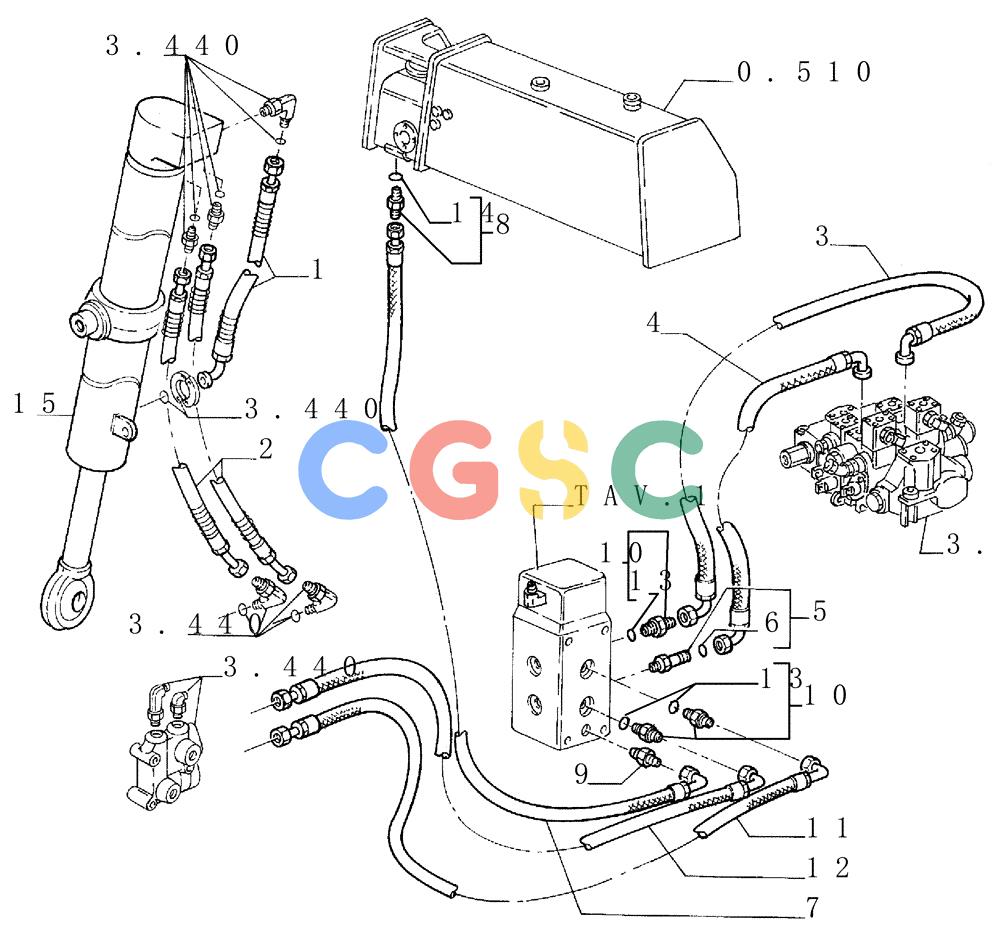

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.441[03]) - ALL HYDRAULIC VERSION - HYDR. SYSTEM - OPTIONAL CODE 76048220 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
279 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76033038 | [2] | FLEXIBLE HOSE | LEC |
| 2. | 76033039 | [4] | FLEXIBLE HOSE | LEC |
| 3. | 76041182 | [1] | FLEXIBLE HOSE | LEC |
| 4. | 76041185 | [1] | FLEXIBLE HOSE | LEC |
| 5. | 76041188 | [1] | HYD CONNECTOR | LEC- ASSY |
| 6. | 70923843 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | LEC1,78X18,77 Superseded by part number: 66297 |
| 7. | 76041184 | [1] | FLEXIBLE HOSE | LEC |
| 8. | 79066934 | [1] | HYD CONNECTOR | BHB- ASSY |
| 9. | 76041238 | [1] | HYD CONNECTOR | LEC |
| 10. | 79094128 | [3] | HYD CONNECTOR | LEC- ASSY Superseded by part number: 154221912 |
| 11. | 76041179 | [1] | FLEXIBLE HOSE | LEC |
| 12. | 76041183 | [1] | FLEXIBLE HOSE | LEC |
| 14. | 14437585 | [1] | O-RING,8.00mm ID x 1.50mm | IMO |
| 15. | 71449090 | [1] | OPERATING CYLINDER | LEC- RIGHT SEE TAV.7 |
| 15. | 71449089 | [1] | OPERATING CYLINDER | LEC- LEFT SEE TAV.7 |
