纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.441[04]) - ALL HYDRAULIC VERSION - GUARDS - OPTIONAL CODE 76048220 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
571 次

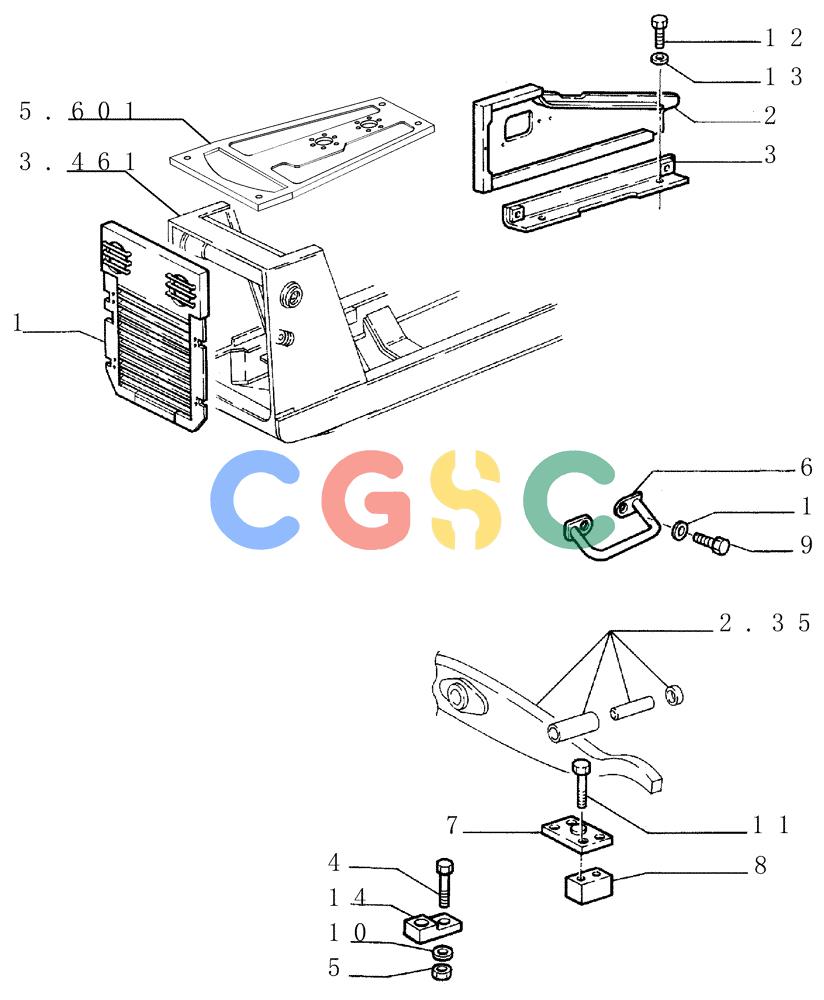

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041235 | [1] | GUARD | LEC |
| 2. | 76041274 | [1] | SIDE PANEL | LEC- RIGHT |
| 3. | 76041273 | [1] | CHANNEL | LEC- RIGHT |
| 4. | 11113231 | [2] | BOLT,Hex, M12 x 50mm, Cl 10.9 | BHB Superseded by part number: 337476 |
| 5. | 11702921 | [2] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 6. | 76042360 | [1] | HANDLE | LEC |
| 7. | 76041142 | [2] | PLATE | LEC |
| 8. | 76041143 | [2] | BLOCK | LEC |
| 9. | 11112431 | [2] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 10. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 11. | 15541831 | [8] | BOLT,Hex, M12 x 1.25 x 120mm, Cl 10.9 | PLO12X1,25X120 Superseded by part number: 514-866 |
| 12. | 16043231 | [2] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 13. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 14. | 76043988 | [2] | BLOCK | LEC |
