纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.467[01]) - PUSHBEAMS AND STRUTS - OPTIONAL CODE 76028818 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
580 次

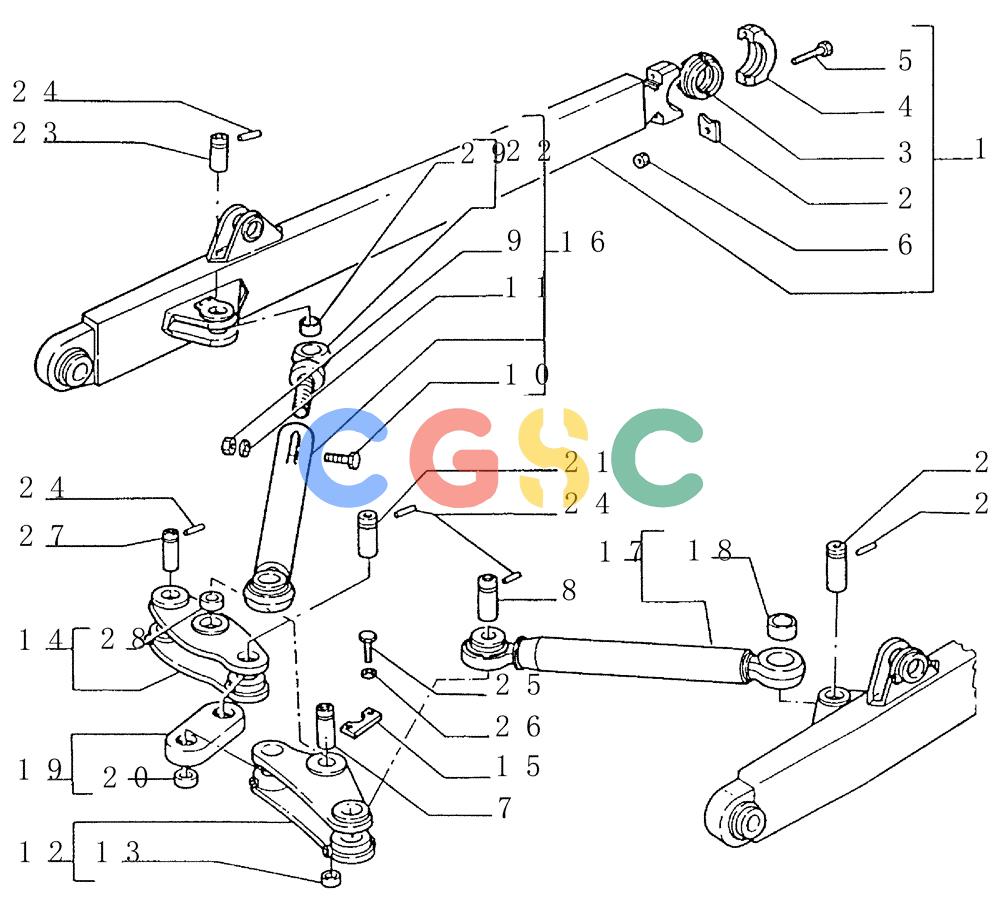

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76038778 | [1] | ARM | LEC- LEFT ASSY |
| 1. | 76038777 | [1] | ARM | LEC- RIGHT ASSY |
| 2. | 8280723 | [2] | COVER PLATE | LEC |
| 3. | 8280721 | [1] | HALF-BUSHING | LEC |
| 4. | 8296713 | [1] | SUPPORT | LECFOR P/N 76038778 Superseded by part number: 76003029 |
| 4. | 79091507 | [1] | SUPPORT | LECFOR P/N 76038777 |
| 5. | 15990731 | [2] | BOLT,Hex, M20 x 1.5 x 180mm, Cl 10.9 | LEC |
| 6. | 86015195 | [2] | NUT,M20 x 1.5, Cl 10 | RAC |
| 7. | 76028736 | [2] | PIN | LEC |
| 8. | 76028738 | [2] | PIN | LEC |
| 9. | 11702921 | [2] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 10. | 11113431 | [2] | SCREW,Hex, M12 x 60mm, Cl 10.9 | LEC Superseded by part number: 43263 |
| 11. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 12. | 76028747 | [1] | LEVER | LEC- LEFT ASSY |
| 13. | 8283007 | [2] | BUSHING | LEC |
| 14. | 76028749 | [1] | LEVER | LEC- RIGHT ASSY |
| 15. | 76028734 | [2] | COVER PLATE | LEC |
| 16. | 79081618 | [1] | TIE-ROD | LEC- ASSY |
| 17. | 79081611 | [1] | TIE-ROD | LEC- ASSY |
| 18. | 8270124 | [1] | BUSHING,50.19mm ID x 62mm OD x 60mm L | LEC |
| 19. | 8280397 | [1] | LINK CONROD | LEC- ASSY |
| 20. | 8280391 | [2] | BUSHING,50.19mm ID x 62mm OD x 50mm L | LEC |
| 21. | 76028740 | [2] | PIN | LEC |
| 22. | 76003076 | [1] | EYELET | LEC |
| 23. | 76028739 | [2] | PIN | LEC |
| 24. | 14607871 | [6] | ROLL PIN | LEC |
| 25. | 11115531 | [4] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 26. | 14496831 | [4] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
