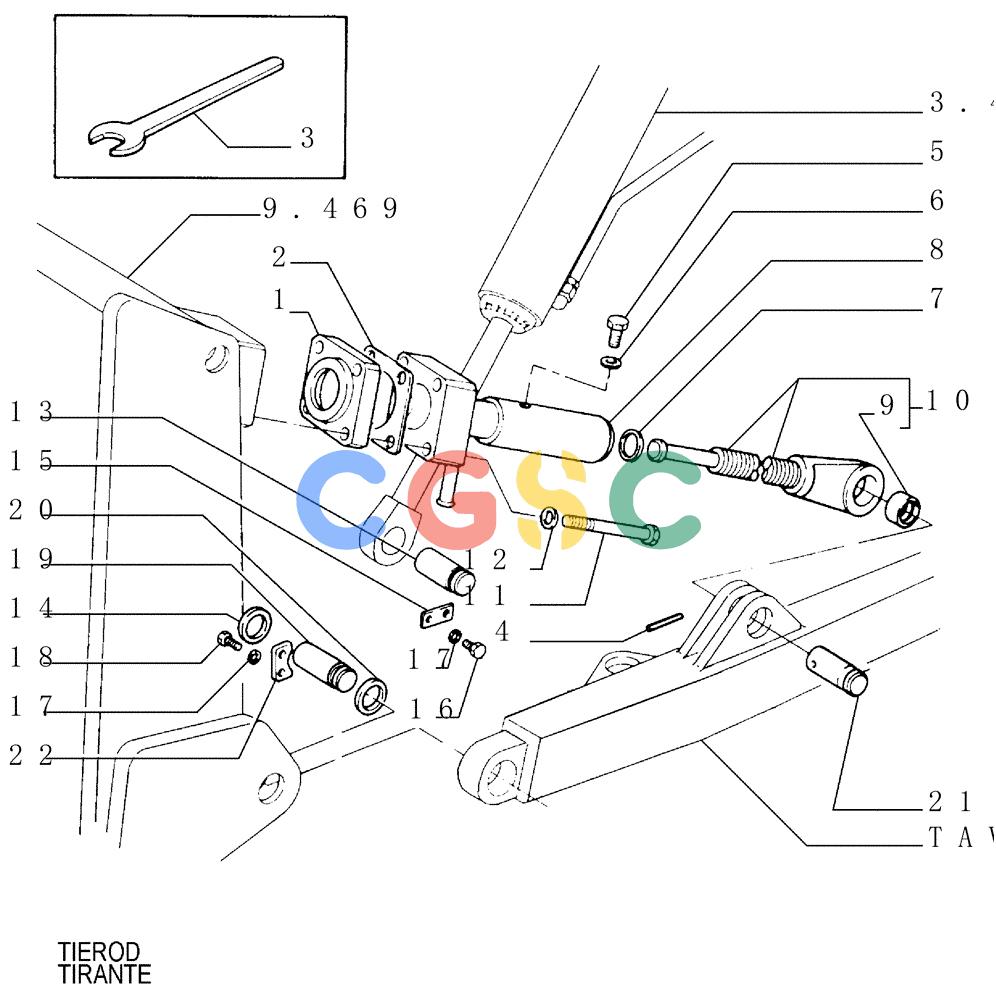

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.467[02]) - PUSHBEAMS AND STRUTS - OPTIONAL CODE 76028818 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76000805 | [2] | SUPPORT | LEC |
| 2. | 76000812 | [1] | SHIM | LEC |
| 3. | 14585678 | [1] | WRENCH | LECKEY, LOCK 30X10 |
| 4. | 14607871 | [2] | ROLL PIN | LEC |
| 5. | 8295634 | [1] | STEP BOLT | LEC |
| 6. | 14496931 | [1] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 7. | 8293408 | [1] | SEAL,59.95mm ID x 75.05mm OD x 7.5mm Thk | LEC |
| 8. | 79081631 | [1] | SLEEVE | LEC |
| 9. | 8295620 | [1] | BUSHING,60.2mm ID x 72mm OD x 45mm L | LEC |
| 10. | 79081627 | [1] | TIE-ROD | LEC- ASSY |
| 11. | 11119831 | [8] | BOLT,Hex, M16 x 95, 10.9 | LEC Superseded by part number: 11119837 |
| 13. | 76028735 | [2] | PIN | LEC |
| 14. | 8283916 | [4] | RING | LEC |
| 15. | 76028734 | [2] | COVER PLATE | LEC |
| 16. | 11115531 | [4] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 17. | 14496831 | [8] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4X28 |
| 18. | 11115631 | [4] | BOLT,Hex, M14 x 35, 10.9, Full Thd | LEC |
| 19. | 76028737 | [2] | PIN | LEC |
| 20. | 8285653 | [4] | SPACER | LEC |
| 21. | 76028741 | [2] | PIN | LEC |
| 22. | 76028733 | [2] | COVER PLATE | LEC |
