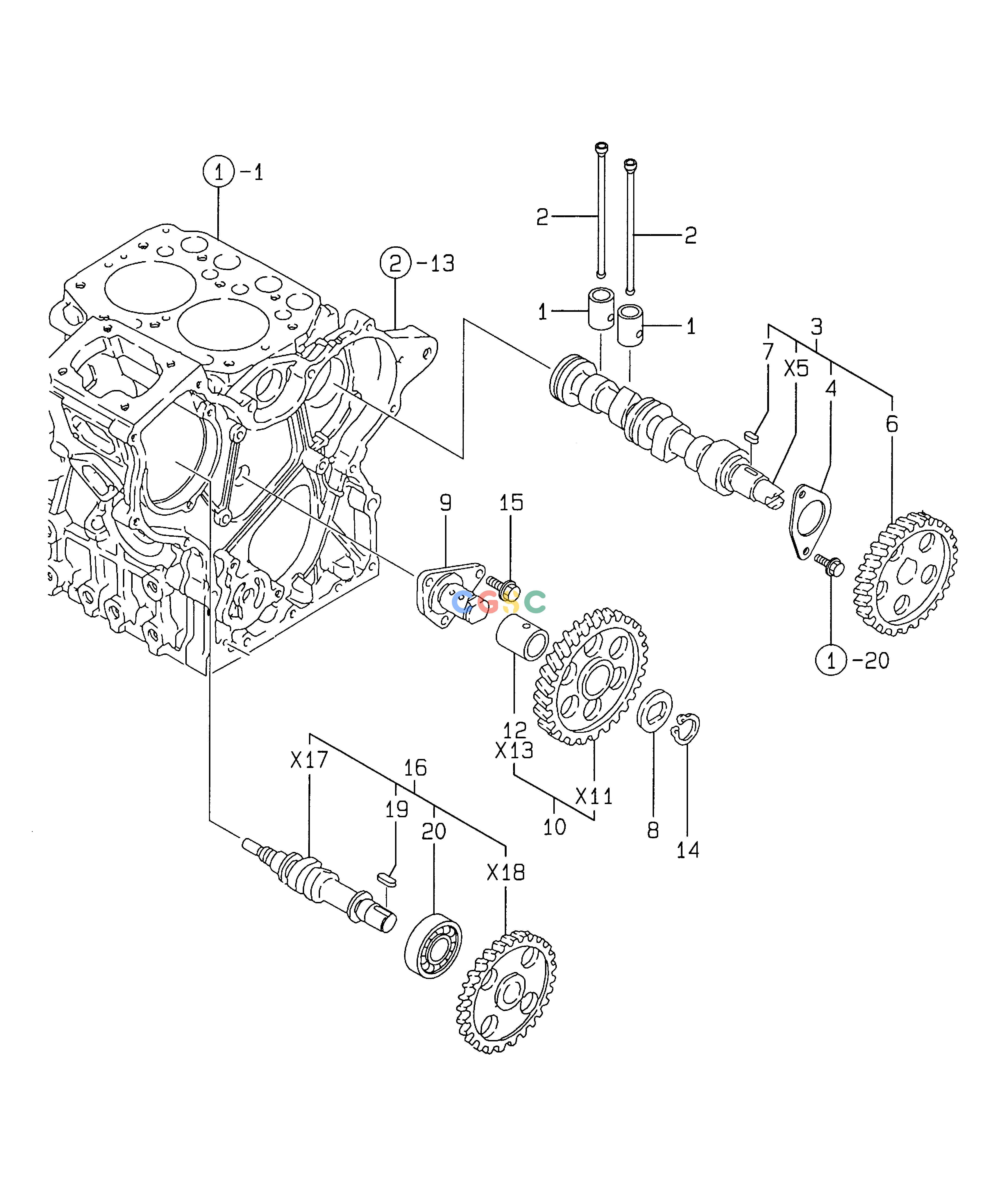

斗山零件查询CAMSHAFT & DRIVING GEAR SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
141 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
119260-14200
|
[4] |
TAPPET
|
|
| 10. |
119260-25100
|
[1] |
GEAR W/BUSH;IDLE
|
|
| 11. |
119260-25010
|
[1] |
GEAR;IDLE
|
|
| 12. |
119620-25912
|
[1] |
BUSH
|
|
| 13. |
119620-25062
|
[1] |
BUSHING;IDLE GEAR
|
|
| 14. |
22242-000200
|
[1] |
CIRCLIP
|
|
| 15. |
26106-060122
|
[3] |
BOLT M6X12
|
|
| 16. |
119305-14200
|
[1] |
CAMSHAFT;FUEL
|
|
| 17. |
119305-14090
|
[1] |
CAMSHAFT
|
|
| 18. |
119260-25900
|
[1] |
GEAR;PUMP
|
|
| 19. |
22512-040120
|
[1] |
KEY 4X12
|
|
| 2. |
119260-14400
|
[4] |
ROD;PUSH
|
|
| 20. |
24102-063034
|
[1] |
BEARING;BALL
|
|
| 3. |
119305-14580
|
[1] |
CAMSHAFT ASS'Y
|
|
| 4. |
119620-02450
|
[1] |
BEARING;THRUST
|
|
| 5. |
119305-14010
|
[1] |
CAMSHAFT
|
|
| 6. |
119260-14100
|
[1] |
GEAR;CAMSHAFT
|
|
| 7. |
22512-040120
|
[1] |
KEY 4X12
|
|
| 8. |
119660-25022
|
[1] |
RETAINER;IDLE GEAR
|
|
| 9. |
119660-25052
|
[1] |
SHAFT;IDLE GEAR
|
|
