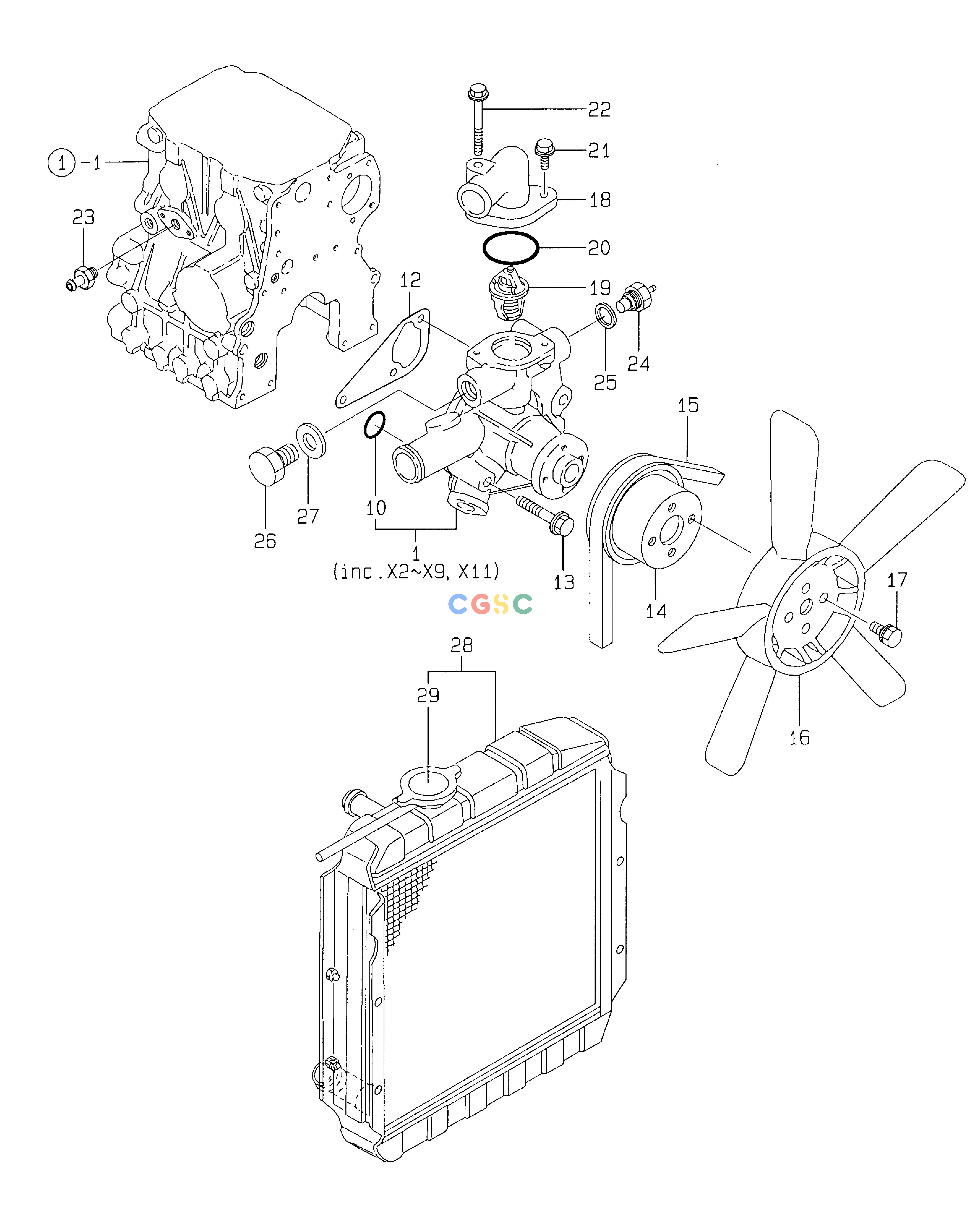

斗山零件查询COOLING SYSTEM SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
622 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
119260-42002
|
[1] |
PUMP ASS'Y
|
|
| 10. |
119225-42320
|
[1] |
O-RING
|
|
| 11. |
26577-060122
|
[3] |
SCREW M6X12
|
|
| 12. |
119260-42020
|
[1] |
GASKET;C.W.PUMP
|
|
| 13. |
26106-080452
|
[3] |
BOLT M8X45
|
|
| 14. |
119620-42350
|
[1] |
V-PULLEY;PUMP
|
|
| 15. |
104514-42780
|
[1] |
V-BELT
|
|
| 16. |
119332-44740
|
[1] |
FAN
|
|
| 17. |
26014-060142
|
[4] |
BOLT M6X14
|
|
| 18. |
119256-49530
|
[1] |
COVER;THERMOSTAT
|
|
| 19. |
119260-49800
|
[1] |
THERMOSTAT
|
|
| 2. |
119260-42031
|
[1] |
BODY;PUMP
|
|
| 20. |
24321-000350
|
[1] |
O-RING
|
|
| 21. |
26106-060162
|
[1] |
BOLT M6X16
|
|
| 22. |
26106-060552
|
[1] |
BOLT M6X55
|
|
| 23. |
171056-49120
|
[1] |
PLUG;DRAIN
|
|
| 24. |
124250-49351
|
[1] |
THERMOMETER
|
|
| 25. |
129150-49360
|
[1] |
GASKET
|
|
| 26. |
121450-42450
|
[1] |
PLUG M16
|
|
| 27. |
124465-44950
|
[1] |
GASKET
|
|
| 28. |
119332-44501
|
[1] |
RADIATOR ASS'Y
|
|
| 29. |
129107-44590
|
[1] |
CAP;RADIATOR
|
|
| 3. |
119225-42040
|
[1] |
PLUG
|
|
| 4. |
119260-42051
|
[1] |
GASKET
|
|
| 5. |
119260-42120
|
[1] |
PLATE
|
|
| 6. |
119620-42200
|
[1] |
IMPELLER
|
|
| 7. |
119225-42240
|
[1] |
BEARING
|
|
| 8. |
119660-42260
|
[1] |
FLANGE;V-PULLEY
|
|
| 9. |
119660-42310
|
[1] |
SEAL;MECHANICAL
|
|
