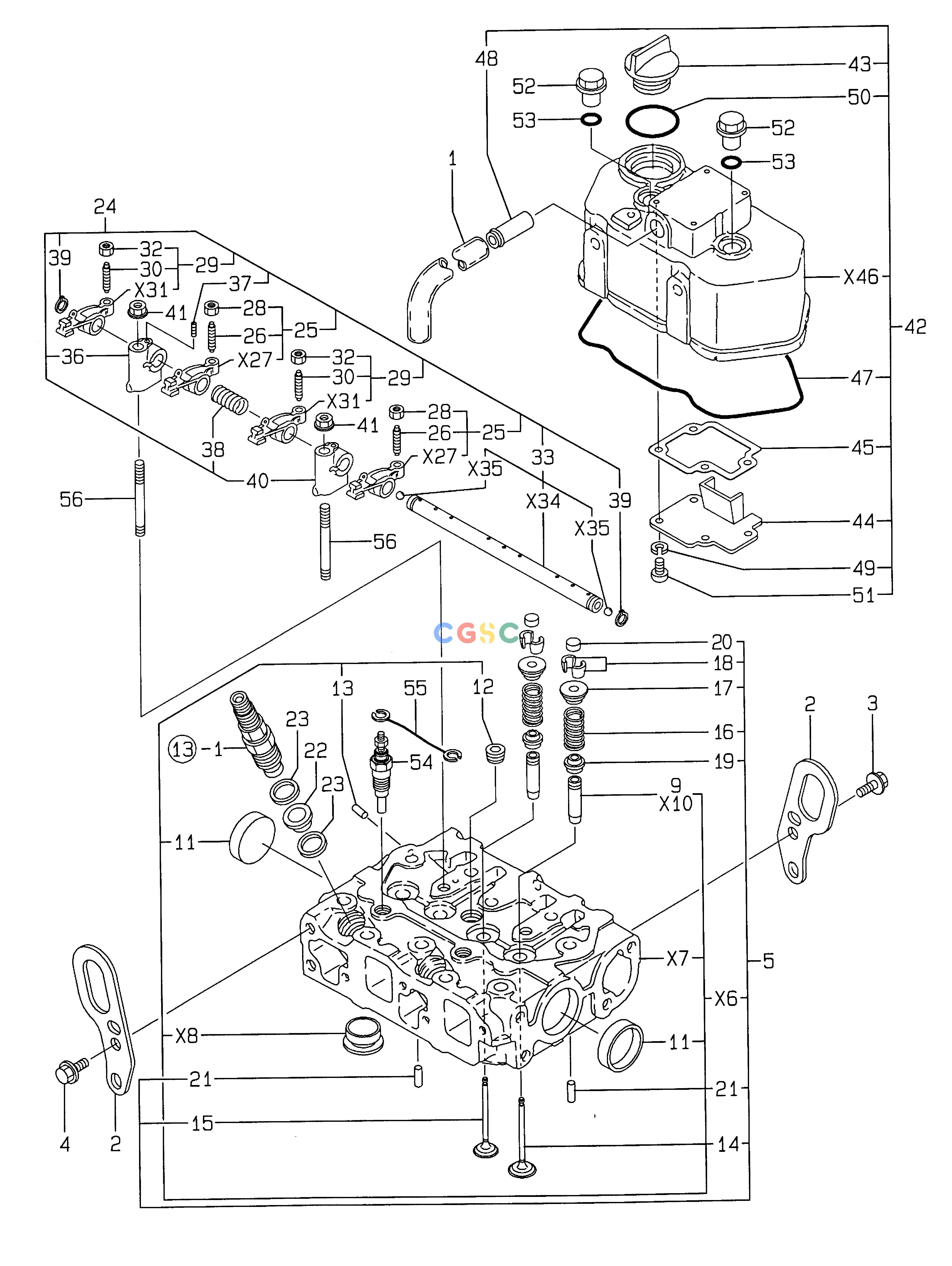

斗山零件查询CYLINDER HEAD & COVER SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
23065-120500
|
[1] |
PIPE;VINYL
|
|
| 10. |
119260-11160
|
[4] |
GUIDE;VALVE
|
|
| 11. |
27241-350000
|
[2] |
PLUG 35
|
|
| 12. |
23871-020000
|
[1] |
PLUG;SCREW PT1/4
|
|
| 13. |
27221-050080
|
[1] |
PLUG
|
|
| 14. |
119260-11100
|
[2] |
VALVE;SUCTION
|
|
| 15. |
119260-11110
|
[2] |
VALVE;EXHAUST
|
|
| 16. |
114250-11120
|
[4] |
SPRING;VALVE
|
|
| 17. |
114250-11180
|
[4] |
RETAINER;SPRING
|
|
| 18. |
27310-055000
|
[8] |
COTTER
|
|
| 19. |
119260-11340
|
[4] |
SEAL;VALVE STEM
|
|
| 2. |
119260-07900
|
[2] |
LIFTER;ENGINE
|
|
| 20. |
119260-11370
|
[4] |
CAP;VALVE
|
|
| 21. |
22351-060012
|
[2] |
PIN;SPRING
|
|
| 22. |
119600-11450
|
[2] |
PROTECTOR;NOZZLE
|
|
| 23. |
119600-11460
|
[4] |
GASKET;NOZZLE
|
|
| 24. |
119305-11200
|
[1] |
SUPPORT ASS'Y
|
|
| 25. |
719260-11650
|
[2] |
ROCKER ARM ASS'Y
|
|
| 26. |
105010-11230
|
[2] |
SCREW;VALVE
|
|
| 27. |
119260-11710
|
[2] |
ARM;INTAKE VALVE
|
|
| 28. |
26756-060002
|
[2] |
NUT;LOCK M6
|
|
| 29. |
719260-11660
|
[2] |
ROCKER ARM ASS'Y
|
|
| 3. |
26106-080142
|
[1] |
BOLT M8X14
|
|
| 30. |
105010-11230
|
[2] |
SCREW;VALVE
|
|
| 31. |
119260-11720
|
[2] |
ARM;EXHAUST VALVE
|
|
| 32. |
26756-060002
|
[2] |
NUT;LOCK M6
|
|
| 33. |
119305-11240
|
[1] |
ARM SHAFT ASS'Y
|
|
| 34. |
119305-11250
|
[1] |
SHAFT;ROCKER ARM
|
|
| 35. |
24190-070001
|
[2] |
BALL
|
|
| 36. |
119260-11260
|
[1] |
SUPPORT;ROCKER ARM
|
|
| 37. |
119260-11270
|
[1] |
SCREW
|
|
| 38. |
119260-11280
|
[1] |
SPRING
|
|
| 39. |
22242-000100
|
[2] |
CIRCLIP
|
|
| 4. |
26106-080142
|
[2] |
BOLT M8X14
|
|
| 40. |
119265-11260
|
[1] |
SUPPORT;ROCKER ARM
|
|
| 41. |
26366-080002
|
[2] |
NUT M8
|
|
| 42. |
119305-11350
|
[1] |
BONNET ASS'Y
|
|
| 43. |
124160-01751
|
[1] |
COVER;FILLER
|
|
| 44. |
119305-03020
|
[1] |
PLATE
|
|
| 45. |
119305-03031
|
[1] |
GASKET;PLATE
|
|
| 46. |
119305-11300
|
[1] |
BONNET
|
|
| 47. |
119305-11310
|
[1] |
GASKET;BONNET
|
|
| 48. |
119620-11390
|
[1] |
JOINT
|
|
| 49. |
22217-050000
|
[4] |
WASHER;SPRING M5
|
|
| 5. |
719325-11700
|
[1] |
CYLINDER HEAD ASS'Y
|
|
| 50. |
24311-000320
|
[1] |
O-RING
|
|
| 51. |
26557-050102
|
[4] |
SCREW M5X10
|
|
| 52. |
124160-11360
|
[2] |
KNOB
|
|
| 53. |
24311-000120
|
[2] |
O-RING
|
|
| 54. |
129155-77801
|
[2] |
PLUG;GLOW
|
|
| 55. |
119305-77820
|
[1] |
CONNECTOR;PLUG
|
|
| 56. |
119620-11350
|
[2] |
STUD
|
|
| 6. |
119325-11000
|
[1] |
CYLINDER HEAD ASS'Y
|
|
| 7. |
119325-11010
|
[1] |
CYLINDER HEAD
|
|
| 8. |
119265-11421
|
[2] |
PLUG;HOT
|
|
| 9. |
119260-11800
|
[4] |
GUIDE;VALVE
|
|
