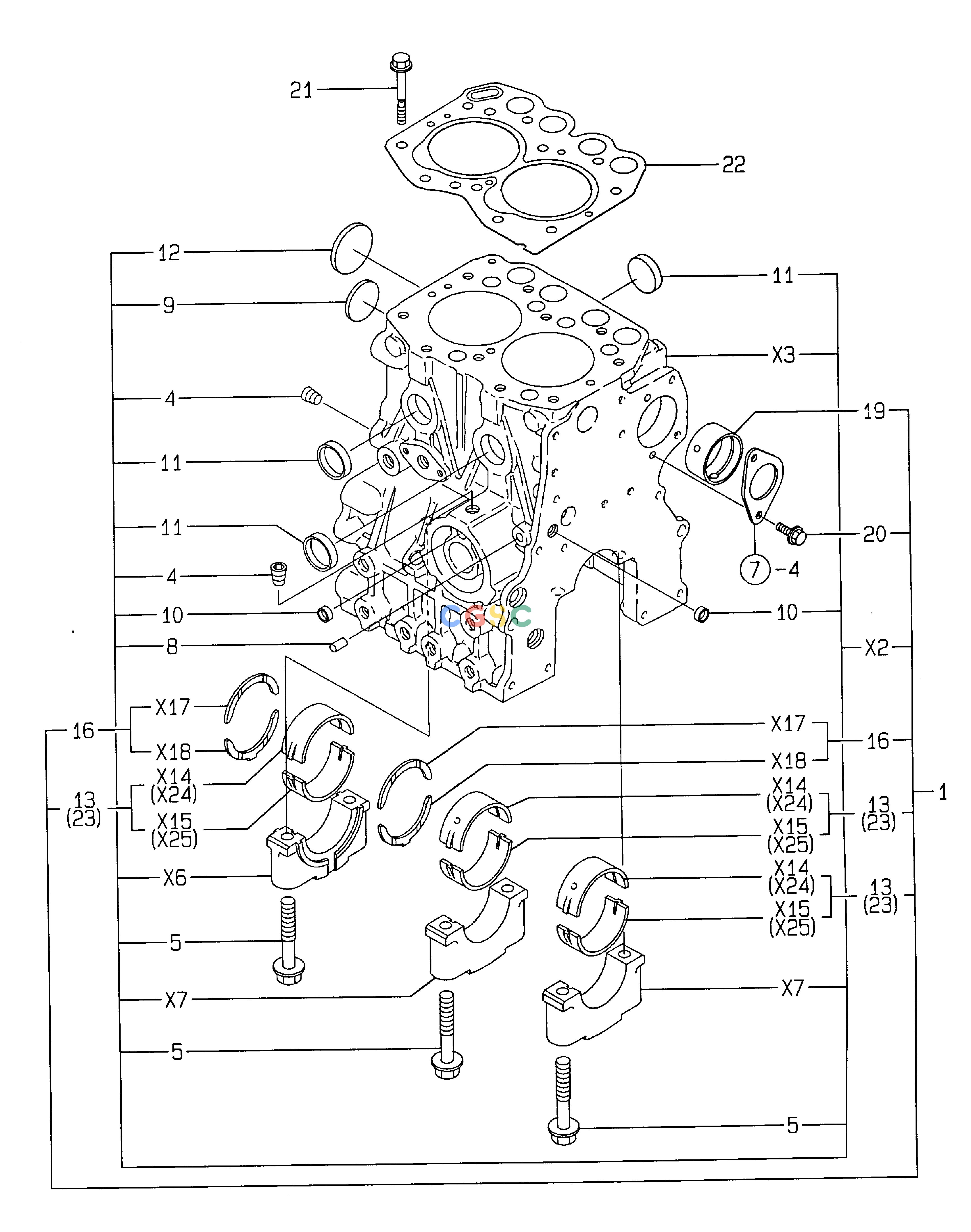

斗山零件查询CYLINDER BLOCK SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
831 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
719325-01560
|
[1] |
CYLINDER BLOCK ASS'Y
|
|
| 10. |
27241-100000
|
[2] |
PLUG 10
|
|
| 11. |
27241-250000
|
[3] |
PLUG 25
|
|
| 12. |
27241-300000
|
[1] |
PLUG 30
|
|
| 13. |
119260-02800
|
[3] |
METAL;MAIN
|
|
| 14. |
119260-02100
|
[3] |
METAL;MAIN
|
|
| 15. |
119260-02110
|
[3] |
METAL;MAIN
|
|
| 16. |
119260-02930
|
[2] |
BEARING;THRUST
|
|
| 17. |
119260-02150
|
[2] |
BEARING;THRUST
|
|
| 18. |
119260-02160
|
[2] |
BEARING;THRUST
|
|
| 19. |
119266-02410
|
[1] |
BUSH
|
|
| 2. |
119325-01000
|
[1] |
CYLINDER BLOCK COMP
|
|
| 20. |
26106-060122
|
[2] |
BOLT M6X12
|
|
| 21. |
119260-01200
|
[10] |
BOLT;CYL. HEAD
|
|
| 22. |
119309-01330
|
[1] |
GASKET;CYL. HEAD
|
|
| 23. |
719260-02870
|
[3] |
METAL;MAIN
|
|
| 24. |
119260-02320
|
[3] |
BEARING(UP.)
|
|
| 25. |
119260-02330
|
[3] |
BEARING(LO.)
|
|
| 3. |
119325-01010
|
[1] |
CYLINDER BLOCK
|
|
| 4. |
124060-01050
|
[2] |
PLUG PT1/8
|
|
| 5. |
119260-02020
|
[6] |
BOLT
|
|
| 6. |
119260-02300
|
[1] |
CAP;MAIN BEARING
|
|
| 7. |
119260-02310
|
[2] |
CAP;MAIN BEARING
|
|
| 8. |
27221-060100
|
[1] |
PLUG 6X10
|
|
| 9. |
27231-400000
|
[1] |
PLUG 40
|
|
