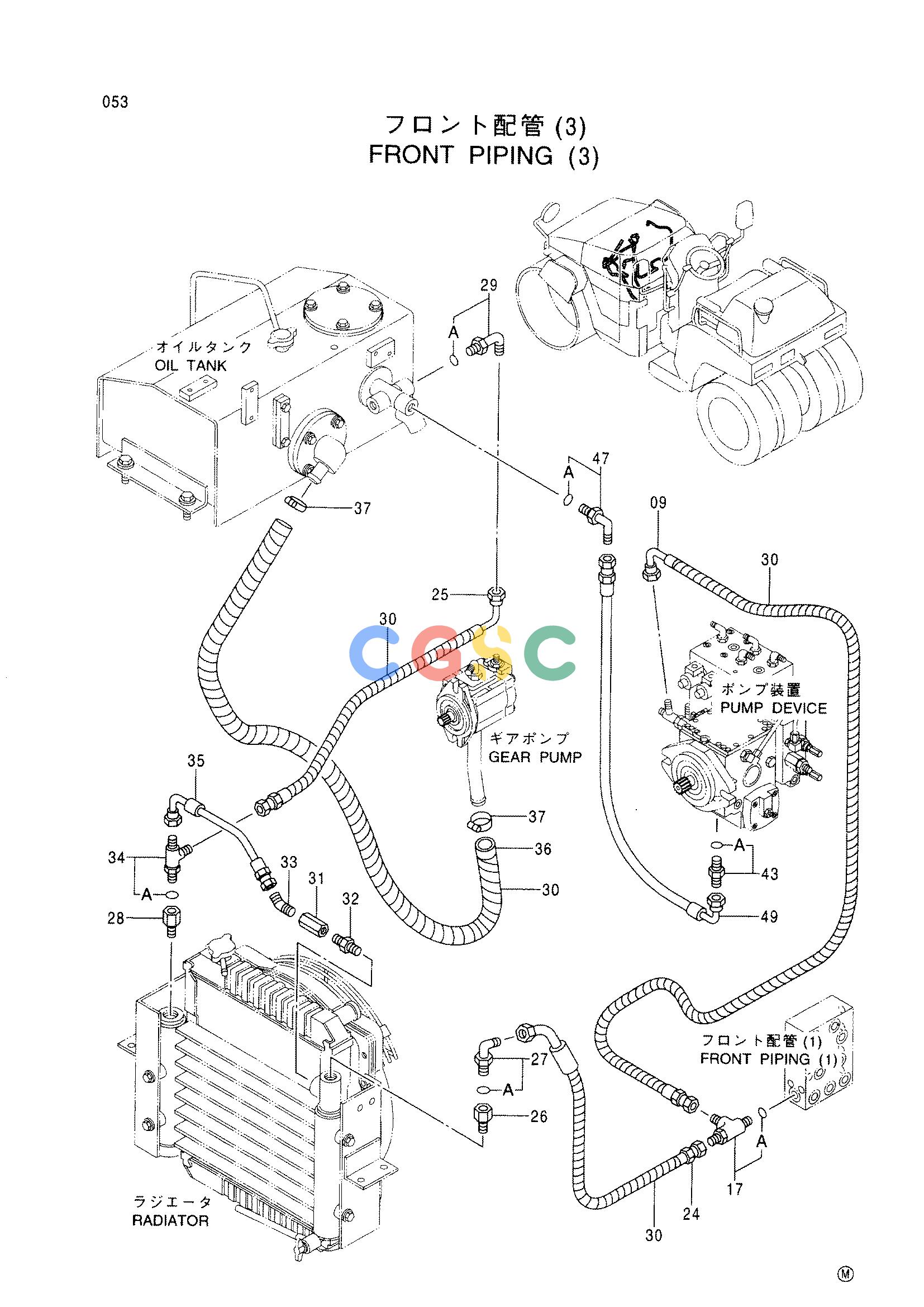

日立零件查询（CC150CW）FRONT PIPING (3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 09. | 425514 | [1] | HOSE | |
| 17. | 425522 | [1] | TEE;S | |
| 17A. | 947519 | [1] | O-RING | |
| 24. | 425655 | [1] | HOSE | |
| 25. | 425656 | [1] | HOSE | |
| 26. | 425470 | [1] | ADAPTER;S | |
| 27. | 425686 | [1] | ELBOW;S | |
| 27A. | 947519 | [1] | O-RING | |
| 28. | 425499 | [1] | REDUCER;S | |
| 29. | 424049 | [1] | ELBOW;S | |
| 29A. | 430623 | [1] | O-RING | |
| 30. | 425524 | [7] | PROTECTOR | |
| 31. | 425708 | [1] | VALVE | |
| 32. | 425707 | [1] | ADAPTER;S | |
| 33. | 425472 | [1] | ELBOW;S | |
| 34. | 424090 | [1] | TEE;S | |
| 34A. | 430623 | [1] | O-RING | |
| 35. | 425701 | [1] | HOSE | |
| 36. | 425650 | [1] | HOSE;RUBBER | |
| 37. | 424167 | [2] | CLAMP;HOSE | |
| 43. | 425540 | [1] | ADAPTER;S | |
| 43A. | 438402 | [1] | O-RING | |
| 47. | 425542 | [1] | ELBOW;S | |
| 47A. | 430623 | [1] | O-RING | |
| 49. | 425481 | [1] | HOSE | |
