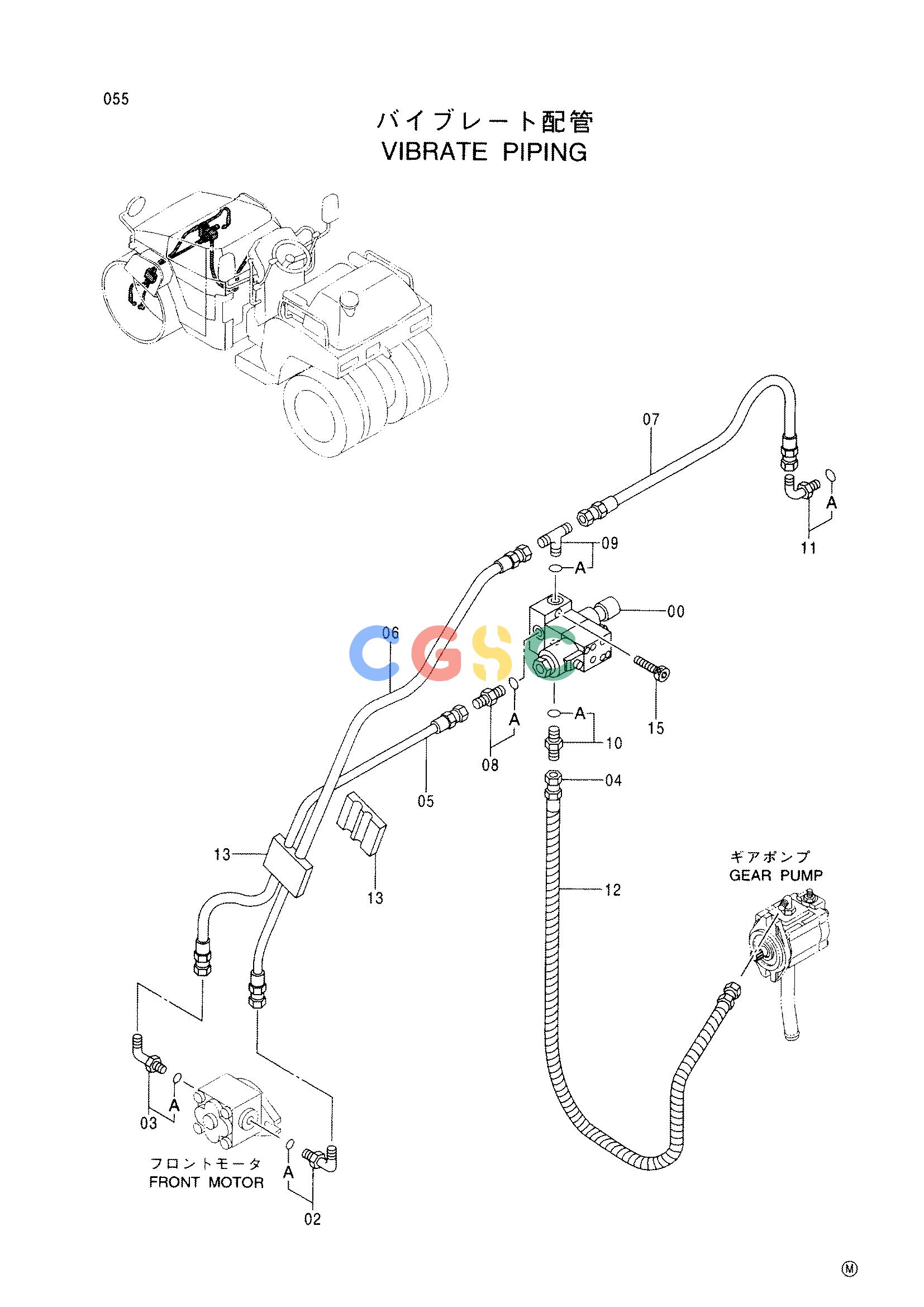

日立零件查询（CC150CW）VIBRATE PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
915 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425464 | [1] | VALVE;CONTROL | |
| 02. | 424050 | [1] | ELBOW;S | |
| 02A. | 947520 | [1] | O-RING | |
| 03. | 424049 | [1] | ELBOW;S | |
| 03A. | 430623 | [1] | O-RING | |
| 04. | 425651 | [1] | HOSE | |
| 05. | 425685 | [1] | HOSE | |
| 06. | 425684 | [1] | HOSE | |
| 07. | 425662 | [1] | HOSE | |
| 08. | 424094 | [1] | ADAPTER;S | |
| 08A. | 947519 | [1] | O-RING | |
| 09. | 425478 | [1] | TEE;S | |
| 09A. | 947519 | [1] | O-RING | |
| 10. | 425541 | [1] | ELBOW;S | |
| 10A. | 947519 | [1] | O-RING | |
| 11. | 425475 | [1] | ELBOW;S | |
| 11A. | 430623 | [1] | O-RING | |
| 12. | 425524 | [2] | PROTECTOR | |
| 13. | 425687 | [2] | CLAMP | |
| 15. | 425553 | [2] | BOLT;SOCKET | |
