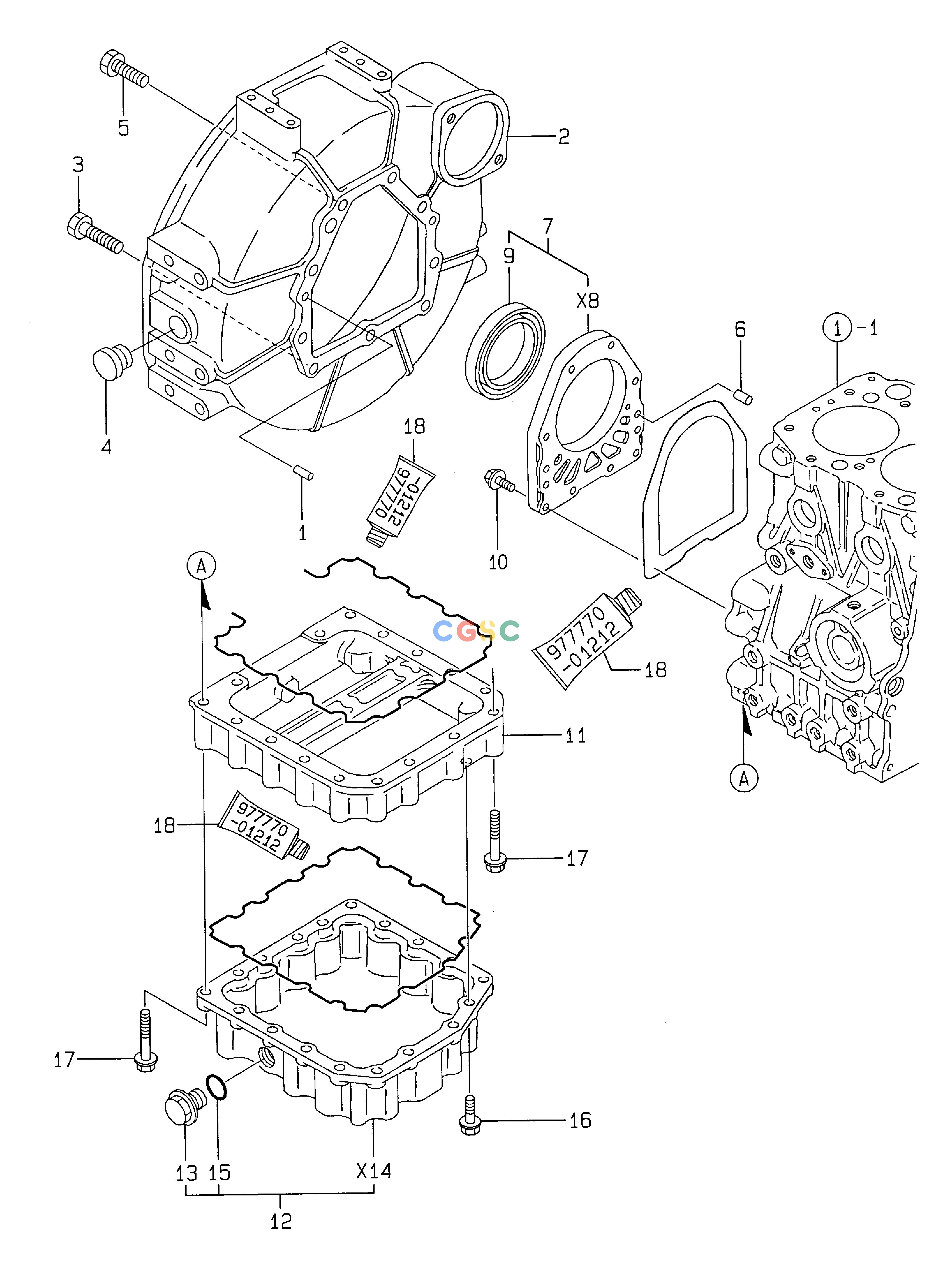

斗山零件查询FLYWHEEL HOUSING & OIL PUMP SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
129100-01580
|
[2] |
PIN;PARALLEL
|
|
| 10. |
26106-060222
|
[10] |
BOLT M6X22
|
|
| 11. |
119305-01760
|
[1] |
SPACER;SUMP
|
|
| 12. |
119332-01771
|
[1] |
SUMP ASS'Y;LUB.OIL
|
|
| 13. |
121400-01640
|
[1] |
PLUG M16
|
|
| 14. |
119332-01751
|
[1] |
PUMP;OIL
|
|
| 15. |
24311-000180
|
[1] |
O-RING P18
|
|
| 16. |
26106-060102
|
[3] |
BOLT M6X10
|
|
| 17. |
26106-060452
|
[16] |
BOLT M6X45
|
|
| 18. |
977770-01212
|
[1] |
GASKET;LIQUID
|
|
| 2. |
119260-01600
|
[1] |
HOUSING;FLYWHEEL
|
|
| 3. |
121120-01620
|
[3] |
BOLT M10X28
|
|
| 4. |
119620-01750
|
[1] |
CAP;FLYWHEEL COVER
|
|
| 5. |
26206-100252
|
[6] |
BOLT M10X25
|
|
| 6. |
119620-01620
|
[2] |
PIN;PARALLEL
|
|
| 7. |
119660-01640
|
[1] |
CASE ASS'Y;OIL SEAL
|
|
| 8. |
119660-01651
|
[1] |
HOUSING;OIL SEAL
|
|
| 9. |
124085-02220
|
[1] |
SEAL;OIL
|
|
