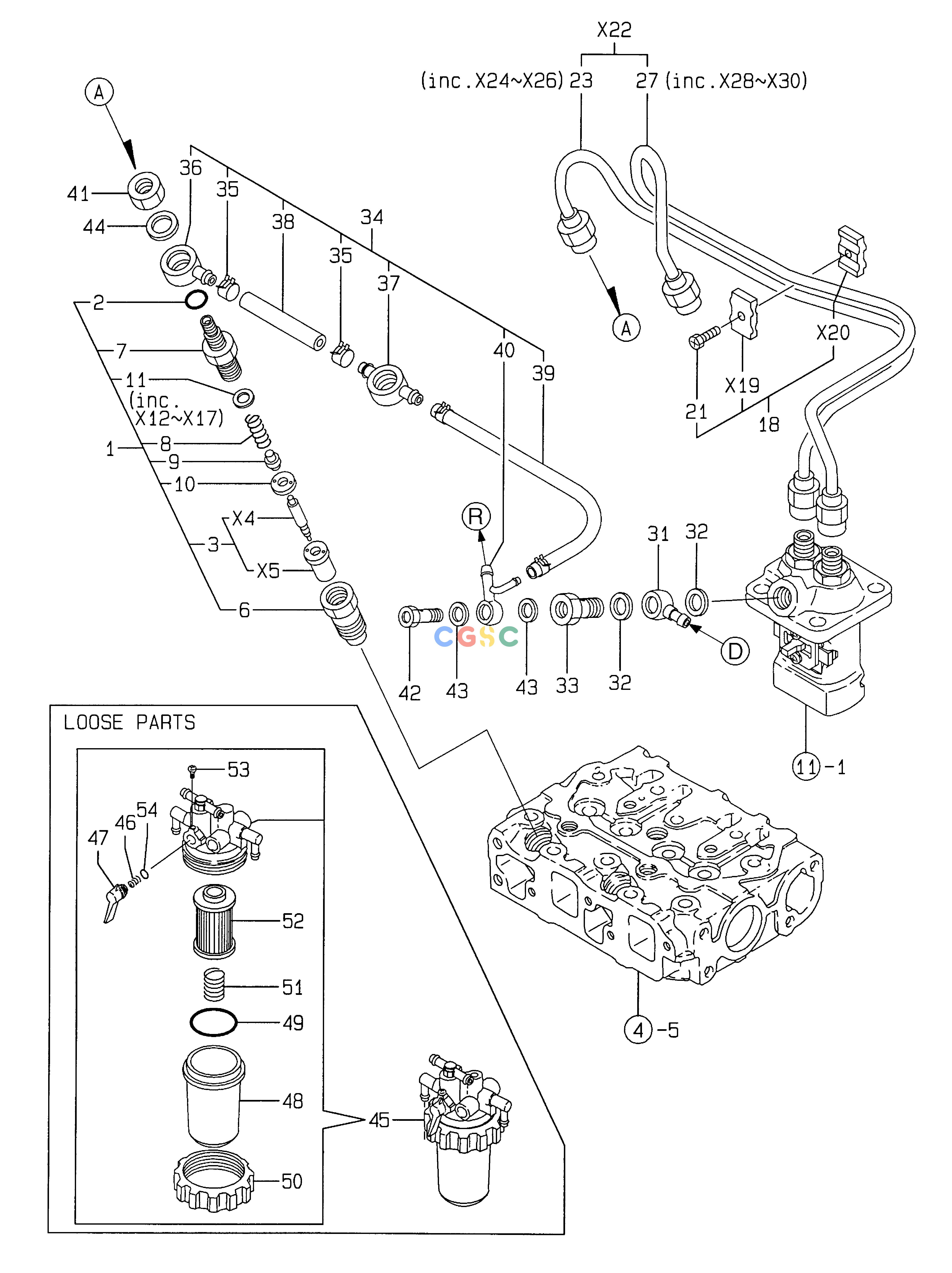

斗山零件查询FUEL INJECTION NOZZLE SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
719620-53700
|
[2] |
FUEL INJ. VLAVE ASS'Y
|
|
| 10. |
119620-53140
|
[2] |
SPACER;VALVE STOP
|
|
| 11. |
114250-53400
|
[2] |
SHIM ASS'Y
|
|
| 12. |
114250-53410
|
[2] |
SHIM T=0.4
|
|
| 13. |
114250-53420
|
[2] |
SHIM T=0.5
|
|
| 14. |
114250-53430
|
[2] |
SHIM T=0.6
|
|
| 15. |
114250-53440
|
[2] |
SHIM T=0.7
|
|
| 16. |
114250-53450
|
[2] |
SHIM T=0.8
|
|
| 17. |
114250-53460
|
[2] |
SHIM T=0.15
|
|
| 18. |
119305-59120
|
[1] |
RETAINER
|
|
| 19. |
119305-59100
|
[1] |
RETAINER;UPPER
|
|
| 2. |
129155-61830
|
[2] |
O-RING
|
|
| 20. |
119305-59110
|
[1] |
RETAINER;LOWER
|
|
| 21. |
129150-59131
|
[1] |
BOLT M4X14
|
|
| 22. |
119309-59800
|
[1] |
PIPE ASS'Y;FUEL
|
|
| 23. |
119309-59810
|
[1] |
PIPE ASS'Y;FUEL
|
|
| 24. |
124250-55950
|
[2] |
RETAINER
|
|
| 25. |
124250-55960
|
[2] |
NUT
|
|
| 26. |
119309-59600
|
[1] |
PIPE;FUEL INJECTION
|
|
| 27. |
119309-59820
|
[1] |
PIPE ASS'Y;FUEL
|
|
| 28. |
124250-55950
|
[2] |
RETAINER
|
|
| 29. |
124250-55960
|
[2] |
NUT
|
|
| 3. |
119620-53000
|
[2] |
NOZZLE ASS'Y
|
|
| 30. |
119309-59610
|
[1] |
PIPE;FUEL INJECTION
|
|
| 31. |
101304-59020
|
[1] |
JOINT;PIPE
|
|
| 32. |
104200-59170
|
[2] |
GASKET
|
|
| 33. |
119650-59200
|
[1] |
BOLT;PIPE JOINT
|
|
| 34. |
119332-59540
|
[1] |
PIPE;FUEL RETURN
|
|
| 35. |
124066-59100
|
[2] |
CLAMP
|
|
| 36. |
119260-59520
|
[1] |
JOINT(B)
|
|
| 37. |
119260-59530
|
[1] |
JOINT(A)
|
|
| 38. |
119260-59550
|
[1] |
PIPE;FUEL
|
|
| 39. |
119642-59550
|
[1] |
PIPE;FUEL RETURN
|
|
| 4. |
119620-53010
|
[2] |
VALVE
|
|
| 40. |
119642-59570
|
[1] |
JOINT;OVER FLOW PIPE
|
|
| 41. |
119620-59700
|
[2] |
NUT
|
|
| 42. |
124550-59820
|
[1] |
BOLT;PIPE JOINT
|
|
| 43. |
23414-080012
|
[2] |
GASKET
|
|
| 44. |
23414-140000
|
[2] |
GASKET;ROUND
|
|
| 45. |
119255-55620
|
[1] |
STRAINER;FUEL
|
|
| 46. |
104200-55330
|
[1] |
SPRING;TAPER VALVE
|
|
| 47. |
119810-55340
|
[1] |
LEVER
|
|
| 48. |
121254-55510
|
[1] |
CUP;STRAINER
|
|
| 49. |
102103-55520
|
[1] |
O-RING
|
|
| 5. |
119620-53040
|
[2] |
BODY
|
|
| 50. |
110250-55610
|
[1] |
RING;RETAINING
|
|
| 51. |
121250-55620
|
[1] |
SPRING
|
|
| 52. |
124550-55700
|
[1] |
ELEMENT
|
|
| 53. |
104200-55750
|
[1] |
SCREW
|
|
| 54. |
24311-240100
|
[1] |
O-RING
|
|
| 6. |
119620-53080
|
[2] |
NUT;VALVE
|
|
| 7. |
119620-53100
|
[2] |
HOLDER;VALVE
|
|
| 8. |
119620-53120
|
[2] |
SPRING;VALVE
|
|
| 9. |
114250-53130
|
[2] |
SEAT;NOZZLE SPRING
|
|
