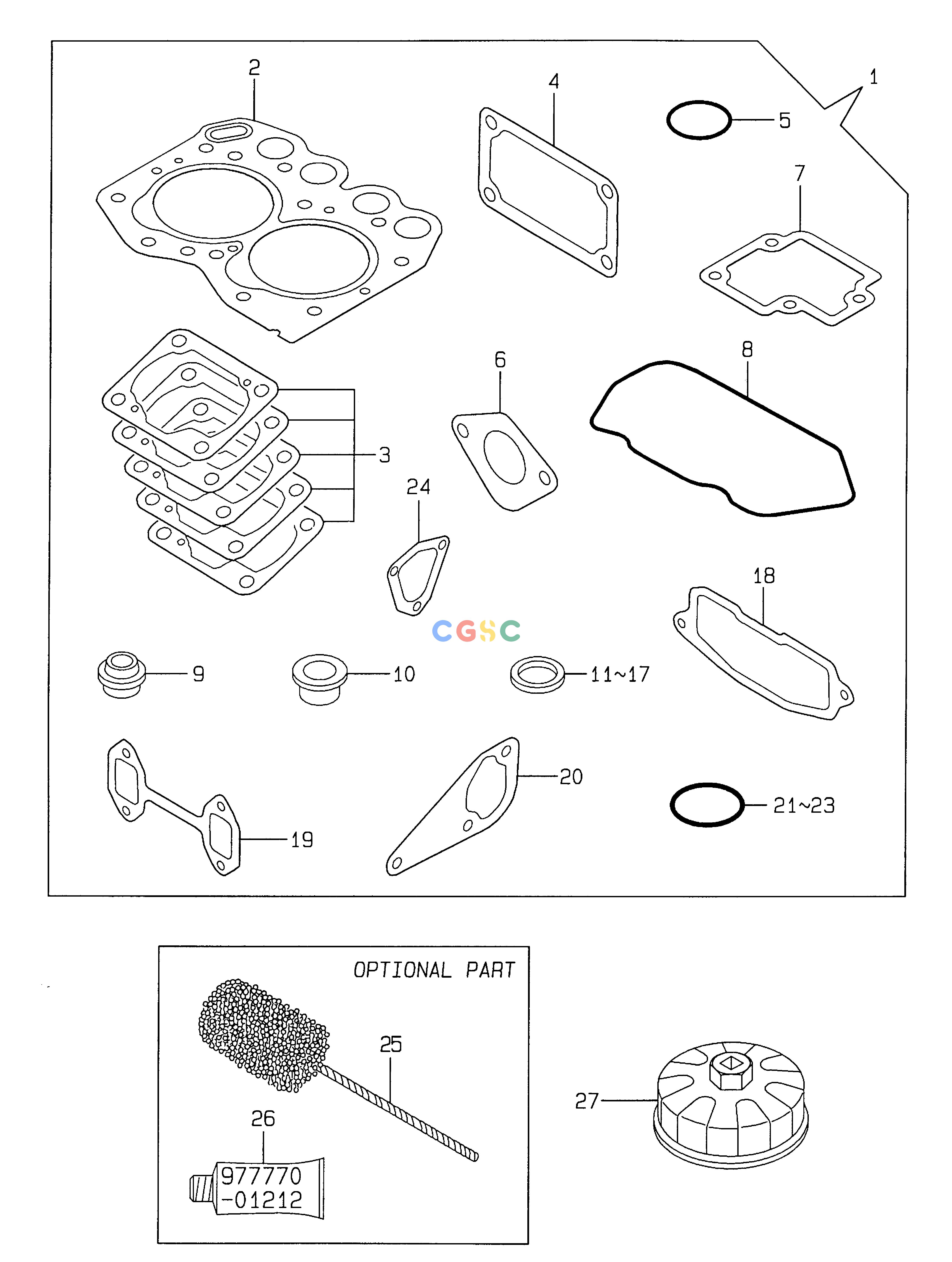

斗山零件查询GASKET SET SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
262 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
719325-92601
|
[1] |
GASKET SET
|
|
| 10. |
119600-11450
|
[2] |
PROTECTOR;NOZZLE
|
|
| 11. |
119600-11460
|
[4] |
GASKET;NOZZLE
|
|
| 12. |
124465-44950
|
[1] |
GASKET
|
|
| 13. |
22190-060003
|
[2] |
WASHER;SEAL
|
|
| 14. |
22190-120002
|
[2] |
WASHER;SEAL
|
|
| 15. |
104200-59170
|
[2] |
GASKET
|
|
| 16. |
23414-080012
|
[2] |
GASKET
|
|
| 17. |
23414-140000
|
[2] |
GASKET;ROUND
|
|
| 18. |
119305-12160
|
[1] |
GASKET;SUC.MANIFOLD
|
|
| 19. |
119305-13110
|
[1] |
GASKET;EXH.MANIFOLD
|
|
| 2. |
119309-01330
|
[1] |
GASKET;CYL. HEAD
|
|
| 20. |
119260-42020
|
[1] |
GASKET;C.W.PUMP
|
|
| 21. |
24321-000350
|
[1] |
O-RING
|
|
| 22. |
24311-000120
|
[4] |
O-RING
|
|
| 23. |
24341-000240
|
[1] |
O-RING
|
|
| 24. |
119660-61071
|
[1] |
GASKET
|
|
| 25. |
129400-92400
|
[1] |
FLEX HORN
|
|
| 26. |
977770-01212
|
[1] |
GASKET;LIQUID
|
|
| 27. |
119332-92751
|
[1] |
WRENCH;FILTER
|
|
| 3. |
119305-01950
|
[1] |
PACK;SHIM
|
|
| 4. |
119660-01562
|
[1] |
GASKET
|
|
| 5. |
24311-000320
|
[2] |
O-RING
|
|
| 6. |
121520-01851
|
[1] |
GASKET
|
|
| 7. |
119305-03031
|
[1] |
GASKET;PLATE
|
|
| 8. |
119305-11310
|
[1] |
GASKET;BONNET
|
|
| 9. |
119260-11340
|
[4] |
SEAL;VALVE STEM
|
|
