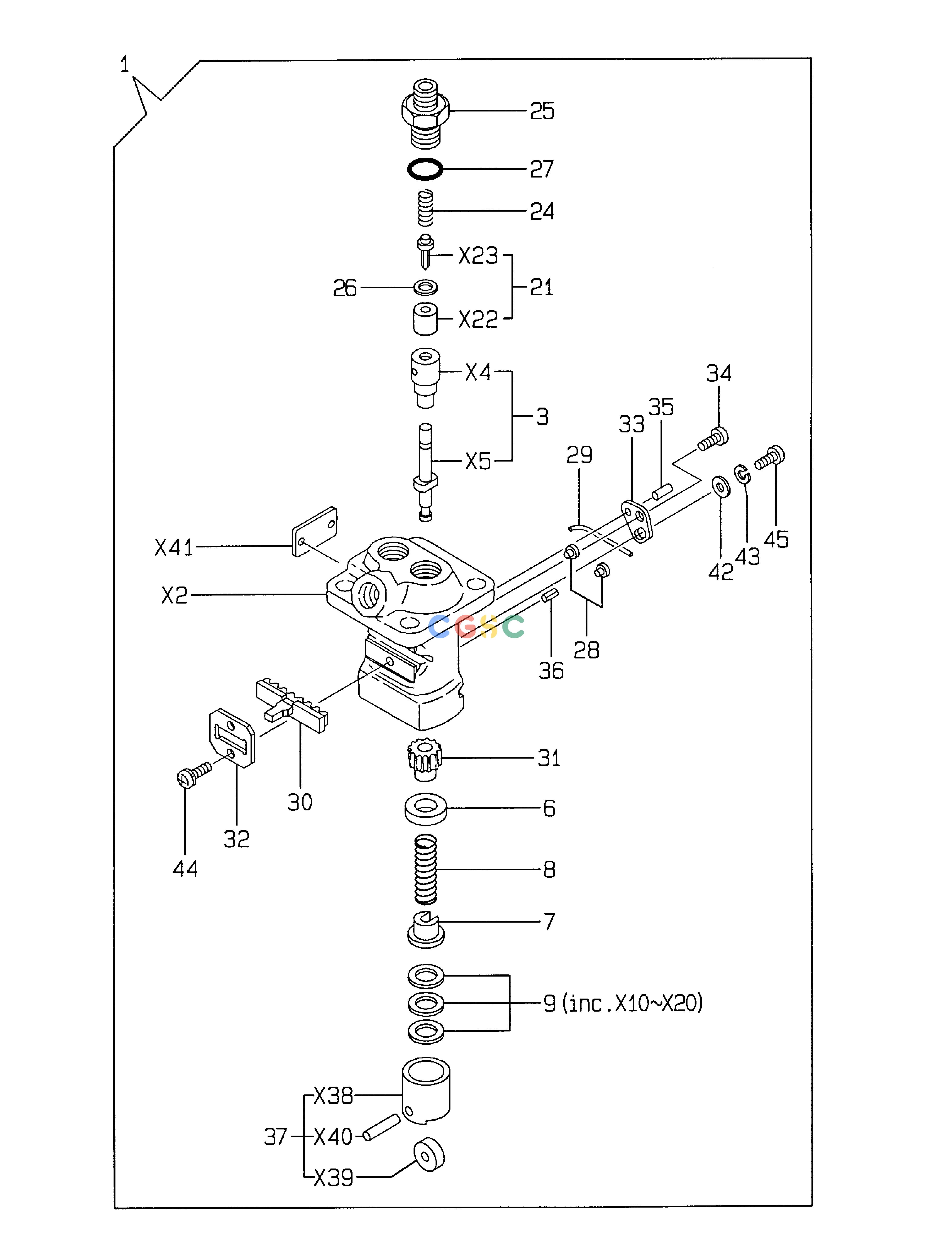

斗山零件查询FUEL INJECTION PUMP SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
719305-51100
|
[1] |
PUMP ASS'Y
|
|
| 10. |
119620-51260
|
[2] |
SHIM 0.3T
|
|
| 11. |
119620-51270
|
[2] |
SHIM 0.2T
|
|
| 12. |
119620-51280
|
[2] |
SHIM 0.1T
|
|
| 13. |
119620-51380
|
[2] |
SHIM T=0.15
|
|
| 14. |
119620-51390
|
[2] |
SHIM T=0.25
|
|
| 15. |
119620-51740
|
[2] |
SHIM T=0.35
|
|
| 16. |
119620-51750
|
[2] |
SHIM T=0.40
|
|
| 17. |
119620-51760
|
[2] |
SHIM T=0.45
|
|
| 18. |
119620-51770
|
[2] |
SHIM T=0.50
|
|
| 19. |
119620-51780
|
[2] |
SHIM T=0.55
|
|
| 2. |
119305-51010
|
[1] |
BODY;FUEL PUMP
|
|
| 20. |
119620-51790
|
[2] |
SHIM T=0.60
|
|
| 21. |
119225-51300
|
[2] |
VALVE;DELIVERY
|
|
| 22. |
119225-51310
|
[2] |
SEAT;DELIVERY
|
|
| 23. |
119225-51320
|
[2] |
VALVE;DELIVERY
|
|
| 24. |
105546-51330
|
[2] |
SPRING;DELIV.VALVE
|
|
| 25. |
119620-51340
|
[2] |
HOLDER;DELIV.VALVE
|
|
| 26. |
119620-51350
|
[2] |
GASKET;DELIVERY
|
|
| 27. |
119620-51370
|
[2] |
O-RING
|
|
| 28. |
119620-51450
|
[2] |
GUIDE;PLUNGER
|
|
| 29. |
174307-51460
|
[1] |
PIN
|
|
| 3. |
119225-51100
|
[2] |
PLUNGER;BARREL
|
|
| 30. |
119305-51500
|
[1] |
RACK
|
|
| 31. |
119620-51510
|
[2] |
PINION
|
|
| 32. |
119305-51530
|
[1] |
RETAINER;RACK
|
|
| 33. |
119620-51650
|
[1] |
PLATE
|
|
| 34. |
119620-51660
|
[1] |
SCREW
|
|
| 35. |
119620-51670
|
[1] |
PIN
|
|
| 36. |
119620-51680
|
[1] |
PIN
|
|
| 37. |
119620-51700
|
[2] |
TAPPET ASS'Y
|
|
| 38. |
119620-51200
|
[2] |
GUIDE
|
|
| 39. |
119620-51220
|
[2] |
ROLLER
|
|
| 4. |
119225-51110
|
[2] |
PLUNGER;BARREL
|
|
| 40. |
119620-51230
|
[2] |
PIN;ROLLER
|
|
| 41. |
119305-51920
|
[1] |
LABEL
|
|
| 42. |
22137-040000
|
[1] |
WASHER;POLISHED
|
|
| 43. |
22217-040000
|
[1] |
WASHER;SPRING
|
|
| 44. |
26022-040082
|
[2] |
SCREW M4X8
|
|
| 45. |
26587-040102
|
[1] |
SCREW M4X10
|
|
| 5. |
119225-51130
|
[2] |
PLUNGER
|
|
| 6. |
119620-51170
|
[2] |
RETAINER
|
|
| 7. |
119620-51180
|
[2] |
RETAINER
|
|
| 8. |
119620-51190
|
[2] |
SPRING;PLUNGER
|
|
| 9. |
119620-51250
|
[2] |
PACK;SHIM
|
|
