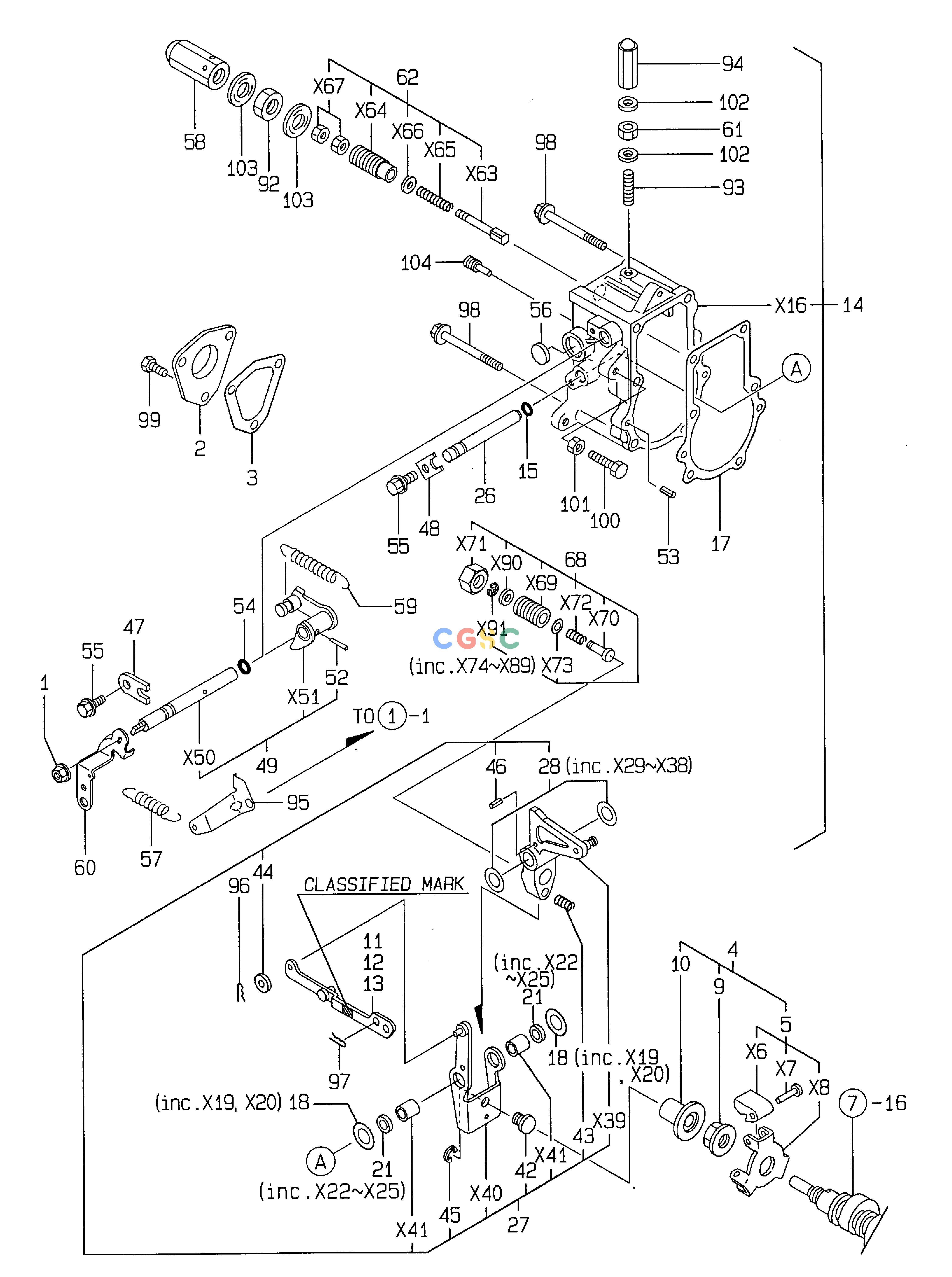

斗山零件查询GOVERNOR SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
481 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
194990-22050
|
[1] |
NUT;WASHER
|
|
| 10. |
119660-61341
|
[1] |
SLEEVE;GOVERNOR
|
|
| 100. |
26116-060304
|
[1] |
BOLT M6X30
|
|
| 101. |
26756-060002
|
[1] |
NUT;LOCK M6
|
|
| 102. |
22190-060003
|
[2] |
WASHER;SEAL
|
|
| 103. |
22190-120002
|
[2] |
WASHER;SEAL
|
|
| 104. |
124250-03640
|
[1] |
SCREW;STOP
|
|
| 11. |
119285-61120
|
[1] |
LINK L88.8
|
|
| 12. |
119285-61130
|
[1] |
LINK L88.6
|
|
| 13. |
119285-61140
|
[1] |
LINK L89.0
|
|
| 14. |
119285-61200
|
[1] |
GOVERNOR CASE ASS'Y
|
|
| 15. |
129155-51280
|
[1] |
O-RING
|
|
| 16. |
119660-61013
|
[1] |
CASE;GOVERNOR
|
|
| 17. |
119660-61052
|
[1] |
GASKET
|
|
| 18. |
119660-61460
|
[1] |
SHIM SET
|
|
| 19. |
119660-61470
|
[2] |
SHIM T=0.1
|
|
| 2. |
119660-61060
|
[1] |
COVER;GOVERNOR CASE
|
|
| 20. |
119660-61480
|
[2] |
SHIM T=0.2
|
|
| 21. |
129155-61480
|
[2] |
SPACER ASS'Y
|
|
| 22. |
129156-61460
|
[2] |
SPACER T=0.6
|
|
| 23. |
129156-61470
|
[2] |
SPACER T=0.7
|
|
| 24. |
129156-61480
|
[2] |
SPACER T=1.2
|
|
| 25. |
129156-61490
|
[2] |
SPACER T=0.8
|
|
| 26. |
119660-61491
|
[1] |
SHAFT;GOVERNOR
|
|
| 27. |
119285-61500
|
[1] |
GOVERNOR LEVER ASS'Y
|
|
| 28. |
174307-51700
|
[2] |
SHIM SET
|
|
| 29. |
174307-51710
|
[2] |
SHIM 0.1mm
|
|
| 3. |
119660-61071
|
[1] |
GASKET
|
|
| 30. |
174307-51720
|
[2] |
SHIM 0.2mm
|
|
| 31. |
174307-51730
|
[2] |
SHIM 0.3mm
|
|
| 32. |
174307-51740
|
[2] |
SHIM 0.15mm
|
|
| 33. |
174307-51750
|
[2] |
SHIM 0.05mm
|
|
| 34. |
174307-51760
|
[2] |
SHIM 0.25mm
|
|
| 35. |
174307-51770
|
[2] |
SHIM 0.35mm
|
|
| 36. |
174307-51780
|
[2] |
SHIM 0.40mm
|
|
| 37. |
174307-51790
|
[2] |
SHIM 0.45mm
|
|
| 38. |
174307-51800
|
[2] |
SHIM 0.50mm
|
|
| 39. |
119660-61512
|
[1] |
LEVER;TENSION
|
|
| 4. |
119600-61100
|
[1] |
DRIVING SET;GOV.
|
|
| 40. |
119600-61520
|
[1] |
LEVER;GOVERNOR
|
|
| 41. |
121450-61520
|
[2] |
BEARING;NEEDLE
|
|
| 42. |
119600-61541
|
[1] |
SHIFTER;P.T.O
|
|
| 43. |
119600-61650
|
[1] |
SPRING;STARTING
|
|
| 44. |
22117-040000
|
[2] |
WASHER M4
|
|
| 45. |
22272-000040
|
[1] |
CIRCLIP
|
|
| 46. |
22351-030014
|
[1] |
PIN;SPRING
|
|
| 47. |
119600-61900
|
[1] |
RETAINER;SHAFT
|
|
| 48. |
119660-61901
|
[1] |
RETAINER;SHAFT
|
|
| 49. |
119285-66090
|
[1] |
REGULATOR SHAFT ASS'Y
|
|
| 5. |
119600-61200
|
[1] |
WEIGHT ASS'Y;GOV.
|
|
| 50. |
119285-66060
|
[1] |
SHAFT;REGULATOR
|
|
| 51. |
119285-66071
|
[1] |
LEVER;REGULATOR
|
|
| 52. |
22322-030160
|
[1] |
PIN;TAPER
|
|
| 53. |
22351-040010
|
[2] |
PIN;SPRING
|
|
| 54. |
24341-000070
|
[1] |
O-RING
|
|
| 55. |
26106-060102
|
[2] |
BOLT M6X10
|
|
| 56. |
119640-61400
|
[1] |
PLUG
|
|
| 57. |
119840-61870
|
[1] |
SPRING
|
|
| 58. |
129100-61930
|
[1] |
NUT;CAP
|
|
| 59. |
119600-66020
|
[1] |
SPRING;REGULATOR
|
|
| 6. |
119600-61210
|
[3] |
WEIGHT;GOVERNOR
|
|
| 60. |
119640-66051
|
[1] |
HANDLE;REGULATOR
|
|
| 61. |
124550-66370
|
[1] |
NUT;LOCK M6
|
|
| 62. |
119600-66530
|
[1] |
TORQUE SPRING ASS'Y
|
|
| 63. |
129100-61460
|
[1] |
PIN;CONTROLLER
|
|
| 64. |
119600-66560
|
[1] |
BODY;CONTROLLER
|
|
| 65. |
119600-66590
|
[1] |
SPRING
|
|
| 66. |
124950-66590
|
[1] |
SHIM SET
|
|
| 67. |
26756-050002
|
[2] |
NUT;LOCK M5
|
|
| 68. |
119654-66700
|
[1] |
ANGLEICH ASS'Y
|
|
| 69. |
129155-61570
|
[1] |
CASE;ANGLEICH
|
|
| 7. |
119660-61220
|
[3] |
PIN;GOVERNOR WEIGHT
|
|
| 70. |
129155-61580
|
[1] |
SHIFTER;ANGLEICH
|
|
| 71. |
129155-61590
|
[1] |
NUT
|
|
| 72. |
129156-61600
|
[1] |
SPRING;ANGLEICH
|
|
| 73. |
129555-61800
|
[1] |
SHIM SET
|
|
| 74. |
112100-51630
|
[1] |
SHIM;FUEL CONTROL
|
|
| 75. |
112100-51640
|
[1] |
SHIM
|
|
| 76. |
112100-51650
|
[1] |
SHIM;FUEL CONTROL
|
|
| 77. |
129555-61810
|
[1] |
SHIM T=0.6
|
|
| 78. |
129555-61820
|
[1] |
SHIM T=0.65
|
|
| 79. |
129555-61830
|
[1] |
SHIM T=0.7
|
|
| 8. |
119660-61291
|
[1] |
SUPPORT;GOV. WEIGHT
|
|
| 80. |
129555-61840
|
[1] |
SHIM T=0.75
|
|
| 81. |
129555-61850
|
[1] |
SHIM T=0.8
|
|
| 82. |
129555-61860
|
[1] |
SHIM T=0.85
|
|
| 83. |
129555-61870
|
[1] |
SHIM T=0.9
|
|
| 84. |
129555-61880
|
[1] |
SHIM T=0.95
|
|
| 85. |
129555-61890
|
[1] |
SHIM T=1.0
|
|
| 86. |
129555-61900
|
[1] |
SHIM T=1.05
|
|
| 87. |
129555-61910
|
[1] |
SHIM T=1.1
|
|
| 88. |
129555-61920
|
[1] |
SHIM T=1.15
|
|
| 89. |
129555-61930
|
[1] |
SHIM T=1.2
|
|
| 9. |
119660-61300
|
[1] |
NUT;GOVERNOR WEIGHT
|
|
| 90. |
22117-050000
|
[1] |
WASHER
|
|
| 91. |
22272-000040
|
[1] |
CIRCLIP
|
|
| 92. |
26776-120002
|
[1] |
NUT;LOCK M12
|
|
| 93. |
171002-66830
|
[1] |
SCREW;ADJUST
|
|
| 94. |
119600-66840
|
[1] |
NUT;CAP
|
|
| 95. |
119656-66910
|
[1] |
HOOK
|
|
| 96. |
22360-040000
|
[1] |
PIN;SNAP
|
|
| 97. |
22360-060000
|
[1] |
PIN;SNAP
|
|
| 98. |
26106-060702
|
[6] |
BOLT M6X70
|
|
| 99. |
26116-050102
|
[3] |
BOLT M5X10
|
|
