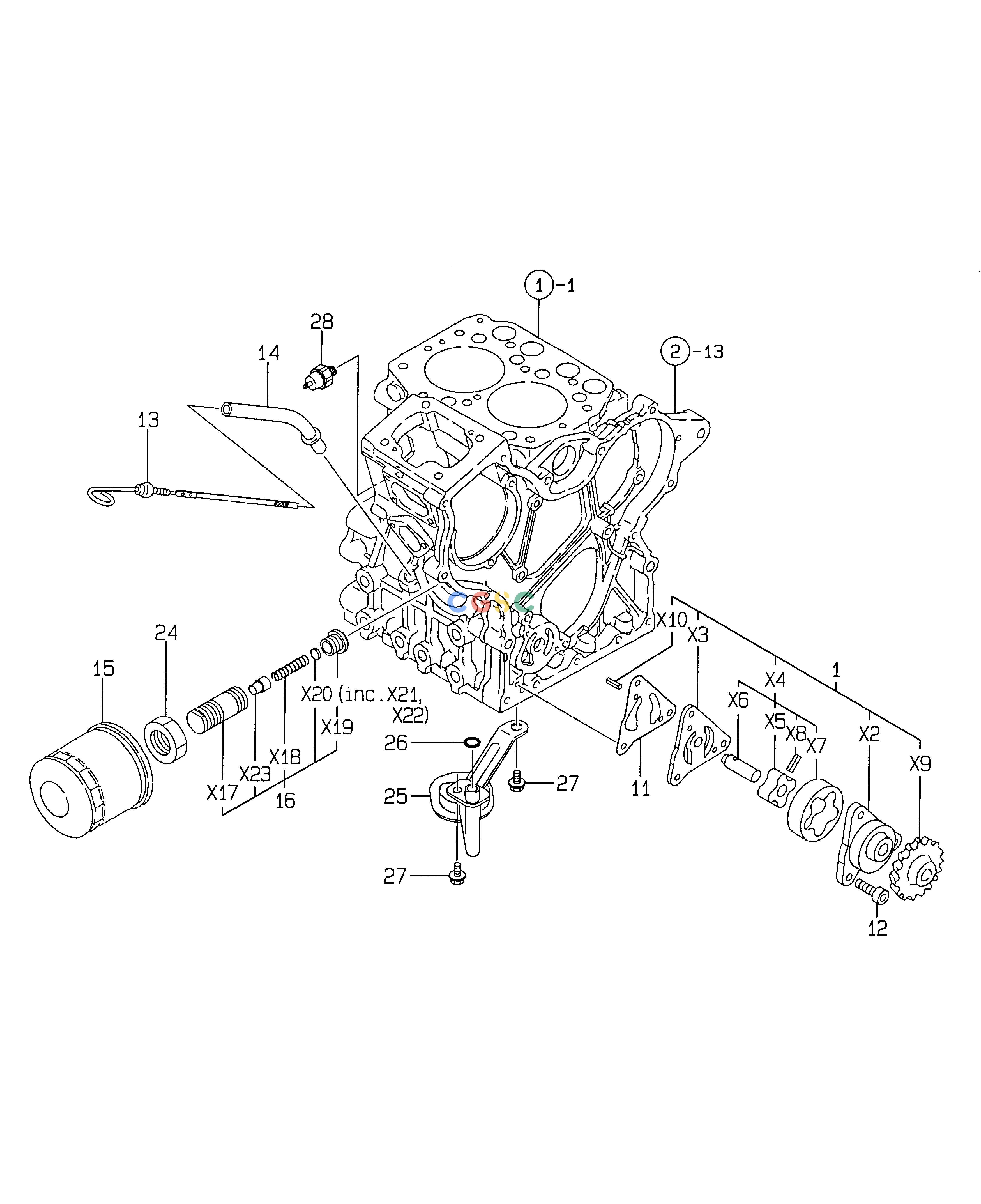

斗山零件查询OIL SYSTEM SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
242 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
119260-32000
|
[1] |
PUMP ASS'Y;LUB.OIL
|
|
| 10. |
22351-040012
|
[2] |
PIN;SPRING
|
|
| 11. |
119660-32020
|
[1] |
GASKET;L.O.PUMP
|
|
| 12. |
26450-060202
|
[3] |
BOLT M6X20
|
|
| 13. |
119332-34880
|
[1] |
DIPSTICK;LUB.OIL
|
|
| 14. |
119332-34890
|
[1] |
GUIDE;DIPSTICK
|
|
| 15. |
119305-35150
|
[1] |
FILTER;LUB.OIL
|
|
| 16. |
119225-35300
|
[1] |
OIL PRESS VALVE ASS'Y
|
|
| 17. |
119225-35310
|
[1] |
BODY
|
|
| 18. |
119260-35320
|
[1] |
SPRING
|
|
| 19. |
119225-35330
|
[1] |
RETAINER
|
|
| 2. |
119260-32010
|
[1] |
BODY
|
|
| 20. |
119225-35340
|
[1] |
PACK;SHIM
|
|
| 21. |
119225-35400
|
[2] |
SHIM 0.2T
|
|
| 22. |
119225-35410
|
[2] |
SHIM 0.3T
|
|
| 23. |
119225-35350
|
[1] |
VALVE
|
|
| 24. |
129150-35350
|
[1] |
NUT M6
|
|
| 25. |
119332-35080
|
[1] |
PIPE;OIL INLET
|
|
| 26. |
119209-35030
|
[1] |
O-RING
|
|
| 27. |
26106-060122
|
[2] |
BOLT M6X12
|
|
| 28. |
124160-39450
|
[1] |
SWITCH;OIL PRESSURE
|
|
| 3. |
119260-32080
|
[1] |
COVER
|
|
| 4. |
119260-32150
|
[1] |
ROTOR ASS'Y
|
|
| 5. |
119260-32100
|
[1] |
ROTOR;INNER
|
|
| 6. |
119260-32110
|
[1] |
SHAFT
|
|
| 7. |
119260-32120
|
[1] |
ROTOR;OUTER
|
|
| 8. |
124465-32171
|
[1] |
PIN
|
|
| 9. |
119660-32200
|
[1] |
GEAR;LUB.OIL PUMP
|
|
