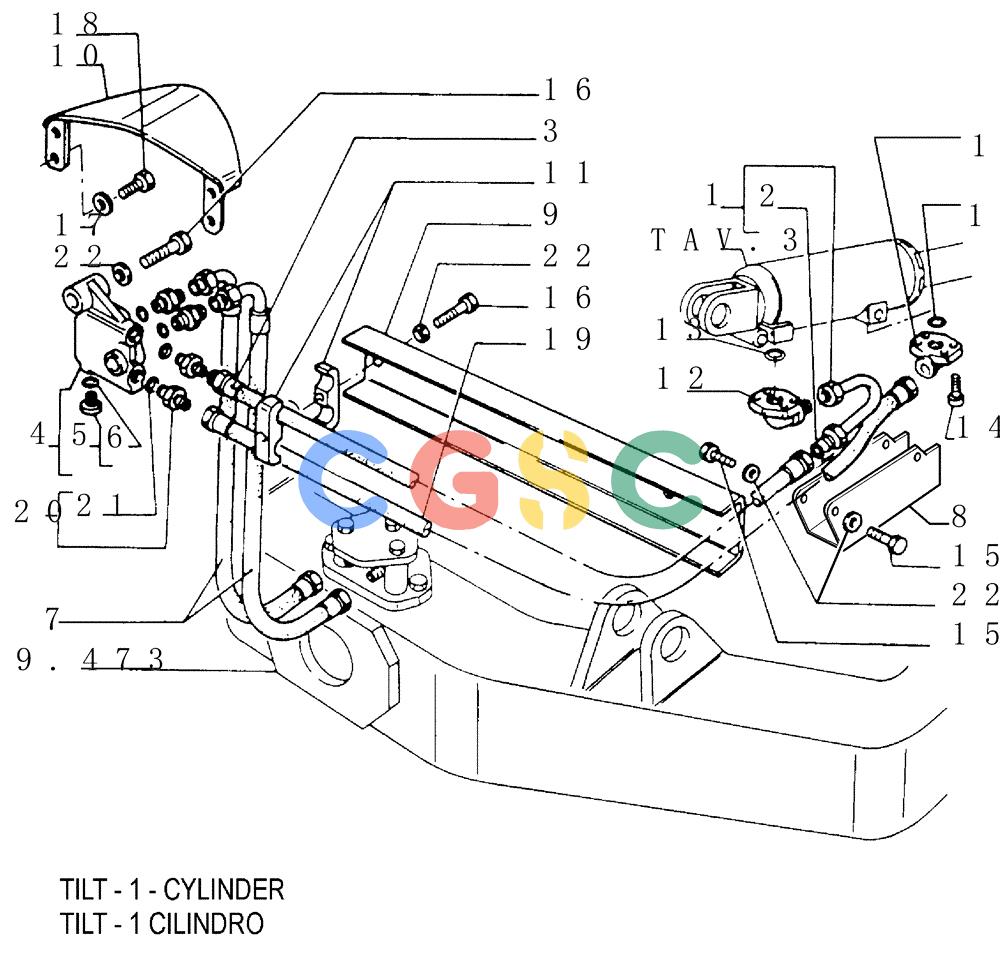

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.481[02]) - HYDRAULIC TILT - OPTIONAL CODE 79107217 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
161 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79103039 | [1] | RIGID TUBE | LEC- ASSY |
| 2. | 70923841 | [1] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
| 3. | 79103403 | [1] | FLEXIBLE HOSE | LEC |
| 4. | 79107202 | [1] | ADJUSTING PAD | LEC- ASSY |
| 5. | 10118740 | [1] | PLUG,M14 x 1.5 x 15, Brass | LECAssy |
| 6. | 14437785 | [1] | O-RING,11.3mm ID x 2.4mm | LEC |
| 7. | 79103388 | [2] | FLEXIBLE HOSE | LEC |
| 8. | 76041947 | [1] | GUARD | LEC |
| 9. | 79091679 | [1] | GUARD | LEC |
| 10. | 79089955 | [1] | GUARD | LEC |
| 11. | 8284842 | [4] | BLOCK | LEC |
| 12. | 79103924 | [2] | FLANGE | LEC |
| 13. | 70924191 | [2] | | NNA Superseded by part number: 86503303 |
| 14. | 14306431 | [8] | HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd | LEC |
| 15. | 11112131 | [4] | SCREW,Hex, M12 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43258 |
| 16. | 11113431 | [4] | SCREW,Hex, M12 x 60mm, Cl 10.9 | LEC Superseded by part number: 43263 |
| 17. | 79011527 | [4] | WASHER,8.6mm ID x 22mm OD x 5mm Thk | LEC |
| 18. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 19. | 76041948 | [1] | FLEXIBLE HOSE | LEC |
| 20. | 78100097 | [4] | HYD CONNECTOR | LEC- ASSY Superseded by part number: 86579675 |
| 22. | 14496731 | [8] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 21. | 14437885 | [1] | O-RING,13.30mm ID x 2.40mm | LEC |
