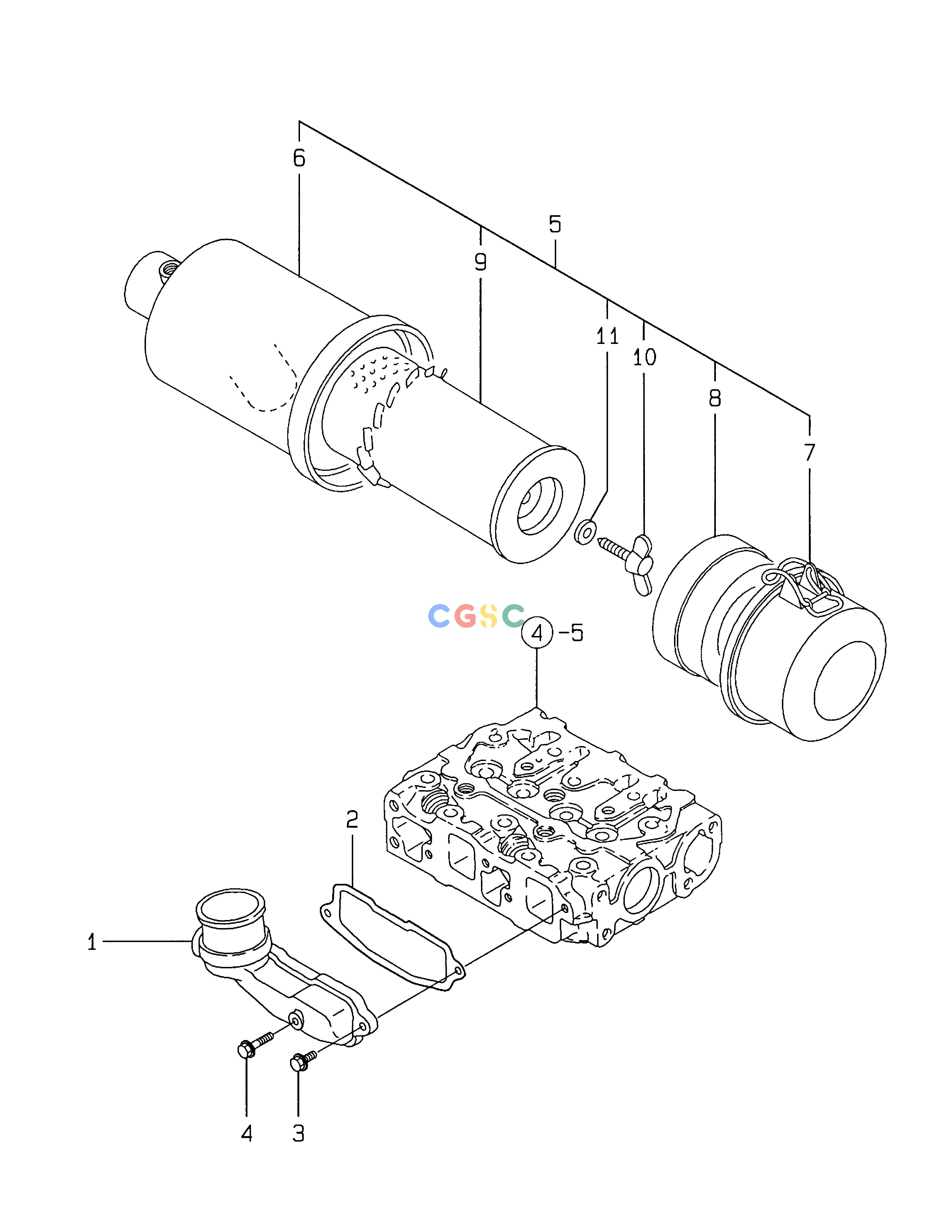

斗山零件查询SUCTION MANIFOLD & AIR CLEANER SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
734 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
119305-12150
|
[1] |
MANIFOLD;SUCTION
|
|
| 10. |
124064-12680
|
[1] |
BOLT;WING
|
|
| 11. |
124064-12690
|
[1] |
WASHER
|
|
| 2. |
119305-12160
|
[1] |
GASKET;SUC.MANIFOLD
|
|
| 3. |
26106-060162
|
[2] |
BOLT M6X16
|
|
| 4. |
26106-060282
|
[1] |
BOLT M6X28
|
|
| 5. |
171033-12500
|
[1] |
CLEANER;AIR
|
|
| 6. |
171033-12540
|
[1] |
CASE ASS'Y
|
|
| 7. |
171033-12560
|
[1] |
DUST PAN ASS'Y
|
|
| 8. |
121465-12700
|
[1] |
RETAINER
|
|
| 9. |
171033-12510
|
[1] |
ELEMENT;AIR CLEANER
|
|
