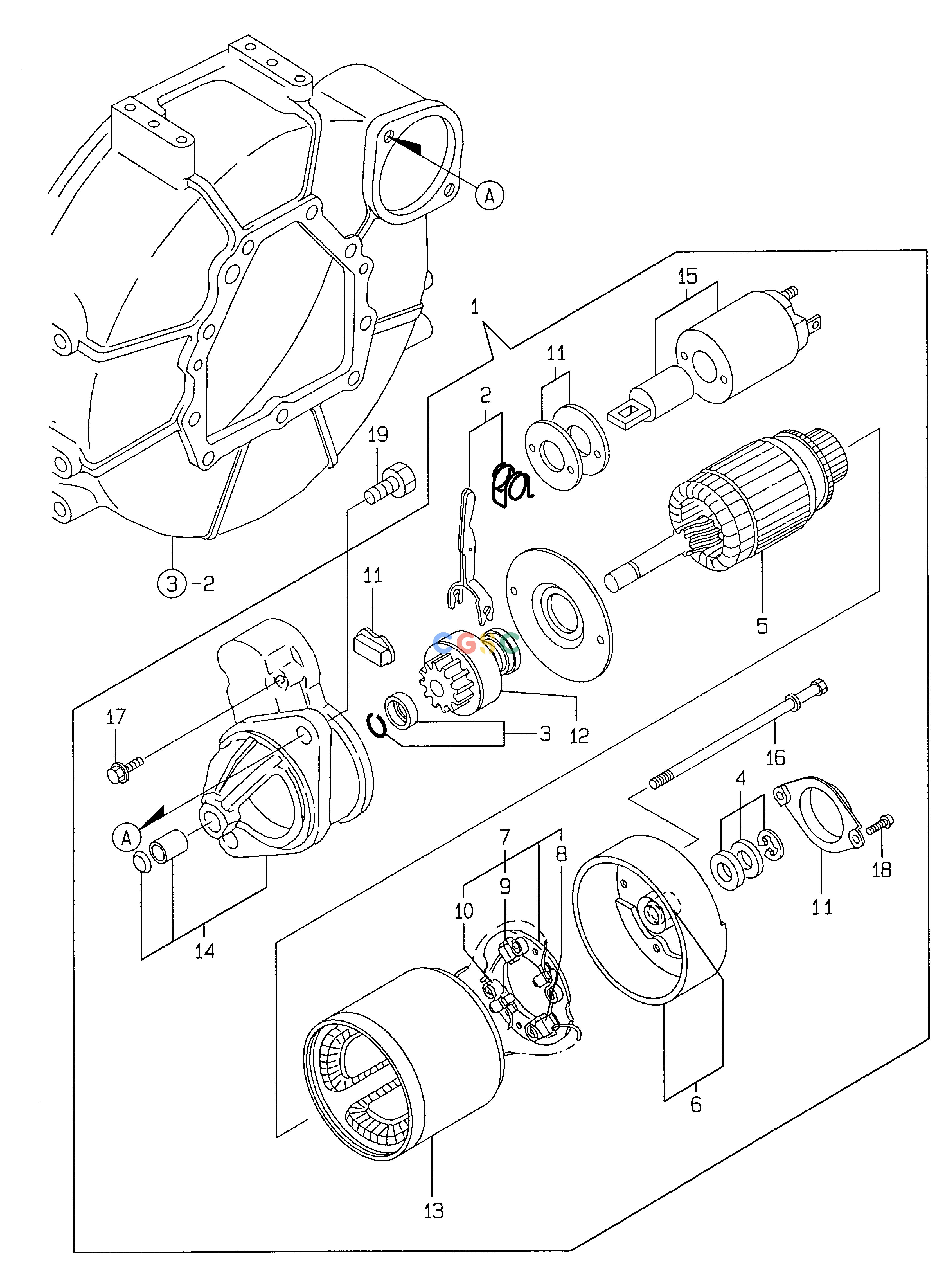

斗山零件查询STARTING MOTOR SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
181 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
119226-77010
|
[1] |
STARTER 12V-0.8KW
|
|
| 10. |
114371-79060
|
[4] |
SPRING;BRUSH
|
|
| 11. |
114371-77170
|
[1] |
COVER KIT;DUST
|
|
| 12. |
119226-77650
|
[1] |
PINION ASS'Y
|
|
| 13. |
124097-77710
|
[1] |
YOKE ASS'Y
|
|
| 14. |
124097-77760
|
[1] |
CASE ASS'Y;GEAR
|
|
| 15. |
124195-77760
|
[1] |
MAGNETIC SWITCH ASS'Y
|
|
| 16. |
124195-77770
|
[2] |
BOLT;THROUGH
|
|
| 17. |
114371-79070
|
[2] |
BOLT M6X37
|
|
| 18. |
26022-040122
|
[2] |
SCREW M4X12
|
|
| 19. |
26116-120252
|
[2] |
BOLT M12X25
|
|
| 2. |
X2114560130
|
[1] |
LEVER KIT;SHIFT
|
|
| 3. |
X2114715500
|
[1] |
STOPPER SET;PINION
|
|
| 4. |
X2114811000
|
[1] |
WASHER;THRUST
|
|
| 5. |
114371-77110
|
[1] |
ARMATURE
|
|
| 6. |
114371-77140
|
[1] |
COVER ASS'Y;REAR
|
|
| 7. |
114371-77160
|
[1] |
HOLDER ASS'Y;BRUSH
|
|
| 8. |
114371-79040
|
[2] |
BRUSH(-)
|
|
| 9. |
114371-79050
|
[1] |
BRUSH(+)
|
|
