纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.481[04]) - HYDRAULIC TILT - OPTIONAL CODE 79107217 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
550 次

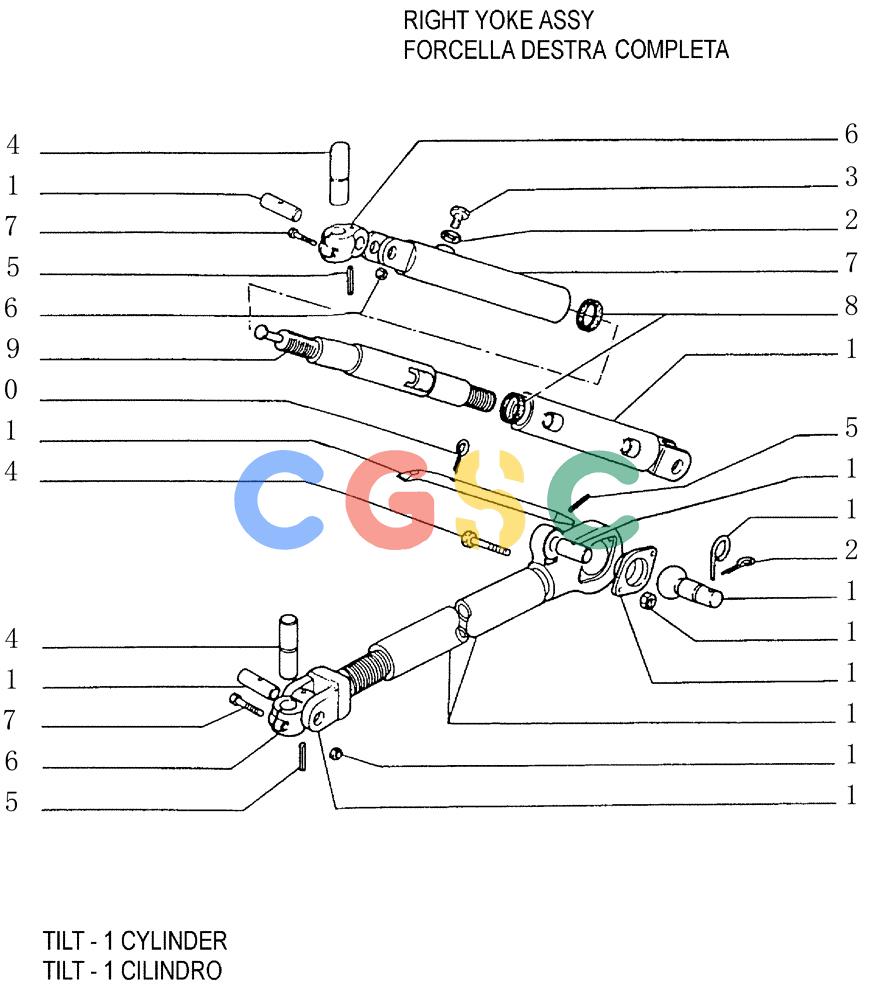

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8295721 | [3] | PIN,35mm OD x 86mm L | LEC |
| 2. | 14497131 | [1] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 3. | 8273641 | [1] | STEP BOLT,M20 x 1.5 x 40mm | LEC |
| 4. | 8295706 | [2] | PIN,35mm OD x 104mm L | LEC |
| 5. | 13917170 | [3] | ROLL PIN,M10 x 55, Coiled | JES10,45X60 |
| 6. | 8295734 | [2] | CLAMP | LEC |
| 7. | 79039543 | [1] | SLEEVE | LEC |
| 8. | 8295731 | [2] | SEAL,54.95mm ID x 70.05mm OD x 7.5mm Thk | LEC |
| 9. | 79039538 | [1] | TIE-ROD | LEC |
| 10. | 8295683 | [1] | ROD | LEC |
| 11. | 8295704 | [1] | PIN,68mm OD x 224mm L | LEC |
| 12. | 8299999 | [1] | ROLL PIN | LEC |
| 13. | 8285330 | [2] | FLANGE | LEC |
| 14. | 11113631 | [2] | SCREW,Hex, M12 x 70mm, Cl 10.9 | LEC Superseded by part number: 86505259 |
| 15. | 11702921 | [2] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 16. | 12577521 | [2] | NUT,M12 x 1.75 | LEC |
| 17. | 11113831 | [2] | SCREW,Hex, M12 x 80mm, Cl 10.9 | LEC Superseded by part number: 11113821, 412085 |
| 18. | 8295725 | [1] | TIE-ROD | LEC |
| 19. | 8295703 | [1] | TIE-ROD | LEC |
| 20. | 5112606 | [2] | COTTER PIN | TTF |
| 21. | 8296559 | [1] | PIN,24mm OD | LEC |
