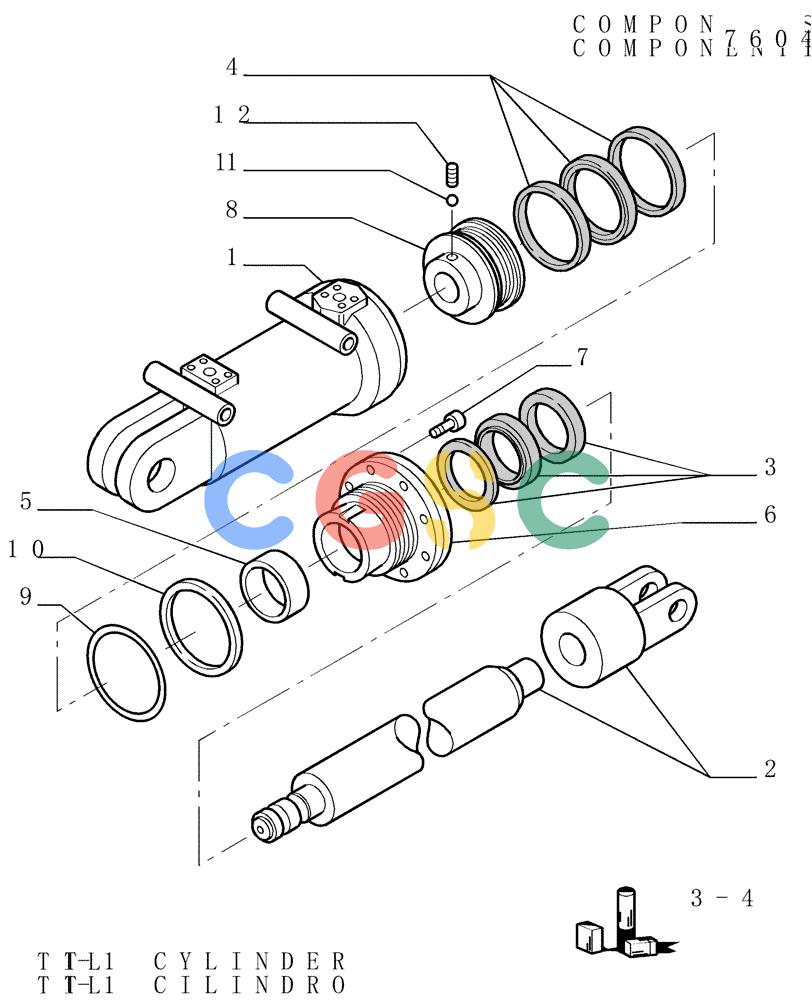

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.481[05]) - HYDRAULIC TILT - CYLINDER - OPTIONAL CODE 79107217 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
424 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041938 | [1] | BARREL | LEC |
| 2. | 76041939 | [1] | TIE-ROD | LEC |
| 3. | 79071472 | [1] | SEAL | LEC |
| 4. | 79099829 | [1] | SEAL | LEC |
| 5. | 76041941 | [1] | RING | LEC Superseded by part number: 76053659 |
| 6. | 76041940 | [1] | CYLINDER HEAD | LEC |
| 7. | 14420571 | [9] | HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9 | LEC |
| 8. | 76041942 | [1] | PISTON | LEC |
| 9. | 14465780 | [1] | O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro | BHB(M91.67 ID x 3.53 Thk) Superseded by part number: |
| 10. | 79021911 | [1] | RING,94mm ID x 100mm OD x 6mm Thk | LEC |
| 11. | 76041936 | [1] | BALL | LEC |
| 12. | 76041943 | [1] | SCREW | LEC |
