斗山零件查询TRACK PIPING SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
779 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

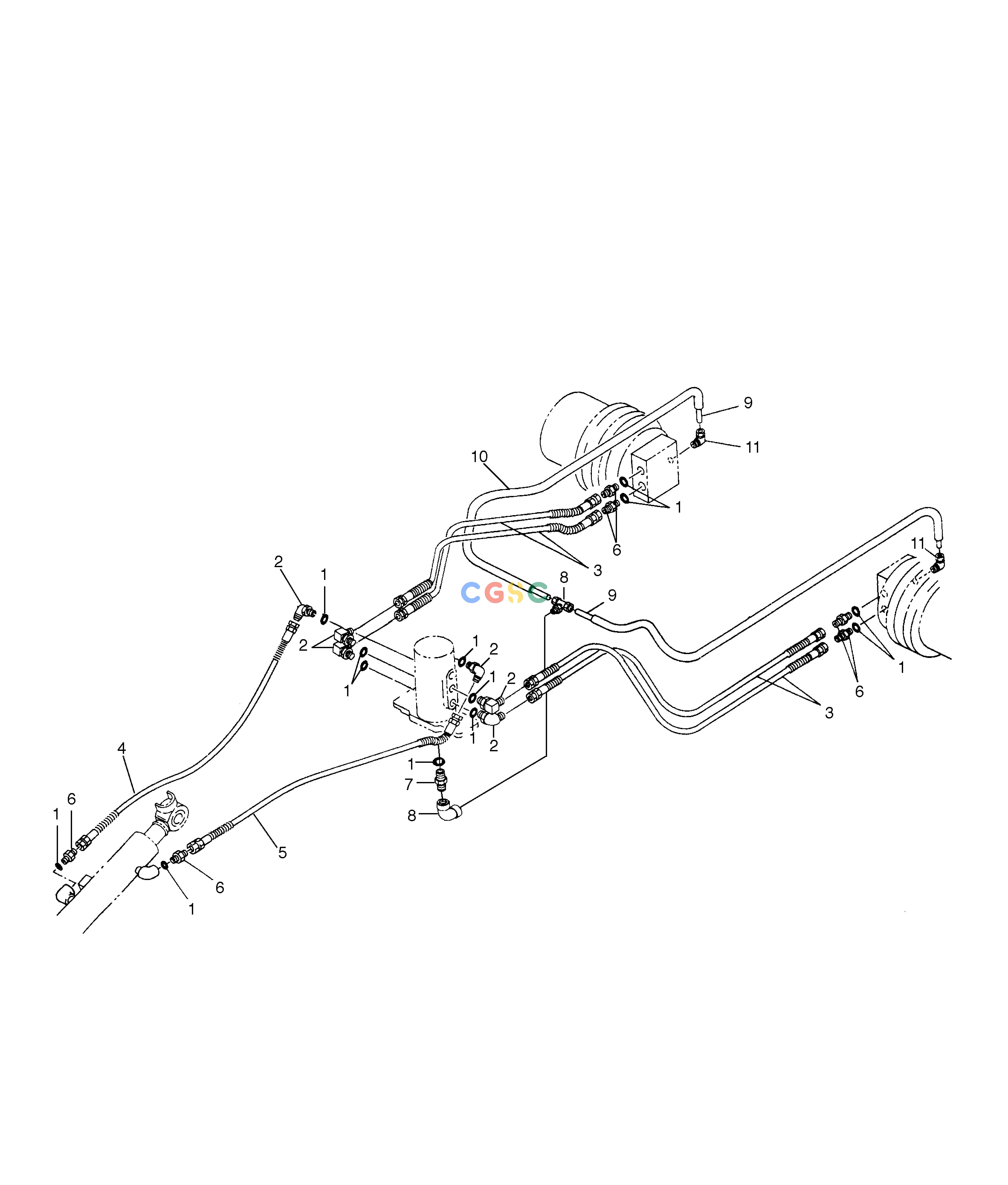

2400-1886
|
[-] |
TRACK PIPING ASS'Y
|
|
| 1. |
S8000111
|
[12] |
O-RING
|
|
| 10. |
2185-1696
|
[2] |
HOSE;PROTECTOR
|
|
| 11. |
2181-9098
|
[2] |
ELBOW
|
|
| 2. |
2181-1702D4
|
[6] |
ELBOW
|
|
| 3. |
2184-1054D67
|
[4] |
HOSE PF1/4-670L
|
|
| 4. |
2184-1054D66
|
[1] |
HOSE PF1/4-700L
|
|
| 5. |
2184-1054D45
|
[1] |
HOSE PF1/4-550L
|
|
| 6. |
2181-1126D14
|
[6] |
ADAPTER
|
|
| 7. |
2181-1703D2
|
[1] |
ELBOW PFO1/4-PT1/4
|
|
| 8. |
2181-9095
|
[1] |
ELBOW PT1/4
|
|
| 9. |
2185-1006D27
|
[2] |
TUBE 900L
|
|
