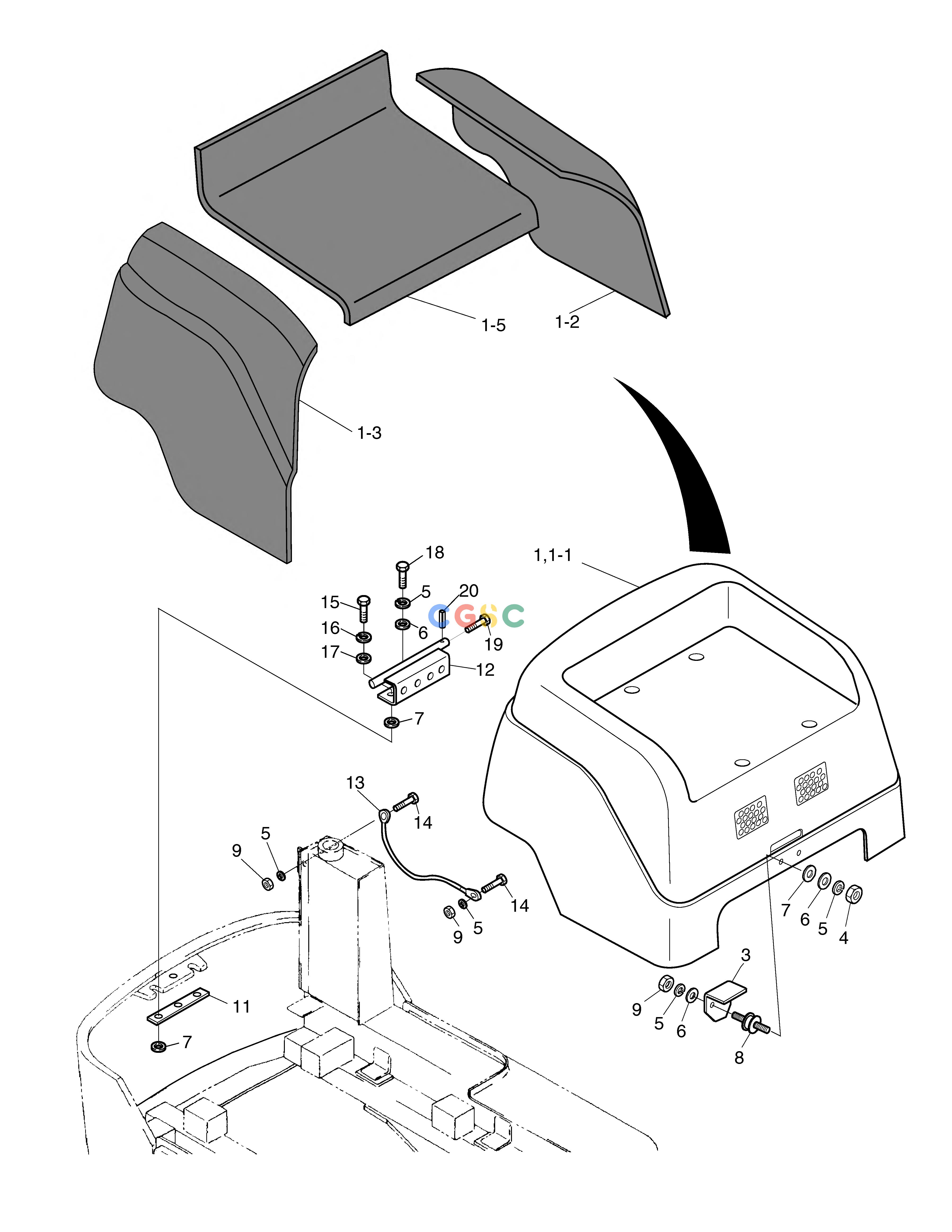

斗山零件查询BONNET SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
752 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2621-2783
|
[-] |
BONNET ASS'Y
|
|
| 1. |
2621-2887G
|
[1] |
BONNET ASS'Y
|
|
| 1. |
2621-2887H
|
[1] |
BONNET ASS'Y
|
2621-2887J
|
| 1. |
2621-2887J
|
[1] |
BONNET ASS'Y
|
|
| 1-1. |
2621-2782G
|
[1] |
BONNET
|
|
| 1-1. |
2621-2782H
|
[1] |
BONNET
|
|
| 1-2. |
2161-1959
|
[1] |
SPONGE(LH)
|
2162-1959A
|
| 1-2. |
2161-1959A
|
[1] |
SPONGE(LH)
|
|
| 1-3. |
2161-1960
|
[1] |
SPONGE(RH)
|
2161-1960A
|
| 1-3. |
2161-1960A
|
[1] |
SPONGE(RH)
|
|
| 1-5. |
2161-1962
|
[1] |
SPONGE
|
2161-1962A
|
| 1-5. |
2161-1962A
|
[1] |
SPONGE
|
|
| 11. |
2621-2779
|
[1] |
PLATE
|
|
| 11. |
2621-2779A
|
[1] |
PLATE
|
|
| 12. |
2171-1058A
|
[1] |
HINGE
|
2171-1058B
|
| 12. |
2171-1058B
|
[1] |
HINGE
|
|
| 13. |
2139-9063A
|
[1] |
CABLE;DOOR
|
|
| 14. |
S0509353
|
[2] |
BOLT M8X1.25X35
|
|
| 15. |
S0558253
|
[2] |
BOLT M10X1.5X35
|
|
| 16. |
S5102603
|
[2] |
. WASHER
|
|
| 17. |
S5010613
|
[2] |
WASHER
|
|
| 18. |
S0556053
|
[1] |
BOLT M8X1.25X35
|
|
| 19. |
S0508953
|
[2] |
BOLT M8X1.25X22
|
|
| 20. |
S5740900
|
[2] |
PIN;SPRING
|
|
| 3. |
2116-1462
|
[1] |
PLATE
|
|
| 4. |
S4402503
|
[2] |
NUT;CAP
|
|
| 5. |
S5102503
|
[9] |
. WASHER
|
|
| 6. |
S5010513
|
[9] |
WASHER
|
|
| 7. |
2114-1058D10
|
[6] |
WASHER
|
|
| 8. |
2161-1223A
|
[2] |
RUBBER;MOUNTING
|
|
| 9. |
S4012533
|
[4] |
NUT
|
|
