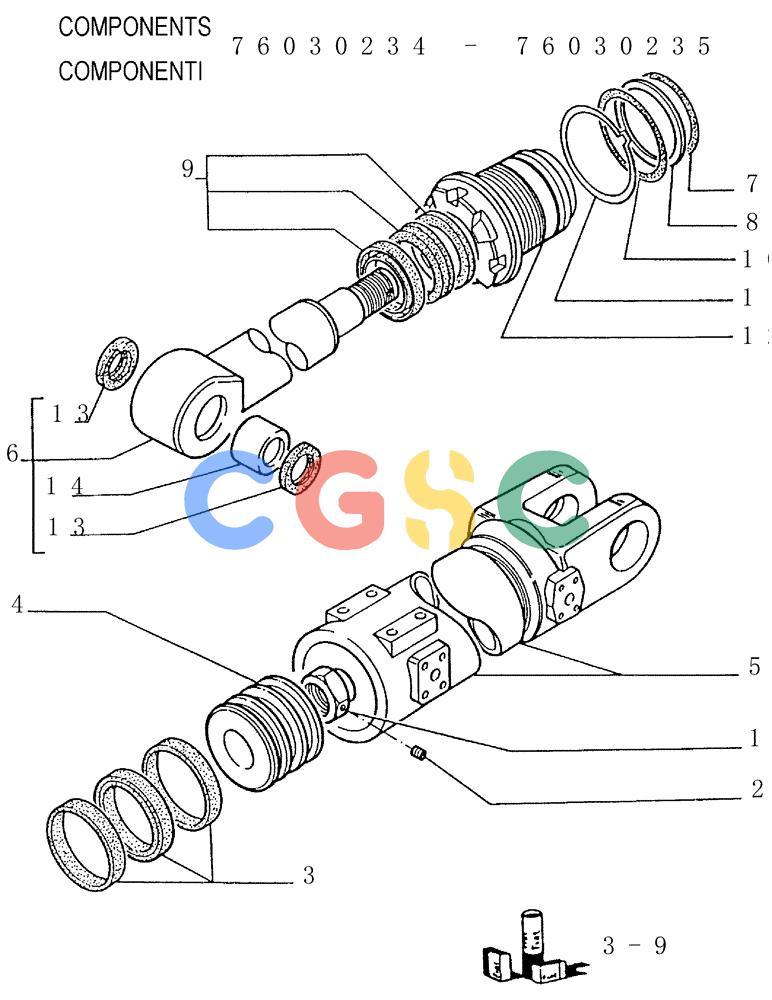

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.522[05]) - RIPPER (PD) - LIFT CYLINDERS - OPTIONAL CODE 76030342 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79099828 | [1] | NUT | LEC |
| 2. | 79099830 | [1] | SET SCREW,less Hex Socket, M10 x 1.5 x 10mm | LEC |
| 3. | 79099922 | [1] | SEAL | LEC |
| 4. | 79100367 | [1] | PISTON | LEC |
| 5. | 76030332 | [1] | ENGINE CYLINDER LINER | LEC- LEFT |
| 5. | 76030331 | [1] | ENGINE CYLINDER LINER | LEC- RIGHT |
| 6. | 79100365 | [1] | ROD | LEC- ASSY |
| 7. | 14465180 | [1] | O-RING,72.62mm ID x 3.53mm Width | BHB3,53X72,62 Superseded by part number: 14465181 |
| 8. | 8297295 | [1] | RING,73.8mm ID x 80mm OD x 1.5mm Thk | BHB |
| 9. | 79071471 | [1] | SEAL KIT | LEC |
| 10. | 14465480 | [1] | O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro | LEC2,62X72,69 Superseded by part number: 83911410, 510137 |
| 11. | 79099926 | [1] | RING,88.5mm ID x 97mm OD x 1mm Thk | LEC |
| 12. | 79099915 | [1] | BASE PLATE | LEC |
| 13. | 8288822 | [2] | SEAL | BHB Superseded by part number: 79065559 |
| 14. | 76004143 | [1] | BUSHING | LEC |
