纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.522[04]) - RIPPER (PD) - LIFT CYLINDERS PIPING - OPTIONAL CODE 76030342 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
685 次

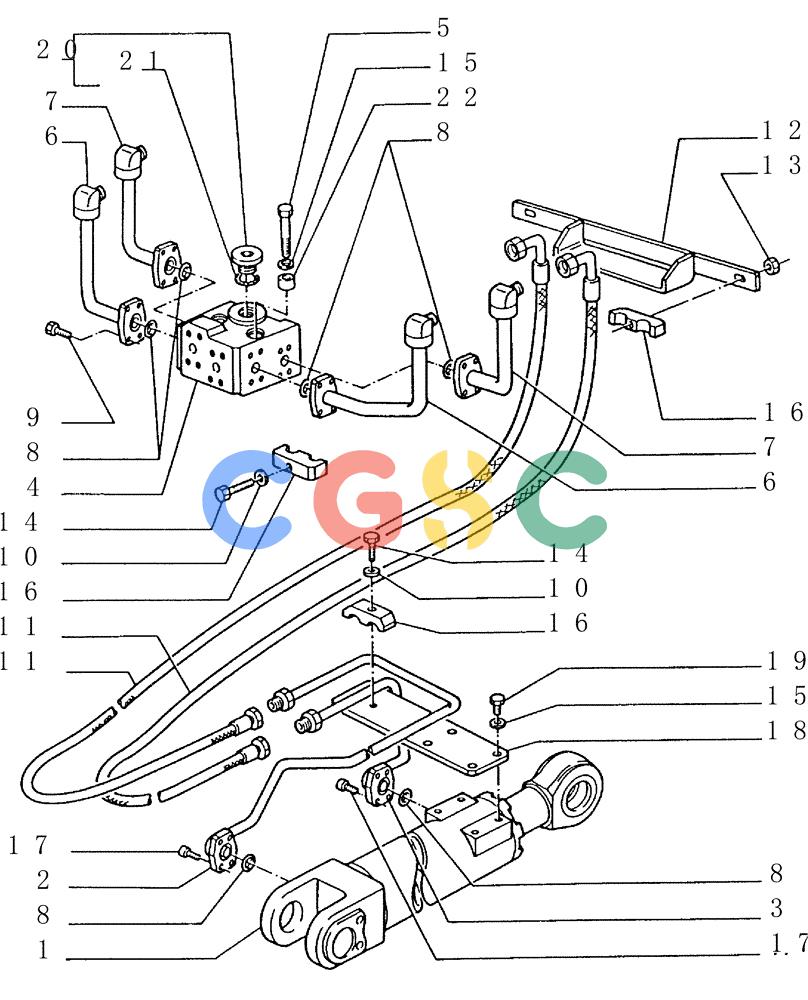

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76030235 | [1] | HYDRAULIC CYLINDER | LEC- LEFT ASSY SEE TAV.5 |
| 1. | 76030234 | [1] | HYDRAULIC CYLINDER | LEC- RIGHT ASSY SEE TAV.5 |
| 2. | 76029375 | [1] | RIGID TUBE | LEC- REAR LEFT |
| 2. | 76029377 | [1] | RIGID TUBE | LEC- REAR RIGHT |
| 3. | 76029378 | [1] | RIGID TUBE | LEC- FRONT RIGHT |
| 3. | 76029376 | [1] | RIGID TUBE | LEC- FRONT LEFT |
| 4. | 79106028 | [1] | BODY | LEC- DIVERTER VALVE |
| 5. | 11108631 | [2] | BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9 | BHB10X1,5X120 Superseded by part number: 73174475 |
| 6. | 76029364 | [1] | RIGID TUBE | LEC- RIGHT |
| 6. | 76029363 | [1] | RIGID TUBE | LEC- LEFT |
| 7. | 76029366 | [1] | RIGID TUBE | LEC- RIGHT |
| 7. | 76029365 | [1] | RIGID TUBE,12 mm ID, 16 mm OD, 140.5, 72 mm Length | LEC- LEFT |
| 8. | 14462880 | [8] | O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro | TTF Superseded by part number: 9706714 |
| 9. | 14359231 | [16] | SCREW,M8 x 22mm, Cl 10.9 | LEC |
| 10. | 14496531 | [10] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 11. | 76029387 | [4] | FLEXIBLE HOSE | LEC |
| 12. | 76029401 | [1] | BRACKET | LEC |
| 13. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 14. | 16043831 | [4] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | BHB Superseded by part number: |
| 15. | 14496631 | [10] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 16. | 79071496 | [6] | BLOCK | LEC |
| 17. | 14306431 | [16] | HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd | LEC |
| 18. | 76029389 | [2] | PLATE | LEC |
| 19. | 11106631 | [8] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 20. | 10119440 | [1] | PLUG,M18 x 1.5 x 16, Brass | LECAssy |
| 22. | 79110355 | [2] | SPACER | LEC |
| 21. | 14437985 | [1] | O-RING,15.3mm ID x 2.4mm | LEC |
