斗山零件查询ELECTRIC PARTS(2) SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
173 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1170
|
[-] |

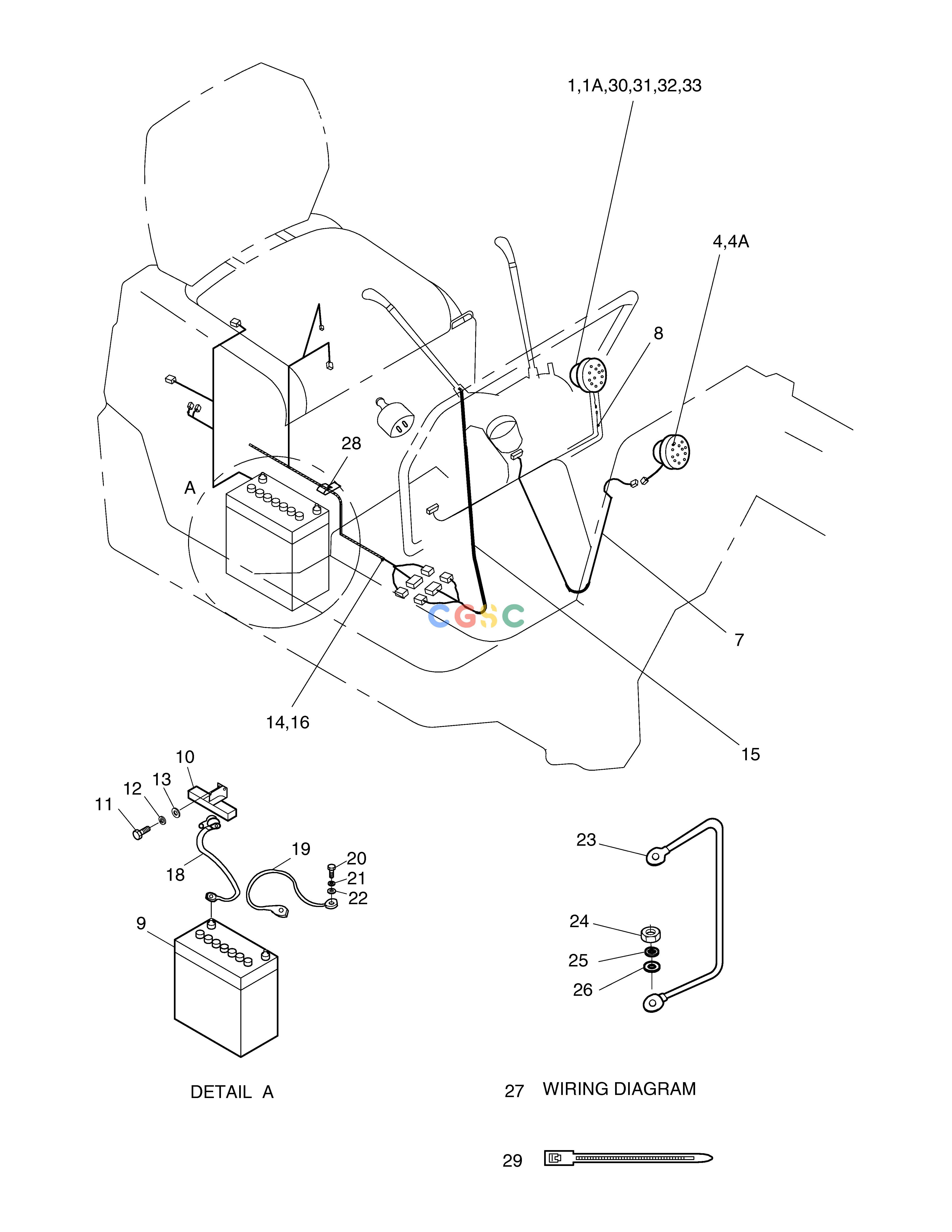

ELECTRIC PARTS(2)
|
|
| 1. |
2534-1131
|
[1] |
LAMP;HEAD
|
|
| 10. |
2195-3831
|
[1] |
BRACKET
|
|
| 11. |
S0508453
|
[2] |
BOLT
|
|
| 12. |
S5102503
|
[1] |
. WASHER
|
|
| 13. |
S5010513
|
[1] |
WASHER
|
|
| 14. |
2527-1020
|
[1] |
FUSIBLE LINK 0.5SQ 27A
|
|
| 15. |
2530-1452
|
[1] |
HARNESS;INSTRUMENT
|
|
| 16. |
2530-1650
|
[1] |
HARNESS;MAIN
|
|
| 18. |
2553-1279D1
|
[1] |
CABLE;STARTER-BATT
|
|
| 19. |
2553-1280D1
|
[1] |
CABLE;BATT-EARTH
|
|
| 1A. |
S864121H
|
[1] |
BULB 12V 21W
|
|
| 20. |
S0511853
|
[1] |
BOLT
|
|
| 21. |
S5102603
|
[1] |
. WASHER
|
|
| 22. |
S5010613
|
[1] |
WASHER
|
|
| 23. |
2553-1261D51
|
[1] |
CABLE;ENGINE-EARTH
|
|
| 24. |
S4012633
|
[1] |
NUT
|
|
| 25. |
S5102603
|
[1] |
. WASHER
|
|
| 26. |
S5010613
|
[1] |
WASHER
|
|
| 27. |
2599-1125
|
[1] |
WIRING DIAGRAM
|
|
| 28. |
2124-1353D15
|
[1] |
CLIP
|
|
| 29. |
2124-1084D2
|
[2] |
CLIP;BAND
|
|
| 30. |
2553-1278
|
[1] |
WIRE;HEAD LAMP EARTH
|
|
| 31. |
S3450843
|
[1] |
SCREW M5X0.8X14
|
|
| 32. |
S5100203
|
[1] |
WASHER
|
|
| 33. |
S5000203
|
[1] |
WASHER
|
|
| 4. |
2534-1131
|
[1] |
LAMP;HEAD
|
|
| 4A. |
S864121H
|
[1] |
BULB 12V 21W
|
|
| 7. |
2553-1281
|
[1] |
WIRE;WORKING LAMP
|
|
| 8. |
2553-1277
|
[1] |
WIRE;HEAD LAMP
|
|
| 9. |
2506-9010
|
[1] |
BATTERY
|
|
