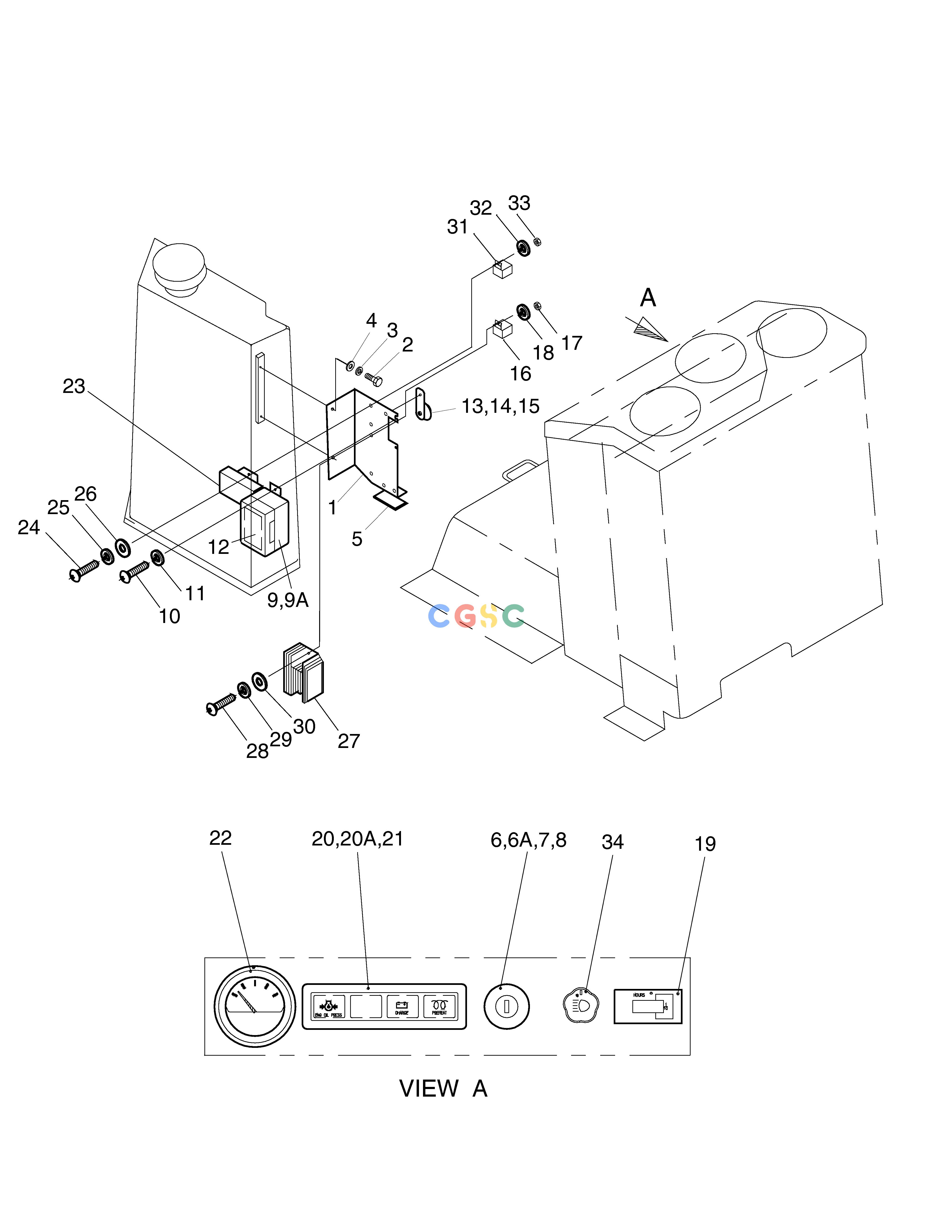

斗山零件查询ELECTRIC PARTS(1) SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1169
|
[-] |
ELECTRIC PARTS(1)
|
|
| 1. |
2621-2798A
|
[1] |
PANEL
|
|
| 10. |
S3450603
|
[1] |
SCREW M4X0.7X16
|
|
| 11. |
S5100103
|
[2] |
WASHER
|
|
| 12. |
2190-2163
|
[1] |
PLAE;NAME
|
|
| 13. |
1516-1519
|
[1] |
HORN
|
2516-1121
|
| 13. |
2516-1121
|
[1] |
HORN
|
|
| 14. |
S0508453
|
[1] |
BOLT
|
|
| 15. |
S5102503
|
[1] |
. WASHER
|
|
| 16. |
2544-9019
|
[1] |
RELAY;HORN
|
2544-9032
|
| 16. |
2544-9032
|
[1] |
RELAY
|
|
| 17. |
S4012233
|
[1] |
NUT
|
|
| 18. |
S5100203
|
[1] |
WASHER
|
|
| 19. |
2528-9040
|
[1] |
METER;HOUR
|
|
| 2. |
S0508453
|
[2] |
BOLT
|
|
| 20. |
5534-1125D3
|
[1] |
PILOT LAMP ASS'Y
|
|
| 20A. |
S862103H
|
[4] |
BULB 12V 3.4W
|
|
| 21. |
2161-1919
|
[1] |
RUBBER;GLOW
|
|
| 22. |
171010-77850
|
[1] |
GAUGE;WATER TEMP
|
|
| 23. |
119332-77810
|
[1] |
RESISTOR
|
|
| 24. |
S3450843
|
[2] |
SCREW M5X0.8X14
|
|
| 25. |
S5100203
|
[1] |
WASHER
|
|
| 26. |
S5000203
|
[1] |
WASHER
|
|
| 27. |
121520-77710
|
[1] |
LIMITER;CURRENT
|
|
| 28. |
S3450863
|
[2] |
SCREW
|
|
| 29. |
S5100203
|
[1] |
WASHER
|
|
| 3. |
S5102503
|
[2] |
. WASHER
|
|
| 30. |
S5000203
|
[1] |
WASHER
|
|
| 31. |
2544-9019
|
[1] |
RELAY;HORN
|
2544-9032
|
| 31. |
2544-9032
|
[1] |
RELAY
|
|
| 32. |
S5100203
|
[1] |
WASHER
|
|
| 33. |
S4012333
|
[1] |
NUT
|
|
| 34. |
2549-1132D1
|
[1] |
SWITCH;LAMP
|
|
| 4. |
S5010513
|
[2] |
WASHER
|
|
| 5. |
2512-1100
|
[1] |
RUBBER;CUSHION
|
|
| 6. |
2549-9100
|
[1] |
SWITCH;STARTER
|
|
| 6A. |
2172-1082
|
[1] |
KEY;STARTER SWITCH
|
|
| 7. |
2160-1218
|
[1] |
CAP
|
|
| 8. |
2190-1255
|
[1] |
PLATE;NAME
|
|
| 9. |
2512-1101
|
[1] |
BOX;FUSE
|
|
| 9A. |
2527-1016
|
[6] |
FUSE,BLADE 10A
|
|
