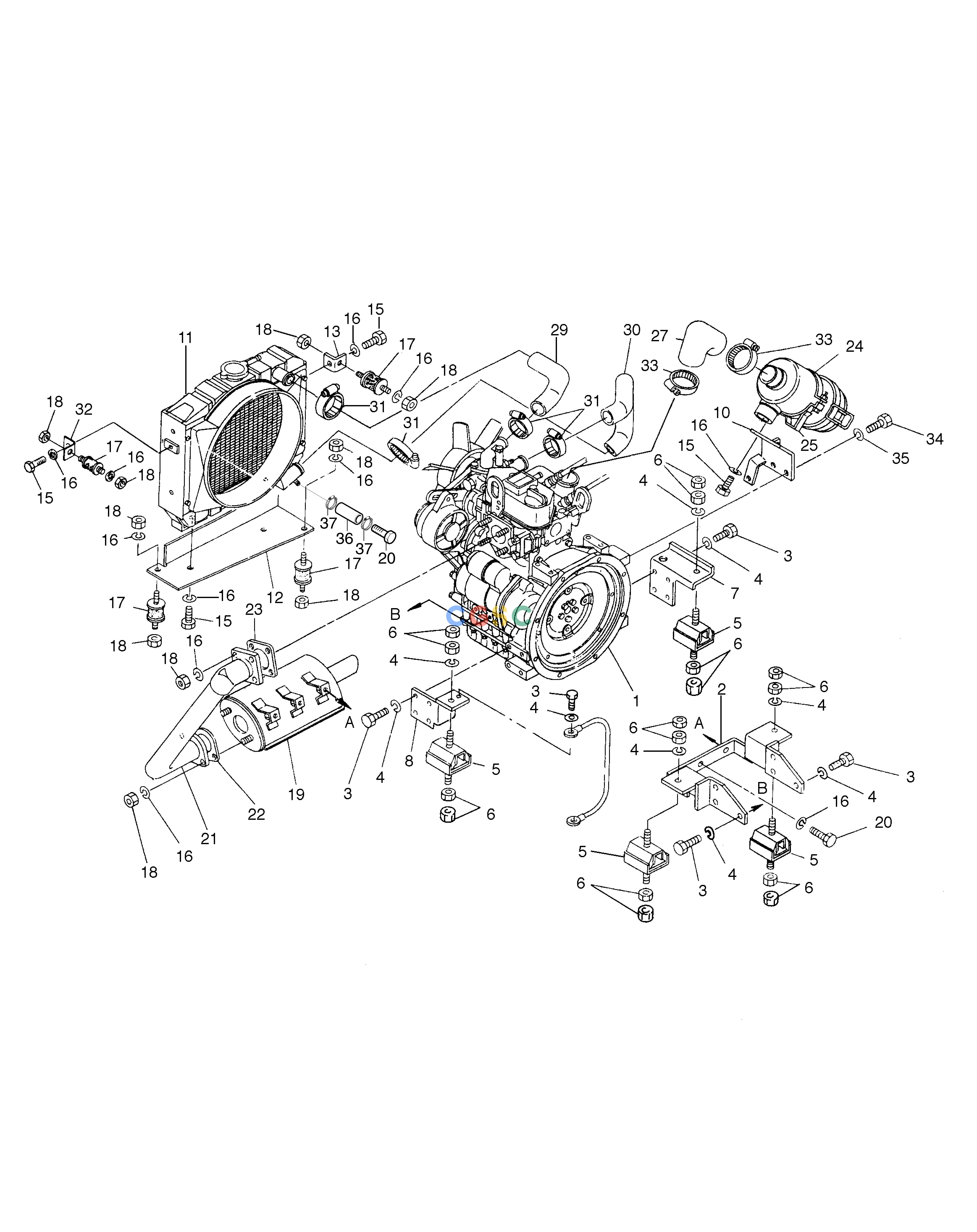

斗山零件查询ENGINE MOUNTING SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
151 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2201-1079
|
[-] |
ENGINE MOUNTING ASS'Y
|
|
| 1. |
2201-9062
|
[1] |
ENGINE
|
|
| 1. |
201-00037
|
[1] |
ENGINE(ONLY U.S.A.)
|
|
| 10. |
2195-3741A
|
[1] |
BRACKET
|
|
| 11. |
2202-9047
|
[1] |
RADIATOR(119332-44501)
|
|
| 12. |
2412-1037
|
[1] |
BRACKET
|
|
| 13. |
2195-3776A
|
[1] |
BRACKET
|
|
| 15. |
S0508653
|
[6] |
BOLT
|
|
| 16. |
S5102503
|
[23] |
. WASHER
|
|
| 17. |
2161-1223A
|
[4] |
RUBBER;MOUNTING
|
|
| 18. |
S4012533
|
[14] |
NUT
|
|
| 19. |
2203-9009
|
[1] |
MUFFLER
|
|
| 2. |
2195-3738
|
[1] |
BRACKET
|
|
| 20. |
S0508853
|
[4] |
. BOLT
|
|
| 21. |
2193-1282A
|
[1] |
PIPE;EXHAUST
|
|
| 21. |
2193-1282B
|
[1] |
PIPE;EXHAUST
|
|
| 22. |
2180-1201
|
[1] |
GASKET
|
|
| 23. |
2180-1202
|
[1] |
GASKET
|
|
| 24. |
2204-9030
|
[1] |
CLEANER;AIR
|
|
| 25. |
2124-1517
|
[1] |
BAND;AIR CLEANER
|
|
| 27. |
2184-1240
|
[1] |
HOSE;AIR CLEANER
|
|
| 29. |
2184-1239
|
[1] |
HOSE;WATER
|
|
| 3. |
S0511853
|
[14] |
BOLT
|
|
| 30. |
2184-1238
|
[1] |
HOSE;WATER
|
|
| 31. |
S8450023
|
[4] |
CLAMP
|
|
| 32. |
2195-3778
|
[1] |
BRACKET
|
|
| 33. |
S8450044
|
[2] |
CLAMP;HOSE
|
|
| 34. |
S0508853
|
[2] |
. BOLT
|
|
| 35. |
S5102503
|
[2] |
. WASHER
|
|
| 36. |
2185-1247D35
|
[1] |
HOSE;DRAIN
|
|
| 37. |
S8450006
|
[2] |
CLAMP
|
|
| 4. |
S5102603
|
[22] |
. WASHER
|
|
| 5. |
2161-9042
|
[4] |
RUBBER;MOUNTING
|
|
| 6. |
S4012633
|
[16] |
NUT
|
|
| 7. |
2195-3739A
|
[1] |
BRACKET
|
|
| 8. |
2195-3740A
|
[1] |
BRACKET
|
|
