| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

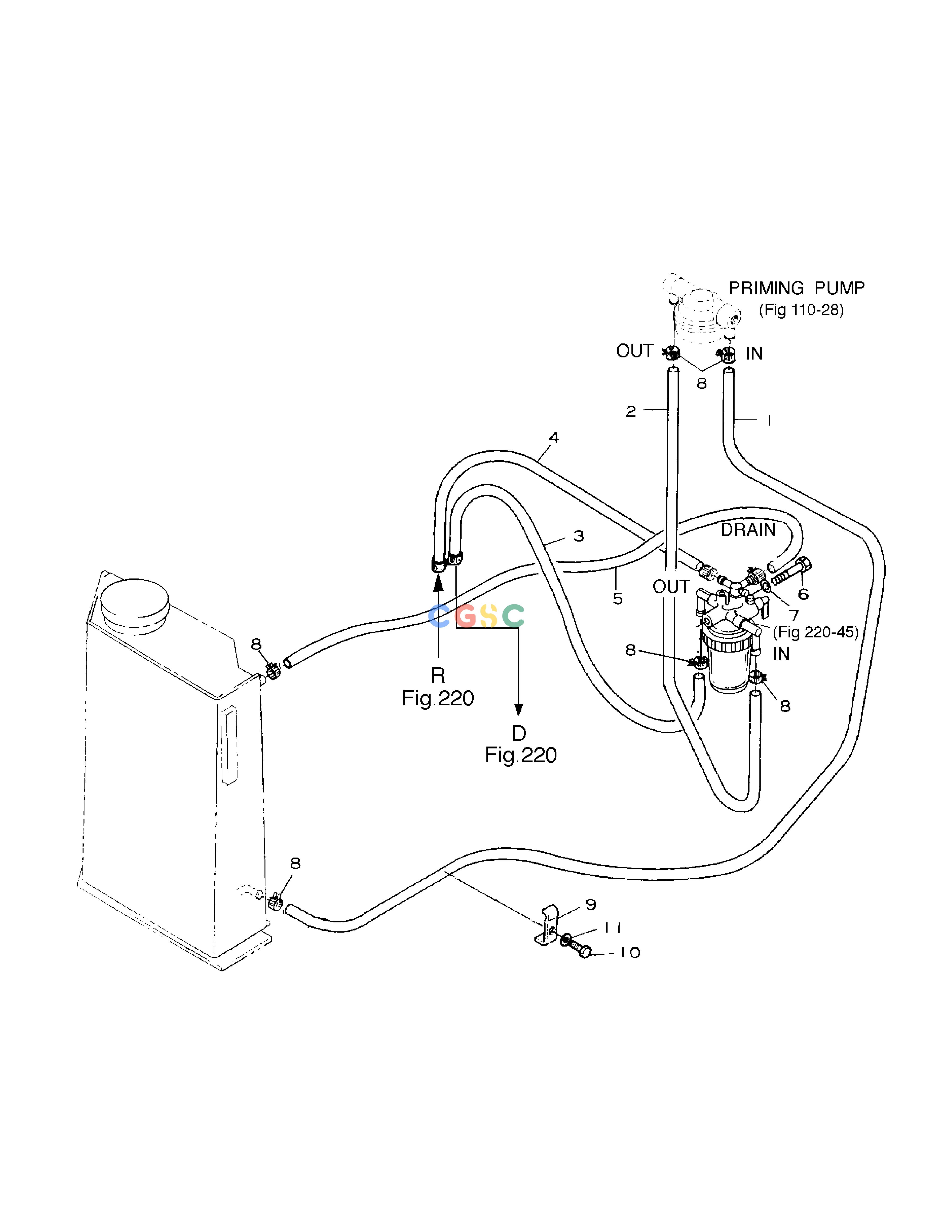

2400-1610
|
[-] |
FUEL PIPING ASS'Y
|
|
| 1. |
2185-1247D96
|
[1] |
HOSE 970L
|
|
| 10. |
S0504353
|
[1] |
BOLT M6X1.0X10
|
|
| 11. |
S5102603
|
[1] |
. WASHER
|
|
| 2. |
2185-1247D98
|
[1] |
HOSE D7.14-D13.49-500L
|
|
| 3. |
2185-1247D99
|
[1] |
HOSE D7.14-D13.49-600L
|
|
| 4. |
2185-1247D100
|
[1] |
HOSE 650L
|
|
| 5. |
2185-1247D97
|
[1] |
HOSE 850L
|
|
| 6. |
S0556653
|
[1] |
BOLT M8X1.25X65
|
|
| 7. |
S5102503
|
[1] |
. WASHER
|
|
| 8. |
S8450006
|
[10] |
CLAMP
|
|
| 9. |
2124-1027D18
|
[1] |
CLAMP;PIPE
|
|
