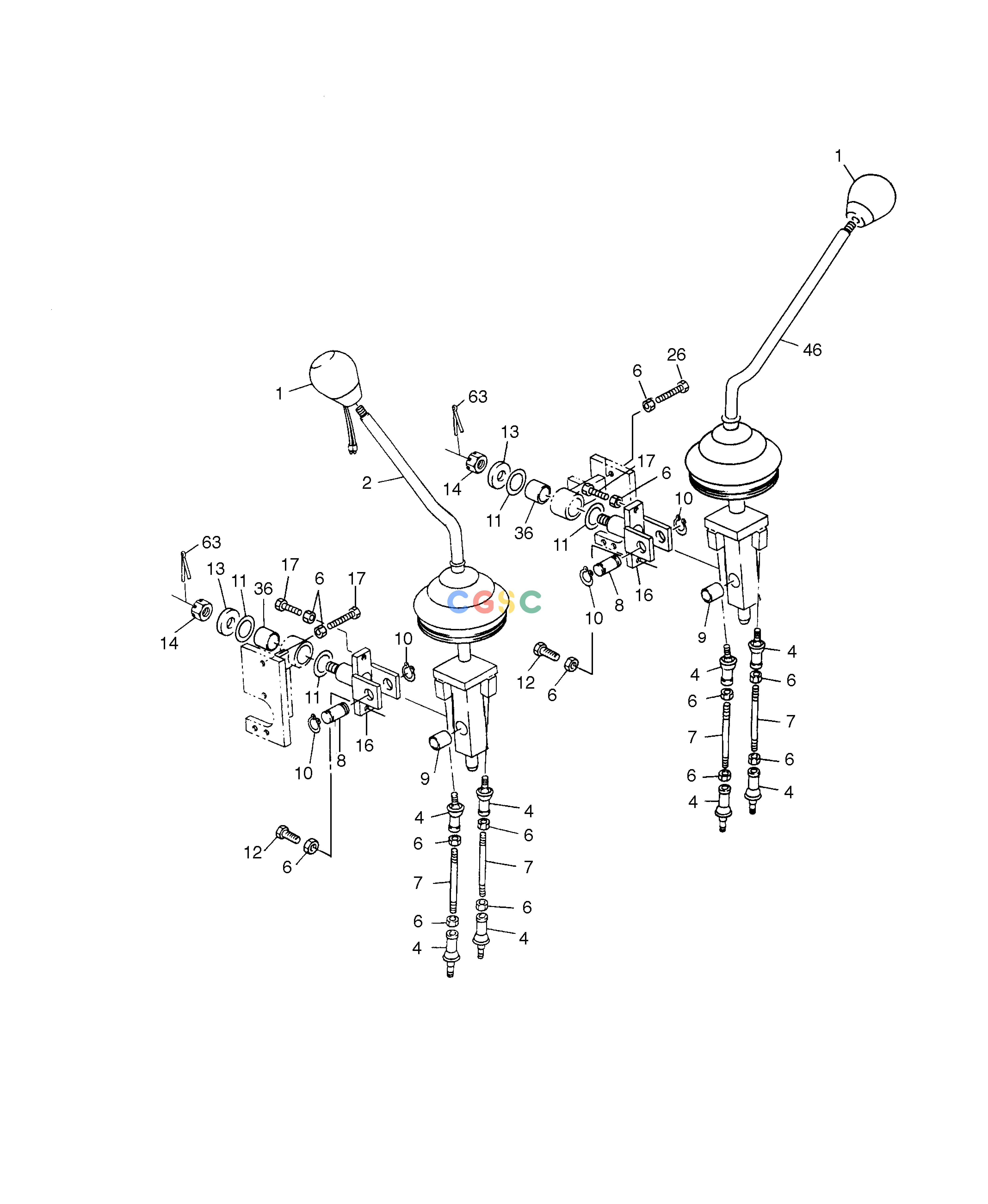

斗山零件查询LEVER ASS'Y(1) SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
990 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-1910
|
[-] |
LEVER ASS'Y
|
|
| 1. |
2516-1109
|
[2] |
HORN ASS'Y
|
|
| 10. |
S6500150
|
[4] |
RING;SNAP
|
|
| 11. |
2114-1678A
|
[4] |
WASHER
|
|
| 12. |
S2205061
|
[2] |
BOLT;SOCKET M6X1.0X25
|
|
| 13. |
2114-1058D33
|
[2] |
WASHER
|
|
| 14. |
S4214603
|
[2] |
NUT;CASTLE M10X1.5
|
|
| 16. |
2137-1169
|
[2] |
LINK
|
|
| 17. |
S0505053
|
[4] |
BOLT
|
|
| 2. |
2133-1907B
|
[1] |
LEVER;OPERATION
|
2133-1907C
|
| 2. |
2133-1907C
|
[1] |
LEVER;OPERATION
|
|
| 26. |
S0504853
|
[1] |
BOLT M6X1.0X20
|
|
| 36. |
2110-1184D15
|
[2] |
BUSH
|
|
| 4. |
2138-9012
|
[8] |
JOINT;BALL
|
|
| 46. |
2133-1908B
|
[1] |
LEVER;OPERATION
|
2133-1908C
|
| 46. |
2133-1908C
|
[1] |
LEVER;OPERATION
|
|
| 6. |
S4012333
|
[14] |
NUT
|
|
| 63. |
S5735370
|
[2] |
PIN;SPLIT
|
|
| 7. |
2120-1477
|
[4] |
BOLT;STUD M6X1.0
|
|
| 8. |
2123-1865
|
[2] |
PIN
|
|
| 9. |
2110-1184D22
|
[2] |
BUSH;DU
|
|
