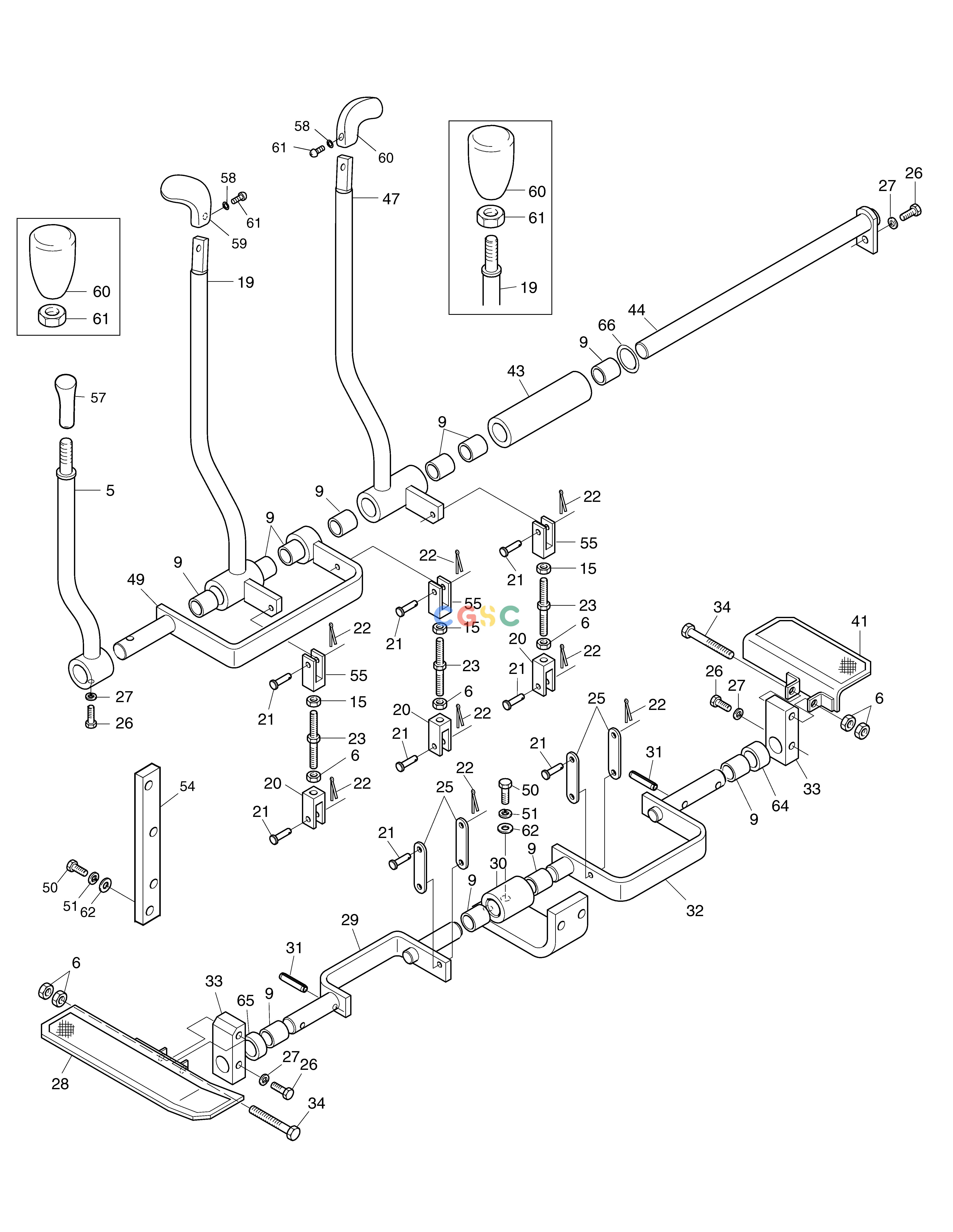

斗山零件查询LEVER ASS'Y(2) SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-1910
|
[-] |
LEVER ASS'Y
|
|
| 15. |
2121-1294
|
[3] |
NUT M6X1.0
|
|
| 19. |
2133-1904A
|
[1] |
LEVER;TRAVEL(R.H.)
|
|
| 19. |
2133-1904B
|
[1] |
LEVER;TRAVEL(R.H.)
|
|
| 20. |
2135-1019
|
[3] |
YOKE
|
|
| 21. |
2123-1863
|
[10] |
PIN
|
|
| 22. |
S5735081
|
[10] |
PIN;SPLIT
|
|
| 23. |
2136-1395
|
[3] |
ROD
|
|
| 25. |
2137-1160
|
[4] |
LINK
|
|
| 26. |
S0504853
|
[4] |
BOLT M6X1.0X20
|
|
| 26. |
S0504853
|
[3] |
BOLT M6X1.0X20
|
|
| 27. |
S5102303
|
[6] |
. WASHER
|
|
| 27. |
S5102303
|
[5] |
. WASHER
|
|
| 28. |
2134-1128A
|
[1] |
PEDAL;BOOM SWING
|
|
| 28. |
2134-1128B
|
[1] |
PEDAL;BOOM SWING
|
2134-1128C
|
| 28. |
2134-1128C
|
[1] |
PEDAL;BOOM SWING
|
|
| 29. |
2137-1166
|
[1] |
LINK;SWING
|
2137-1166A
|
| 29. |
2137-1166A
|
[1] |
LINK;SWING
|
|
| 30. |
2237-1057
|
[1] |
BOSS
|
|
| 31. |
S5750970
|
[2] |
PIN;SPRING
|
|
| 32. |
2137-1167
|
[1] |
LINK;AUX
|
|
| 33. |
2215-1020
|
[2] |
YOKE;PEDAL
|
|
| 34. |
S0505453
|
[2] |
BOLT M6X1.0X40
|
|
| 41. |
2134-1129A
|
[1] |
PEDAL;AUX
|
|
| 41. |
2134-1129B
|
[1] |
PEDAL;AUX
|
|
| 43. |
2237-1056A
|
[1] |
BOSS
|
|
| 44. |
2133-1906B
|
[1] |
SHAFT
|
|
| 44. |
2133-1906C
|
[1] |
SHAFT
|
|
| 47. |
2133-1902B
|
[1] |
LEVER;TRAVEL(L.H.)
|
|
| 47. |
2133-1902C
|
[1] |
LEVER;TRAVEL(L.H.)
|
|
| 47. |
2133-1902E
|
[1] |
LEVER;TRAVEL(L.H.)
|
|
| 49. |
2137-1168
|
[1] |
LINK;BLADE
|
|
| 49. |
2137-1168A
|
[1] |
LINK;BLADE
|
2137-1168B
|
| 49. |
2137-1168B
|
[1] |
LINK;BLADE
|
|
| 5. |
2133-1905A
|
[1] |
LEVER;BLADE
|
|
| 5. |
2133-1905B
|
[1] |
LEVER;BLADE
|
2133-1905C
|
| 5. |
2133-1905C
|
[1] |
LEVER;BLADE
|
|
| 5. |
2133-1905E
|
[1] |
LEVER;BLADE
|
|
| 50. |
S0508853
|
[10] |
. BOLT
|
|
| 51. |
S5102503
|
[10] |
. WASHER
|
|
| 54. |
2412-1038
|
[2] |
PLATE
|
2412-1038A
|
| 54. |
2412-1038A
|
[2] |
PLATE
|
|
| 55. |
2135-1127
|
[3] |
YOKE
|
|
| 57. |
2132-1141A
|
[1] |
KNOB
|
|
| 58. |
S5000113
|
[2] |
WASHER
|
|
| 59. |
2132-1134B
|
[1] |
GRIP,LEVER(R.H)
|
|
| 6. |
S4012333
|
[7] |
NUT
|
|
| 60. |
2132-1133B
|
[1] |
GRIP,LEVER(L.H)
|
|
| 60. |
2132-1100
|
[3] |
GRIP (L.H)
|
|
| 61. |
S4032603
|
[3] |
NUT M10X1.25
|
|
| 61. |
S2201766
|
[2] |
BOLT
|
|
| 62. |
S5010513
|
[10] |
WASHER
|
|
| 64. |
2114-1707
|
[1] |
SPACER
|
|
| 65. |
2114-1708
|
[1] |
SPACER
|
|
| 66. |
2114-1058D26
|
[2] |
WASHER
|
|
| 9. |
2110-1184D22
|
[11] |
BUSH;DU
|
|
