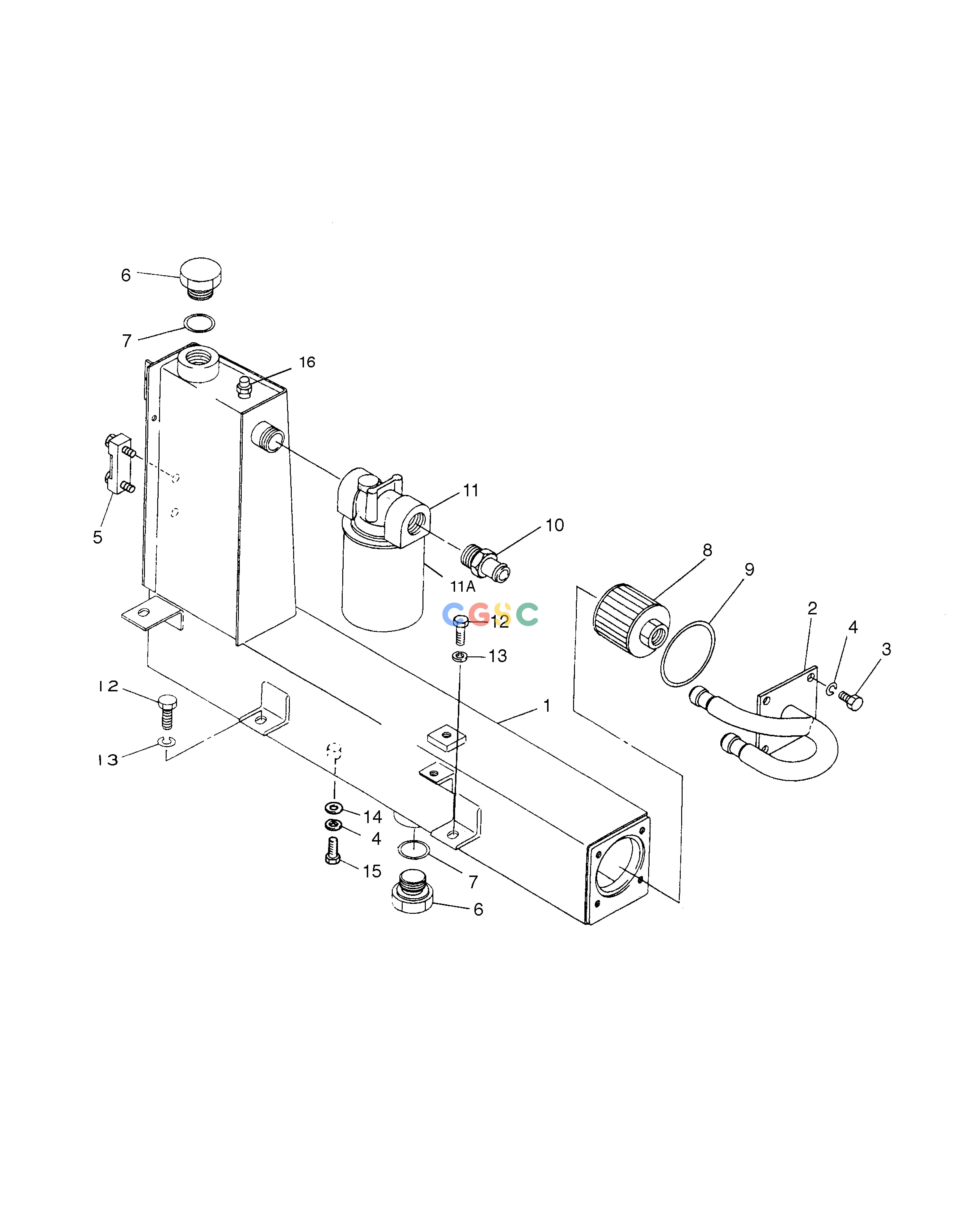

斗山零件查询OIL TANK SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2470-1134
|
[-] |
OIL TANK ASS'Y
|
|
| 1. |
2470-1135B
|
[1] |
TANK;OIL
|
|
| 1. |
2470-1135E
|
[1] |
TANK;OIL
|
|
| 1. |
2470-1135G
|
[1] |
TANK;OIL
|
|
| 10. |
2181-2387
|
[1] |
ADAPTER NPTF3/4
|
|
| 11. |
2471-9034A
|
[1] |
FILTER;RETURN
|
|
| 11A. |
2471-6041
|
[1] |
FILTER;RETURN
|
|
| 12. |
S0511653
|
[2] |
BOLT
|
|
| 13. |
S5102603
|
[2] |
. WASHER
|
|
| 14. |
S5010613
|
[2] |
WASHER
|
|
| 15. |
S0508653
|
[1] |
BOLT
|
|
| 16. |
100019
|
[1] |
BREATHER;AIR
|
|
| 2. |
2181-2386A
|
[1] |
FLANGE
|
|
| 2. |
2181-2386B
|
[1] |
FLANGE
|
|
| 3. |
S0508553
|
[4] |
BOLT
|
|
| 4. |
S5102503
|
[5] |
. WASHER
|
|
| 5. |
2119-1010
|
[1] |
GAUGE;LEVEL
|
|
| 6. |
2181-2388
|
[2] |
PLUG PF1
|
|
| 7. |
S8000291
|
[2] |
O-RING
|
|
| 8. |
2471-9033
|
[1] |
STRAINER
|
|
| 9. |
S8000700
|
[1] |
O-RING
|
|
