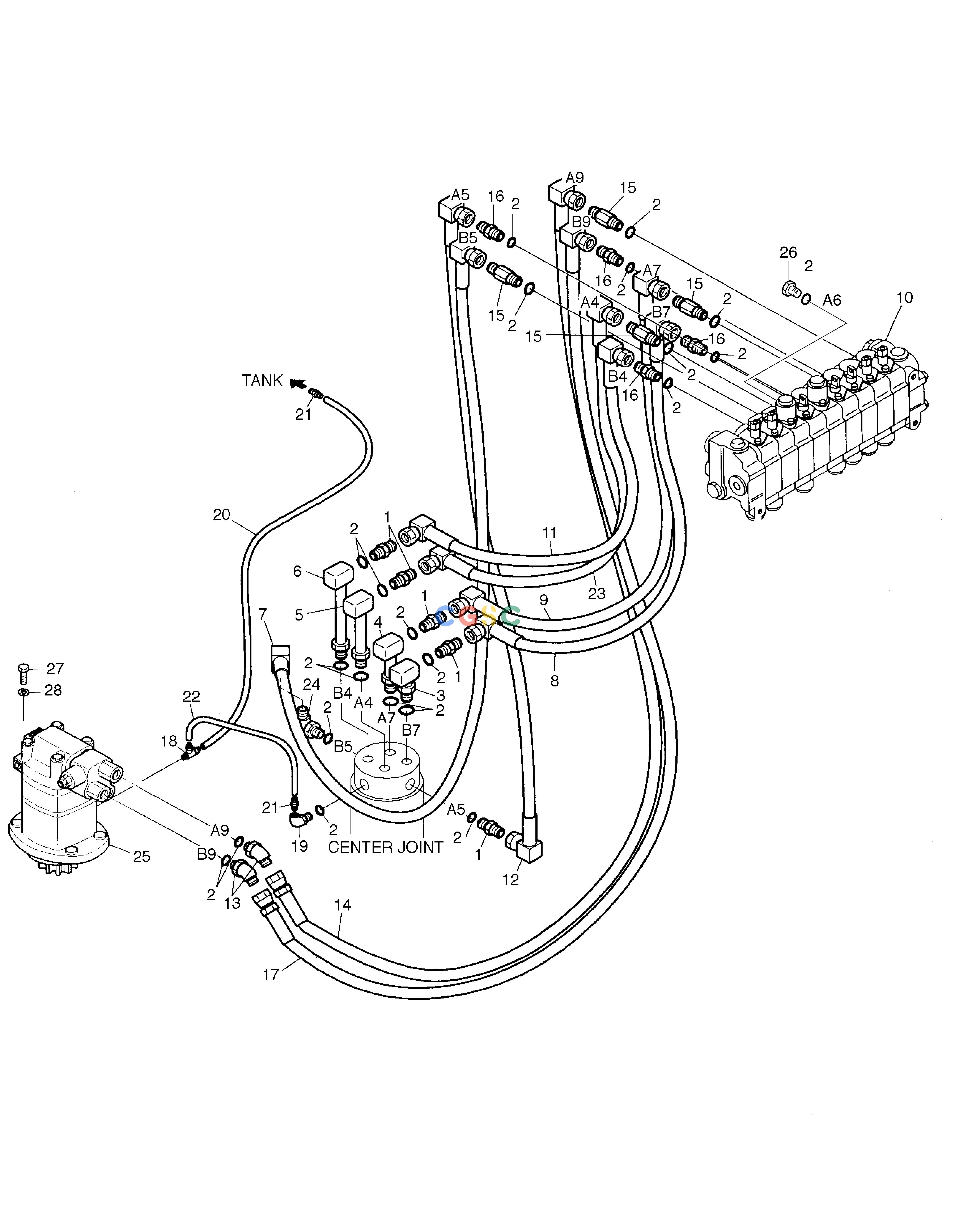

斗山零件查询MAIN PIPING SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
998 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1561
|
[-] |
MAIN PIPING ASS'Y
|
|
| 1. |
2181-1126D14
|
[5] |
ADAPTER
|
|
| 10. |
2401-9174
|
[1] |
CONTROL VALVE ASS'Y
|
|
| 11. |
2184-1129D17
|
[1] |
HOSE;B4 PF1/4-310L
|
|
| 12. |
2184-1129D18
|
[1] |
HOSE;A5 PF1/4-280L
|
|
| 13. |
2181-2430D1
|
[2] |
ELBOW
|
|
| 14. |
2184-1052D41
|
[1] |
HOSE;B9 PF1/4-360L
|
|
| 15. |
2181-2397
|
[4] |
ADAPTER;S PFO1/4-PF1/4
|
|
| 16. |
2181-2396
|
[4] |
ADAPTER PFO1/4-PF1/4
|
|
| 17. |
2184-1052D42
|
[1] |
HOSE;A9 PF1/4-450L
|
|
| 18. |
2181-9092
|
[1] |
TEE PT1/8
|
|
| 19. |
2181-1703D2
|
[1] |
ELBOW PFO1/4-PT1/4
|
|
| 2. |
S8000111
|
[18] |
O-RING
|
|
| 20. |
2185-1006D41
|
[1] |
TUBE 750L
|
|
| 21. |
2181-9093
|
[2] |
ADAPTER PT1/4
|
|
| 22. |
2185-1006D42
|
[1] |
TUBE 200L
|
|
| 23. |
2184-1129D15
|
[1] |
HOSE;A7 FP1/4-180L
|
|
| 24. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 25. |
2401-9169
|
[1] |
MOTOR;SWING
|
|
| 26. |
2181-1950D1
|
[1] |
PLUG
|
|
| 27. |
S0512353
|
[4] |
BOLT M10X1.5X35
|
|
| 28. |
S5102603
|
[4] |
. WASHER
|
|
| 3. |
2181-2295D8
|
[1] |
ELBOW PFO1/4-PF1/4
|
|
| 4. |
2181-2295D9
|
[1] |
ELBOW PFO1/4-PF1/4
|
|
| 5. |
2181-2295D10
|
[1] |
ELBOW PFO1/4-PF1/4
|
|
| 6. |
2181-2295D11
|
[1] |
ELBOW PFO1/4-PF1/4
|
|
| 7. |
2184-1129D14
|
[1] |
HOSE;B5 PF1/4-360L
|
|
| 8. |
2184-1129D10
|
[1] |
HOSE;B7 PF1/4-600L
|
DS2064020
|
| 8. |
DS2064020
|
[1] |
HOSE;B7 PF1/4-400L
|
|
| 9. |
2184-1129D16
|
[1] |
HOSE;A4 PF1/4-260L
|
|
