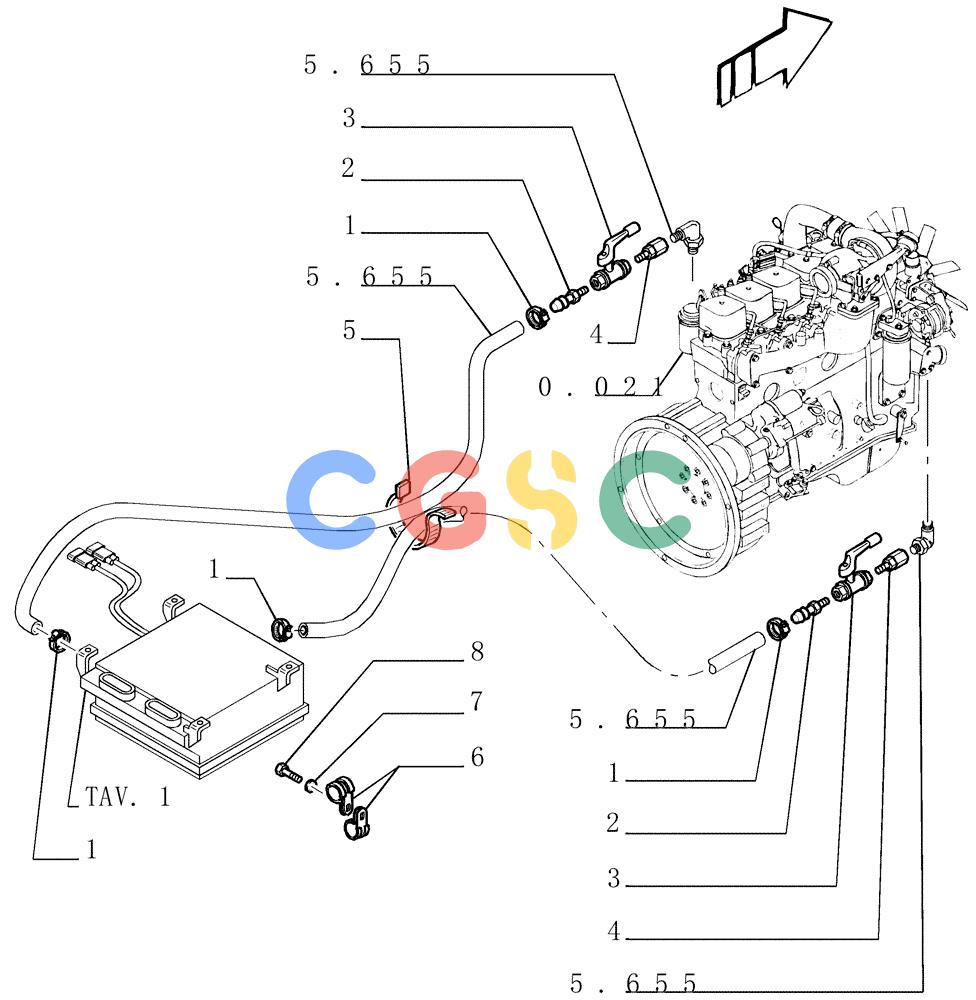

纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.665[02]) - AIR CONDITIONING - PIPING - OPTIONAL CODE 76048477 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
345 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79083842 | [4] | HOSE CLAMP,M16-27 | LEC Superseded by part number: 18088392 |
| 2. | 76033090 | [2] | HYD CONNECTOR | LEC |
| 3. | 79044182 | [2] | DRAINCOCK/TAP SUPPLY | LEC |
| 4. | 79098222 | [1] | HYD CONNECTOR | LEC |
| 5. | 4982514 | [3] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 6. | 10448890 | [2] | CLAMP,36mm, Coat, P Type | LEC36 Superseded by part number: |
| 7. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 8. | 16043131 | [1] | BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd | LEC |
