纽荷兰零件查询(FD145) - CRAWLER DOZER (N.A. VERSION) (10/98-) (9.665[03]) - AIR CONDITIONING - PIPING - OPTIONAL CODE 76048477 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
145 次

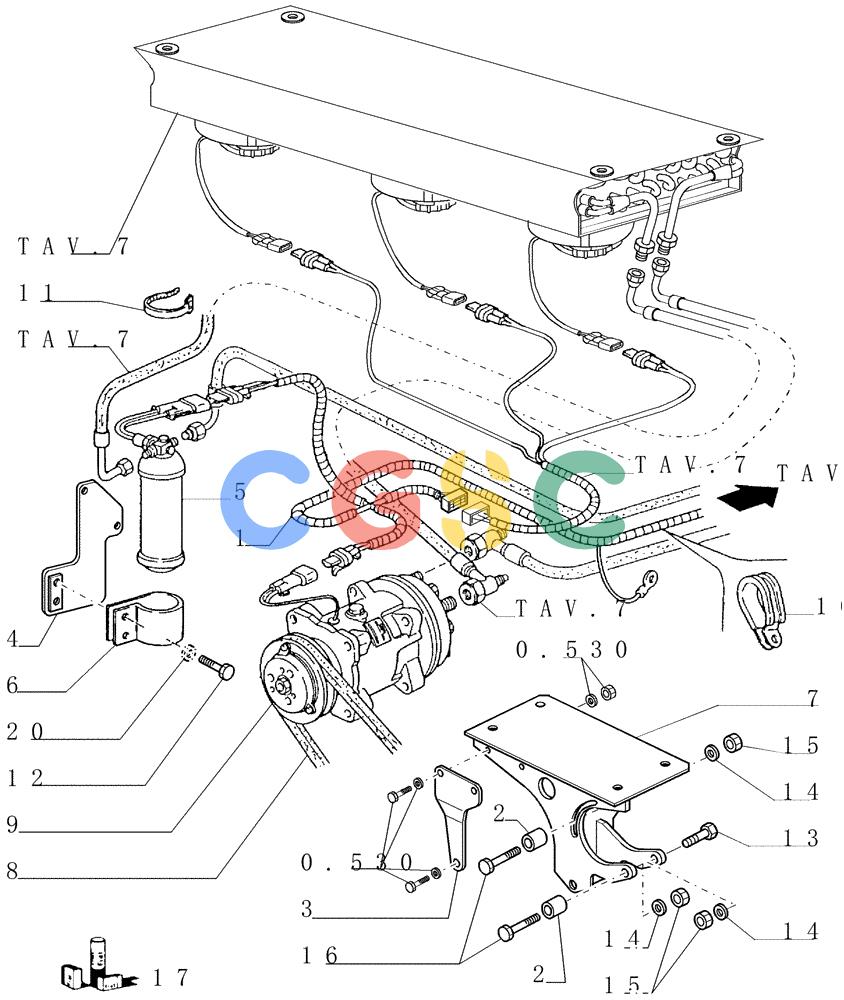

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76052509 | [1] | ELECTRIC CABLE | LEC- AIR CONDITIONING |
| 2. | 76052578 | [2] | HUB | LEC |
| 3. | 76052579 | [1] | BRACKET | LEC |
| 4. | 76052501 | [1] | BRACKET | LEC |
| 5. | 76035687 | [1] | RECEIVER-DRIER | LEC- ASSY SEE TAV.6 |
| 6. | 79092065 | [1] | BRACKET | LEC |
| 7. | 76052507 | [1] | SUPPORT | LEC |
| 8. | 76053579 | [1] | BELT,12.50 mm W x 1075.00 mm L | LEC |
| 9. | 76034858 | [1] | AIR COMPRESSOR | LEC- ASSY SEE TAV.9 Superseded by part number: 76047005 |
| . . | 76047005R | [1] | REMAN-COMPRESSOR | LECFD145 (10/98-), Reman for New P/N 76034858 |
| . . | 76047005C | [1] | CORE-COMPRESSOR | LECReturn Number |
| 10. | 10448890 | [2] | CLAMP,36mm, Coat, P Type | LEC36 Superseded by part number: |
| 11. | 4982514 | [3] | CABLE TIE | LEC370 Superseded by part number: 87615202 |
| 12. | 16043631 | [2] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 13. | 11106631 | [1] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 14. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 15. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 16. | 11107231 | [2] | SCREW,Hex, M10 x 50mm, Cl 10.9 | LEC Superseded by part number: 75205092, 43249 |
| 17. | 76052525 | [1] | KIT | NH- CONDITIONING |
