斗山零件查询FRONT SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
250 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

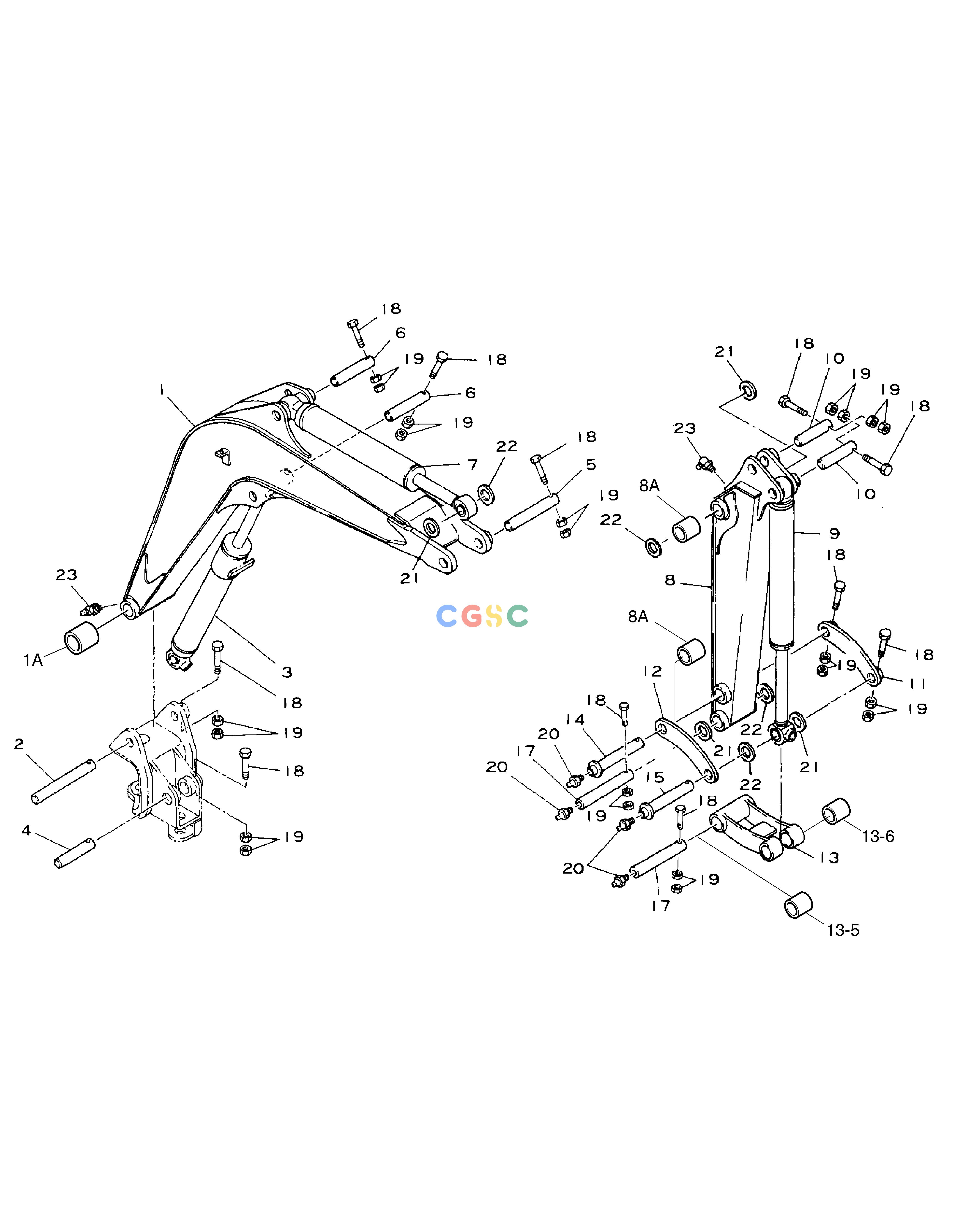

2700-1039
|
[-] |
FRONT ASS'Y
|
|
| 1. |
2701-1221J
|
[1] |
BOOM-1.345M
|
2701-1221K
|
| 1. |
2701-1221K
|
[1] |
BOOM-1.345M
|
|
| 1. |
2701-1221C
|
[1] |
BOOM-1,345m
|
2701-1221E
|
| 1. |
2701-1221E
|
[1] |
BOOM-1.345m
|
|
| 1. |
2701-1221H
|
[1] |
BOOM-1.345M
|
2701-1221J
|
| 10. |
2123-1853
|
[2] |
PIN 5
|
|
| 11. |
2155-1251B
|
[1] |
LINK;GUIDE(L.H.)
|
|
| 11. |
2155-1251C
|
[1] |
LINK;GUIDE(L.H.)
|
|
| 12. |
2155-1250B
|
[1] |
LINK;GUIDE(R.H.)
|
|
| 12. |
2155-1250C
|
[1] |
LINK;GUIDE(R.H.)
|
|
| 13. |
2155-1249C
|
[1] |
LINK;BUCKET
|
|
| 13. |
2155-1249E
|
[1] |
LINK;BUCKET
|
|
| 13-5. |
2110-1209A
|
[2] |
BUSH
|
|
| 13-6. |
2110-1212A
|
[2] |
BUSH
|
|
| 14. |
2123-1854
|
[1] |
PIN 6
|
|
| 15. |
2123-1855
|
[1] |
PIN 7
|
|
| 17. |
2123-1856
|
[2] |
PIN 8
|
|
| 18. |
S0556353
|
[11] |
BOLT M8X1.25X50
|
|
| 19. |
S4012533
|
[22] |
NUT
|
|
| 1A. |
2110-1209A
|
[2] |
BUSH
|
|
| 2. |
2123-1849
|
[1] |
PIN 1
|
|
| 20. |
S6710042
|
[3] |
NIPPLE;GREASE
|
|
| 21. |
2114-1059D204
|
[10] |
SHIM
|
|
| 22. |
2114-1059D205
|
[10] |
SHIM
|
|
| 23. |
S6710102
|
[2] |
NIPPLE;GREASE
|
|
| 3. |
2440-9172B
|
[1] |
BOOM CYLINDER
|
|
| 3. |
2440-9172C
|
[1] |
CYLINDER;BOOM
|
|
| 4. |
2123-1850
|
[1] |
PIN 2
|
|
| 5. |
2123-1851
|
[1] |
PIN 3
|
|
| 6. |
2123-1852
|
[2] |
PIN 4
|
|
| 7. |
2440-9173B
|
[1] |
ARM CYLINDER
|
|
| 7. |
2440-9173C
|
[1] |
CYLINDER;ARM
|
|
| 8. |
2701-1222C
|
[1] |
ARM-0.66m
|
|
| 8. |
2701-1222G
|
[1] |
ARM-0.66M
|
2701-1222H
|
| 8. |
2701-1222H
|
[1] |
ARM-0.66M
|
|
| 8A. |
2110-1209A
|
[6] |
BUSH
|
|
| 9. |
2440-9174B
|
[1] |
BUCKET CYLINDER
|
|
| 9. |
2440-9174C
|
[1] |
CYLINDER;BUCKET
|
|
