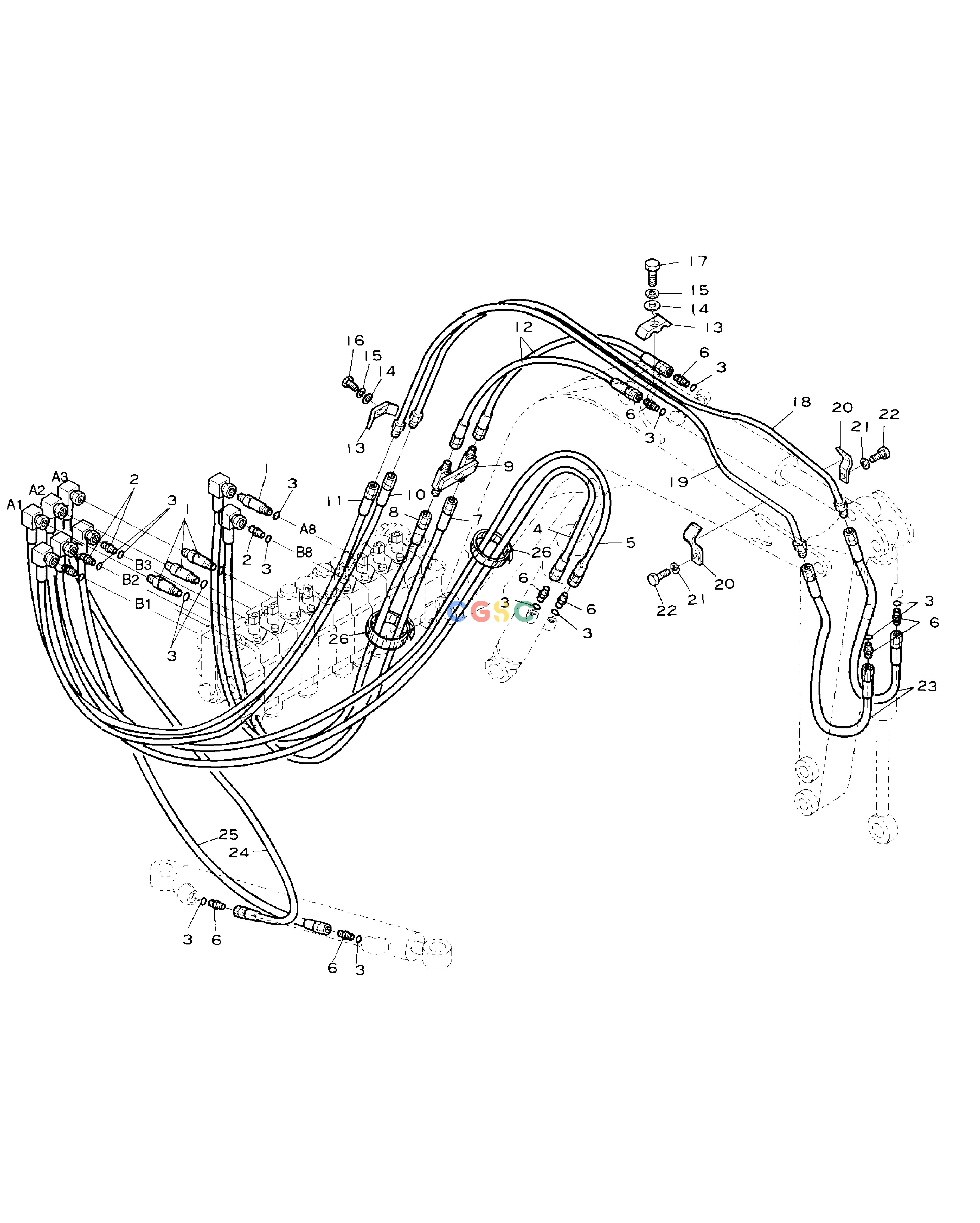

斗山零件查询FRONT PIPING SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
355 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1560
|
[-] |
FRONT PIPING ASS'Y
|
|
| 1. |
2181-2397
|
[4] |
ADAPTER;S PFO1/4-PF1/4
|
|
| 10. |
2184-1090D18
|
[1] |
HOSE;BOOM SWING PF1/4-950L
|
|
| 11. |
2184-1090D17
|
[1] |
HOSE PF1/4-850L
|
|
| 12. |
2184-1026D326
|
[2] |
HOSE PF1/4-610L
|
|
| 13. |
2124-1513A
|
[1] |
CLAMP
|
|
| 13. |
2124-1513B
|
[1] |
CLAMP
|
|
| 14. |
S5010513
|
[2] |
WASHER
|
|
| 15. |
S5102503
|
[2] |
. WASHER
|
|
| 16. |
S0556053
|
[1] |
BOLT M8X1.25X35
|
|
| 17. |
S0509153
|
[1] |
BOLT M8X1.25X28
|
|
| 18. |
2183-3831B
|
[1] |
PIPE;BUCKET CWD
|
|
| 18. |
2183-3831C
|
[1] |
PIPE;BUCKET CWD
|
|
| 19. |
2183-3832B
|
[1] |
PIPE;BUCKET DUMP
|
|
| 19. |
2183-3832C
|
[1] |
PIPE;BUCKET DUMP
|
|
| 2. |
2181-2396
|
[4] |
ADAPTER PFO1/4-PF1/4
|
|
| 20. |
2124-1512A
|
[2] |
CLAMP
|
|
| 20. |
2124-1512B
|
[2] |
CLAMP
|
|
| 21. |
S5102503
|
[2] |
. WASHER
|
|
| 22. |
S0508453
|
[2] |
BOLT
|
|
| 23. |
2184-1054D45
|
[2] |
HOSE PF1/4-550L
|
|
| 24. |
2184-1090D15
|
[1] |
HOSE;BOOM SWING PF1/4-520L
|
|
| 25. |
2184-1090D18
|
[1] |
HOSE;BOOM SWING PF1/4-950L
|
|
| 26. |
2124-1084D2
|
[4] |
CLIP;BAND
|
|
| 3. |
S8000110
|
[16] |
O-RING
|
|
| 4. |
2184-1090D21
|
[1] |
HOSE;BOOM UP PF1/4-1340L
|
|
| 5. |
2184-1090D22
|
[1] |
HOSE;BOOM DOWN PF1/4-1450L
|
|
| 6. |
2181-1126D14
|
[8] |
ADAPTER
|
|
| 7. |
2184-1090D20
|
[1] |
HOSE;ARM CWD PF1/4-1100L
|
|
| 8. |
2184-1090D19
|
[1] |
HOSE;ARM DUMP PF1/4-1010L
|
|
| 9. |
2181-2393
|
[1] |
JOINT
|
|
