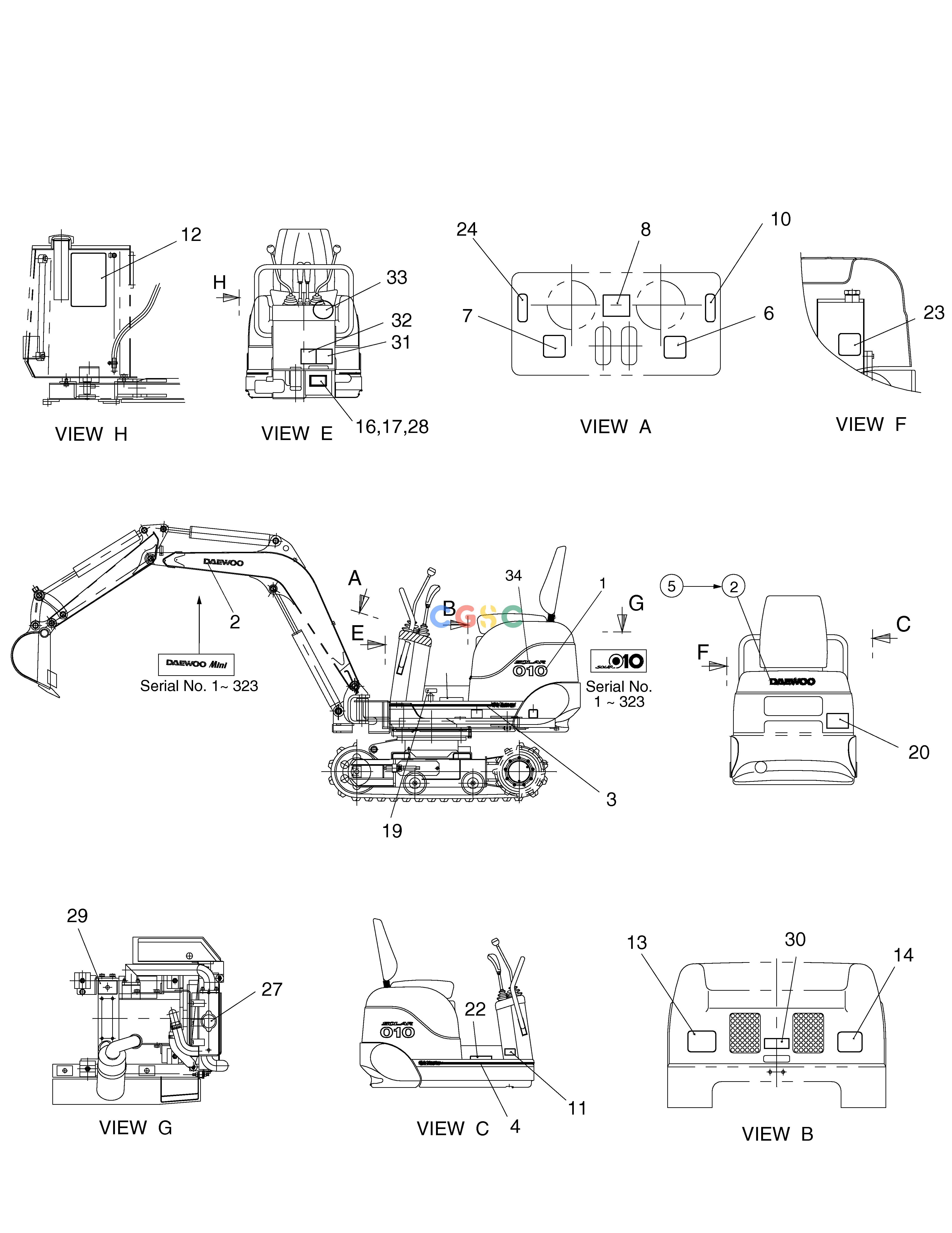

斗山零件查询NAME PLATE-ENGLISH SOLAR 010 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
584 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2190-3248
|
[-] |
LABEL ASS'Y
|
|
| 1. |
2190-3249
|
[2] |
NAME;PLATE
|
|
| 1. |
2190-3576
|
[2] |
NAME;PLATE
|
|
| 10. |
2190-2475
|
[1] |
PLATE;NAME
|
|
| 11. |
2190-2635
|
[1] |
PLATE;NAME(BOOM SWING)
|
|
| 12. |
2190-2634
|
[1] |
PLATE;NAME
|
|
| 13. |
2190-2627
|
[1] |
PLATE;NAME
|
|
| 14. |
2190-2556D67
|
[1] |
PLATE;NAME(SPEC.)
|
|
| 16. |
2190-2848
|
[1] |
PLATE;NAME(ONLY EUROPE)
|
|
| 17. |
2122-1002D1
|
[4] |
RIVET
|
2122-1002D2
|
| 17. |
2122-1002D2
|
[4] |
RIVET
|
|
| 19. |
2190-2638
|
[1] |
NAME;PLATE,SWING LOCK
|
|
| 2. |
2190-2747
|
[2] |
NAME;PLATE
|
|
| 2. |
2190-3385D10
|
[3] |
NAME;PLATE
|
|
| 20. |
2190-2631
|
[1] |
NAME;PLATE(KEEP OUT AREA)
|
|
| 22. |
2190-2314D1
|
[2] |
TAPE;ANTI-SKID
|
|
| 23. |
2190-2006
|
[1] |
LABEL(OIL LEVEL)
|
|
| 24. |
2190-2633
|
[1] |
PLATE;NAME
|
|
| 27. |
2190-2630
|
[1] |
NAME;PLATE(RADIATOR)
|
|
| 28. |
2190-2850
|
[1] |
PLATE;NAME
|
2190-2850A
|
| 28. |
2190-2850A
|
[1] |
PLATE;NAME(SERIAL)
|
|
| 29. |
2190-2626
|
[1] |
NAME;PLATE
|
|
| 3. |
2190-2433B
|
[1] |
NAME;PLATE
|
|
| 30. |
2190-2640
|
[1] |
NAME;PLATE(E/G COVER)
|
|
| 31. |
2190-3270D16
|
[1] |
NAME;PLATE(SOUND POWER)
|
|
| 32. |
2190-3271D16
|
[1] |
NAME;PLATE(SOUND PRESSURE)
|
|
| 32. |
2190-3271D27
|
[1] |
NAME;PLATE(SOUND PRESSURE)
|
|
| 33. |
2190-2549
|
[1] |
PLATE;NAME
|
|
| 34. |
2190-3575
|
[2] |
NAME;PLATE
|
|
| 4. |
2190-2434B
|
[1] |
NAME;PLATE
|
|
| 5. |
2190-2435B
|
[1] |
NAME;PLATE
|
|
| 6. |
2190-2628
|
[1] |
NAME;PLATE, JOYSTICK
|
|
| 7. |
2190-2629
|
[1] |
NAME;PLATE, JOYSTICK
|
|
| 8. |
2190-2637
|
[1] |
NAME;PLATE, TRAVEL
|
|
